Headlight Cleaner Motor and Relay Circuit
WIPER AND WASHER: WIPER AND WASHER SYSTEM: Headlight Cleaner Motor and Relay Circuit
Headlight Cleaner Motor and Relay Circuit
DESCRIPTION
This circuit provides power to the headlight cleaner control relay.
The headlight cleaner control relay sends the signal to operate from the switch, etc, to the headlight cleaner motor and pump assembly.

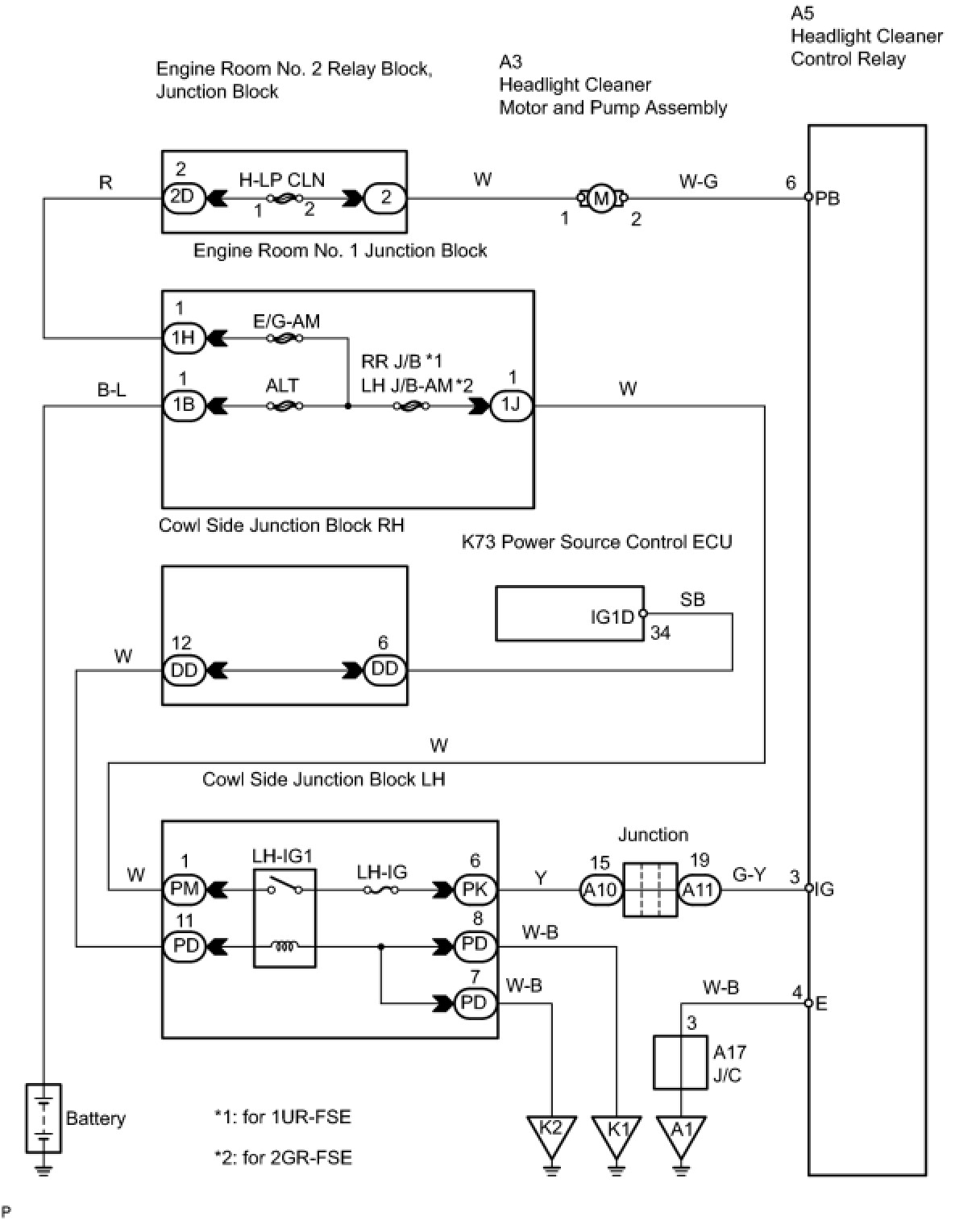

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK WIRE HARNESS (HEADLIGHT CLEANER CONTROL RELAY - BATTERY AND BODY GROUND)

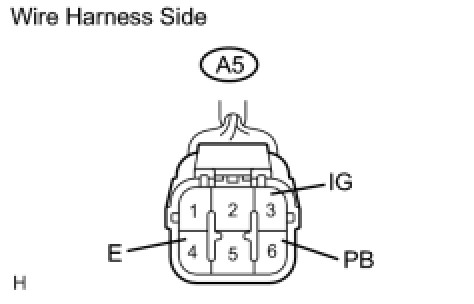

(a) Disconnect the A5 headlight cleaner relay connector.

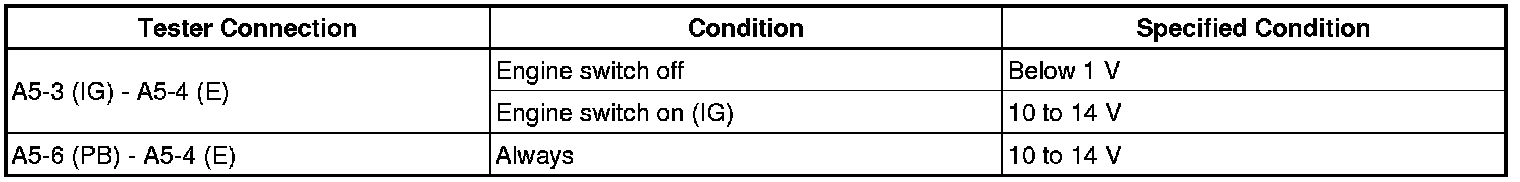

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
NG -- CHECK WIRE HARNESS (HEADLIGHT CLEANER CONTROL RELAY - BODY GROUND)
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

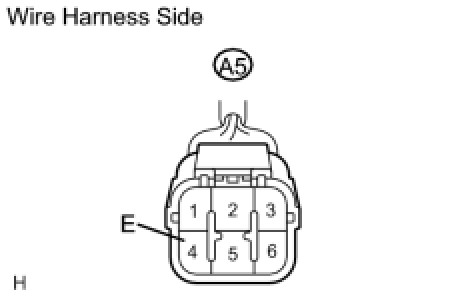

2. CHECK WIRE HARNESS (HEADLIGHT CLEANER CONTROL RELAY - BODY GROUND)
(a) Disconnect the A5 headlight cleaner relay connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

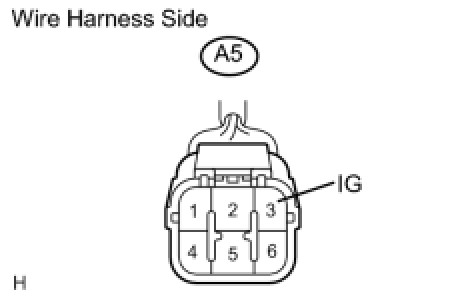

3. CHECK WIRE HARNESS (HEADLIGHT CLEANER CONTROL RELAY - BODY GROUND)
(a) Disconnect the A5 headlight cleaner relay connector.

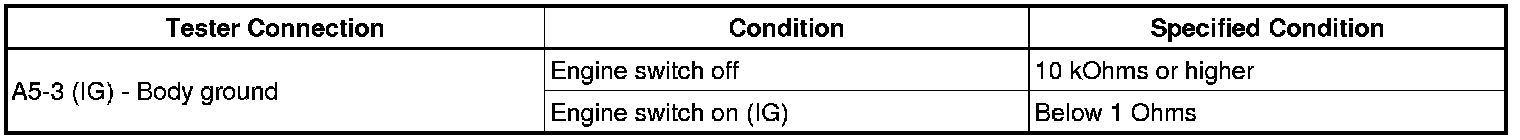

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
4. REPAIR OR REPLACE HARNESS AND CONNECTOR

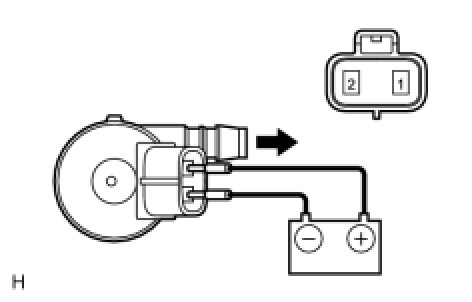

(a) Disconnect the connector from the headlight cleaner motor and pump assembly.
(b) Connect the positive (+) battery lead to terminal 1 of the headlight cleaner motor and pump assembly, and the negative (-) battery lead to terminal 2.
OK:
Operation sounds are heard.
NG -- REPLACE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY
OK -- Continue to next step.
5. CHECK WIRE HARNESS (HEADLIGHT CLEANER CONTROL RELAY - BODY GROUND)
(a) Disconnect the A5 headlight cleaner relay connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
