Lexus
>>
2008
>>
GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Shade
>>
Service and Repair
>>
Components
Components

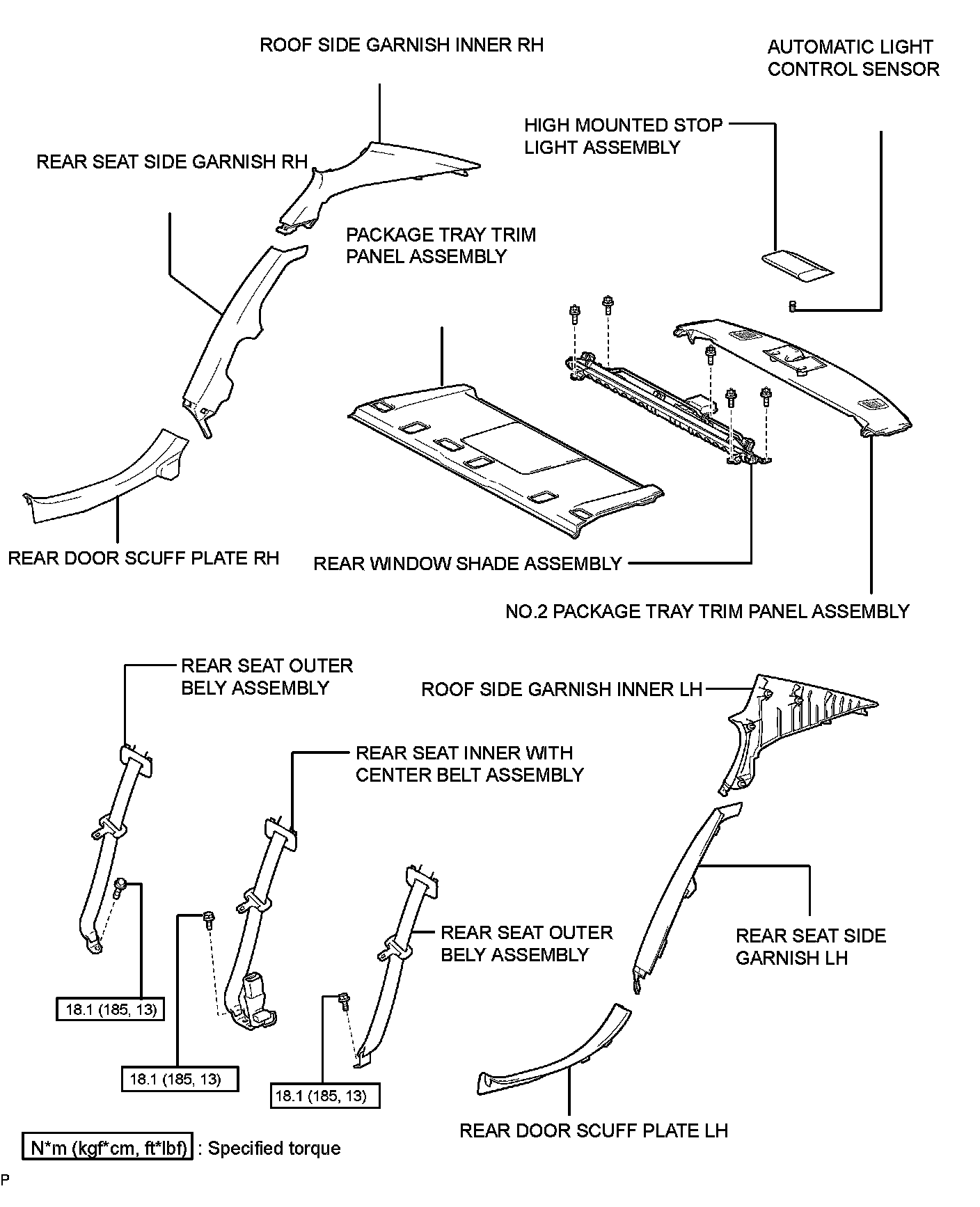

INTERIOR: REAR SUNSHADE ASSEMBLY: COMPONENTS
ILLUSTRATION
