Home
>>
Lexus
>>
2008
>>
GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Back Window Glass
>>
Service and Repair
>>
Components
Components
WINDSHIELD
/ WINDOWGLASS:

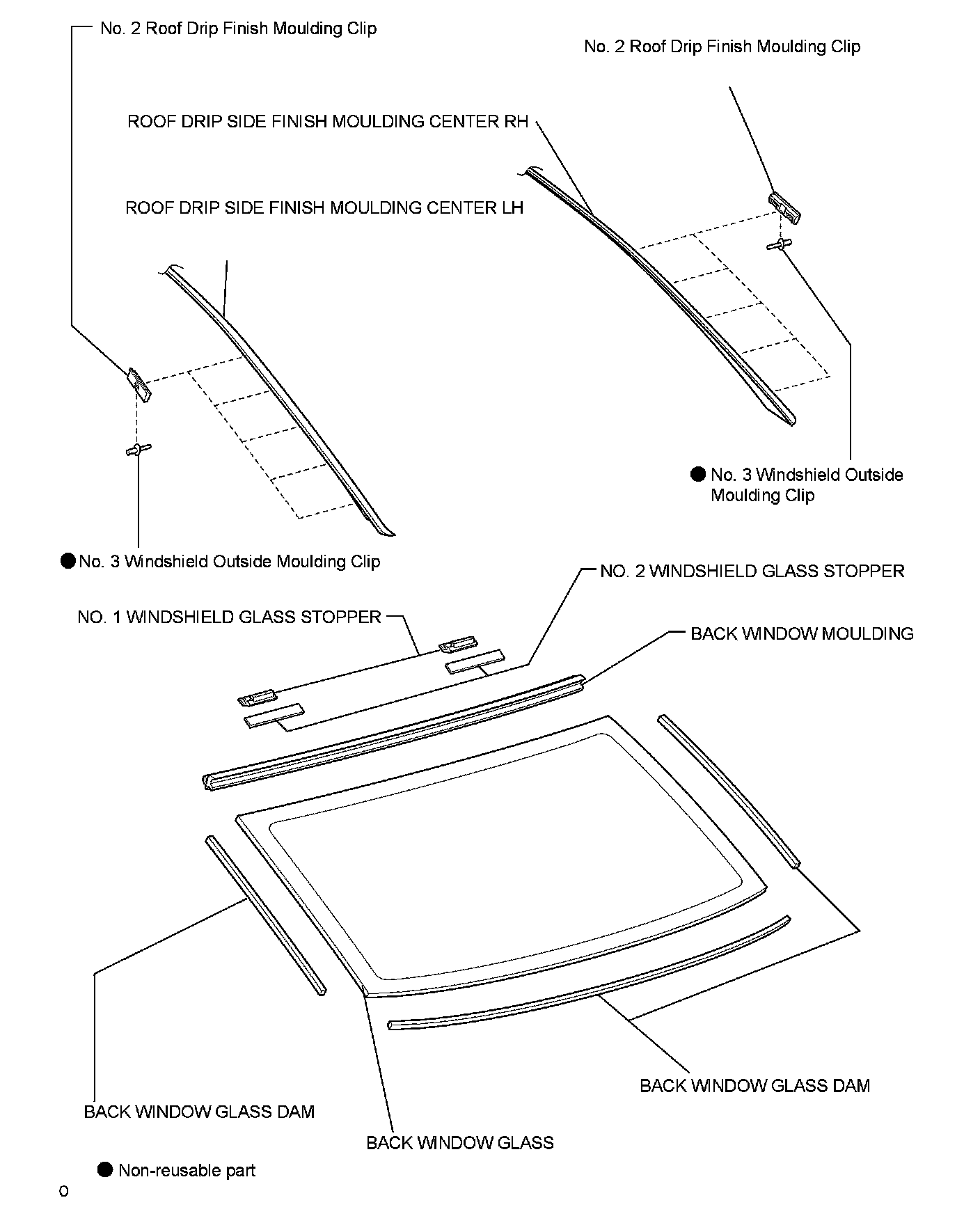

BACK WINDOW GLASS
: COMPONENTS
ILLUSTRATION
