Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH

Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH

DESCRIPTION

If the manual UP / DOWN function can be performed but the AUTO UP / DOWN function cannot, the fail-safe may be functioning.
If the power window initialization Initialization has not been performed, the AUTO UP / DOWN function will not operate.
NOTICE:
When the power window regulator motor assembly (rear RH) is reinstalled or replaced, the power window control system must be initialized.

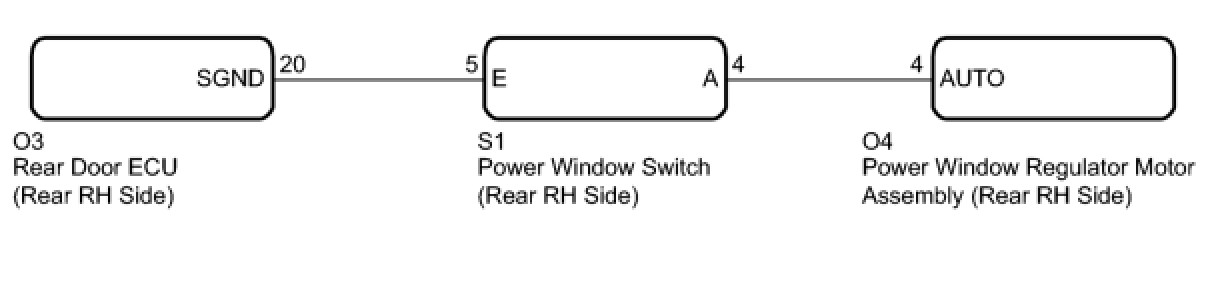

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Check for DTCs.

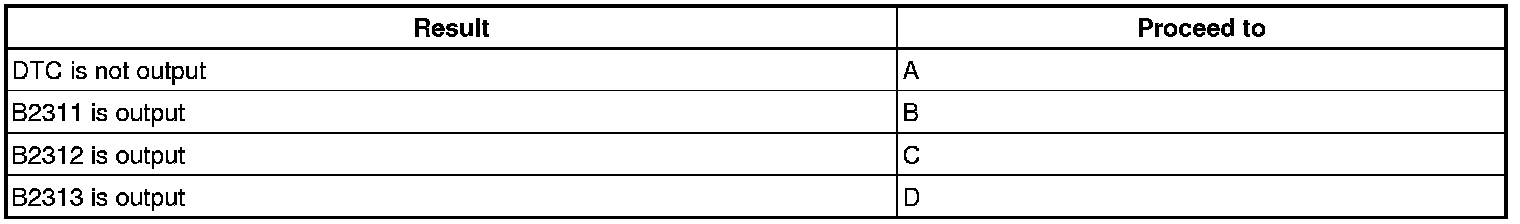

Result:

D -- GO TO DTC B2313
C -- GO TO DTC B2312
B -- GO TO DTC B2311
A -- Continue to next step.
2. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream ON.
(c) Select the following menu items: Body / RR-Door Motor / Data List.
(d) Read the Data List according to the display on the Techstream.

RR-Door Motor

OK:
ON (switch operates) appears on screen.
NG -- CHECK HARNESS AND CONNECTOR (POWER WINDOW SWITCH (REAR RH SIDE) - MOTOR (REAR RH SIDE))
OK -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

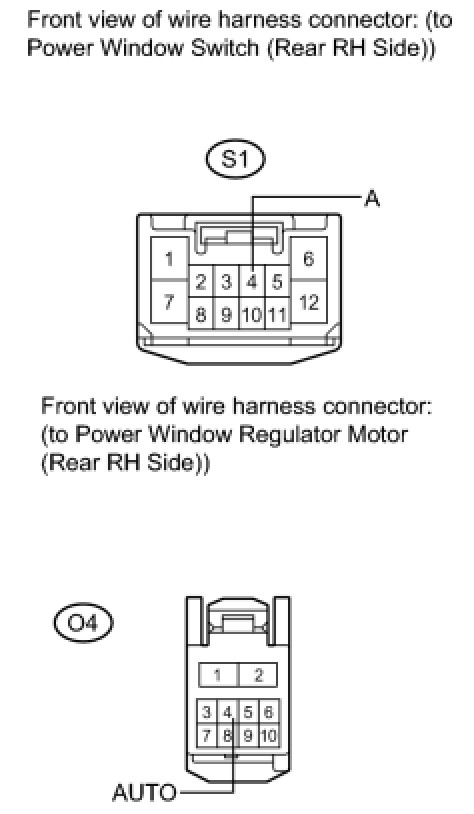

3. CHECK HARNESS AND CONNECTOR (POWER WINDOW SWITCH (REAR RH SIDE) - MOTOR (REAR RH SIDE))
(a) Disconnect the S1 power window switch connector.

(b) Disconnect the O4 motor connector.

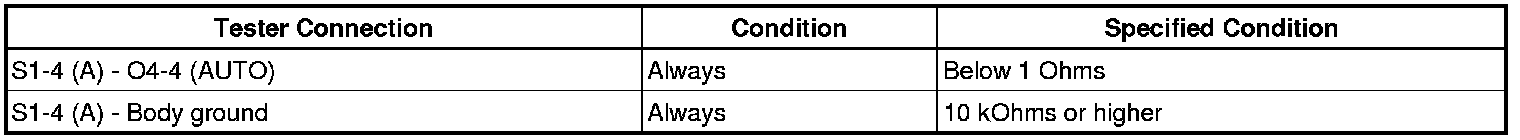

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

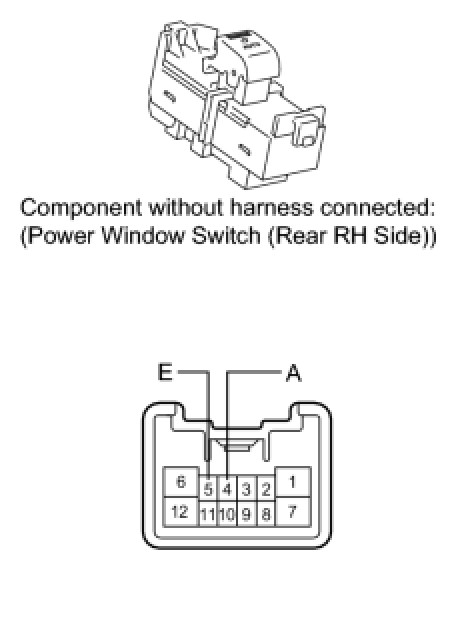

4. INSPECT POWER WINDOW SWITCH (for Rear RH Side)

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPLACE POWER WINDOW SWITCH (for Rear RH Side)
OK -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
