Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptoms Table

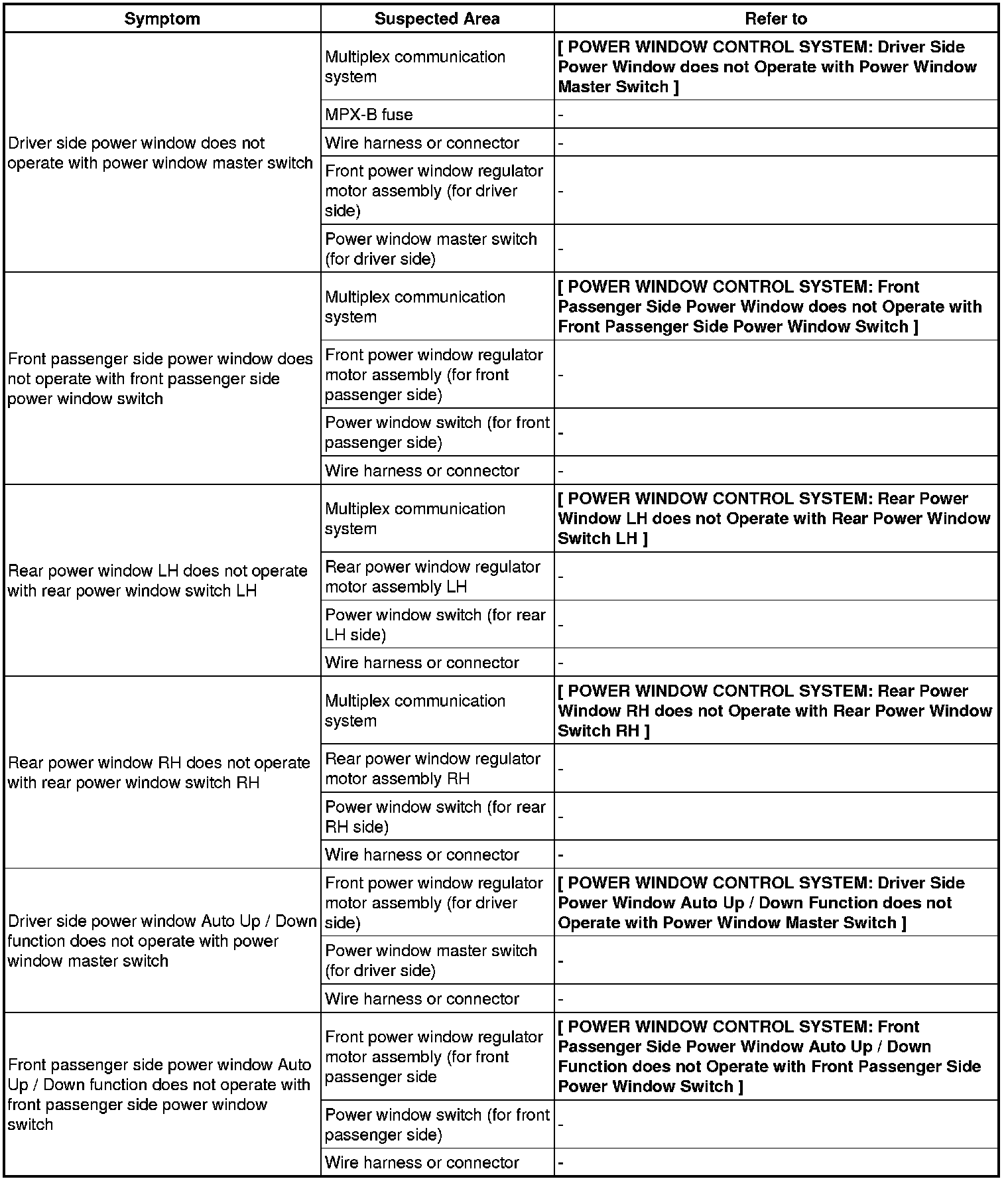

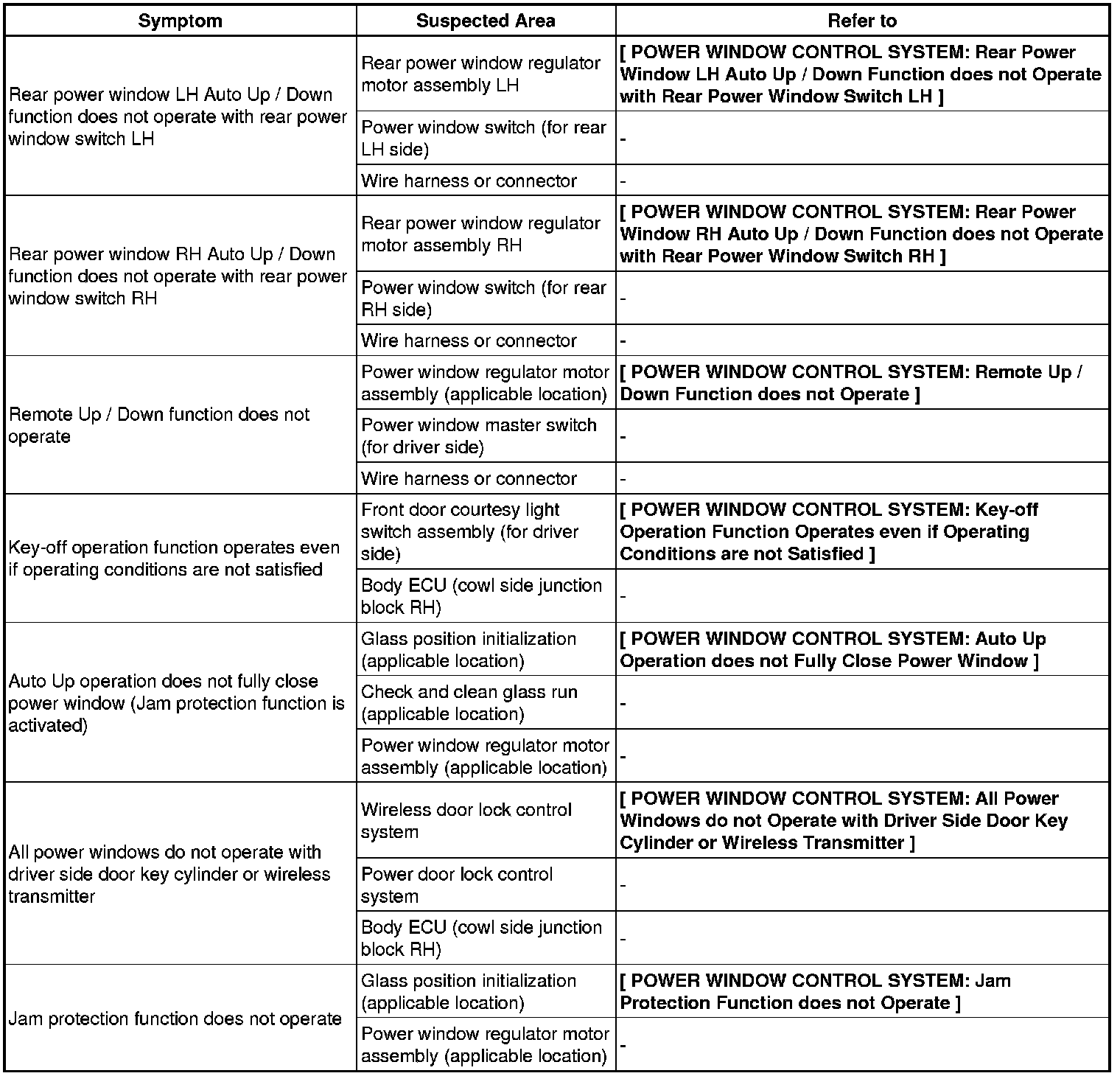

Problem Symptoms Table









WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

Power Window Control System
