Body - Power Window Initialization Procedure
PRE-DELIVERY SERVICEPD060-07
Title:
INITIALIZATION OF POWER WINDOW DURING PDS
Models:
'08 GS 350/460
October 4, 2007
Introduction
As a result of the removal of the DCC fuse, the "one-touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of the power window position memory stored in the microcomputer.
Initialize each door's power window after installing the DCC fuse into its original location during Pre-Delivery Service (PDS) at the dealership.
NOTE:
Any time the battery terminal has been disconnected, each door's power window MUST be re-initialized.
Applicable Vehicles
^ 2008 model year GS 350/460 vehicles.

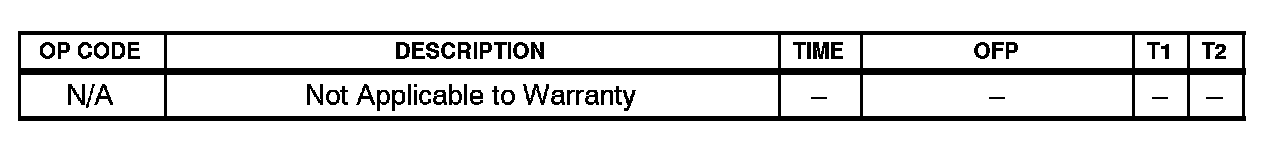

Warranty Information
Initialization Procedure
1. Turn the ignition switch to the "ON" position.

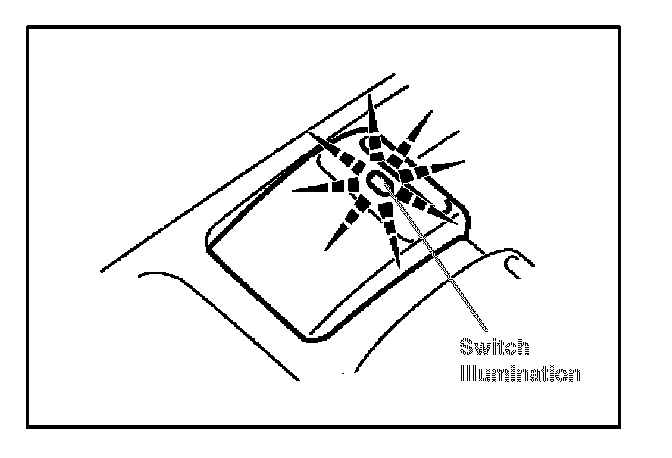

If the power windows have not been initialized, the driver's door power window switch will blink.
2. Push the driver's door power window switch to open the window.

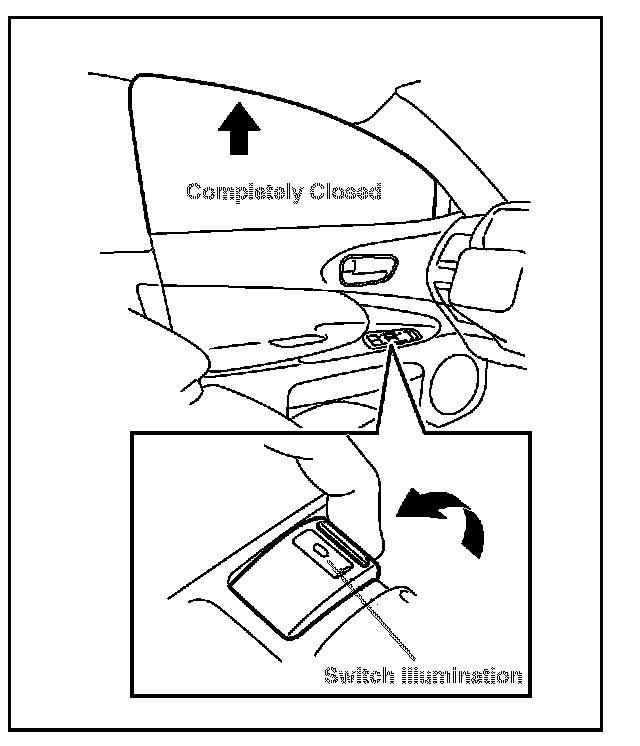

3. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second.
At this time, the driver's door power window switch will stop blinking and the light will remain ON.
4. Repeat steps 1 -- 3 for each door's power window.
NOTE:
When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.
At this time, each door's power window switch illumination will stop blinking and the light will remain ON.
5. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
