Installation

A760E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSTALLATION

1. INSTALL TRANSMISSION WIRE

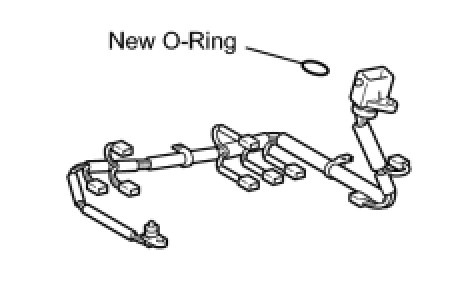

(a) Coat a new O-ring with ATF and install it to the transmission wire.






(b) Install the transmission wire with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

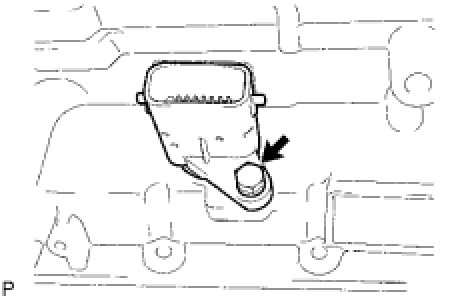

(c) Connect the transmission wire connector.
2. CONNECT TRANSMISSION WIRE






(a) Connect the 9 connectors to the solenoid valves.






(b) Install the 2 clamps with the 2 bolts.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Coat the O-ring of the ATF temperature sensor with ATF.






(d) Connect the ATF temperature sensor and clamp with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY






(a) Coat a new O-ring with ATF and install it to the oil strainer.






(b) Install the oil strainer with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY






(a) Install the 3 magnets in the oil pan.






(b) Install a new gasket and the oil pan to the transmission case with the 20 bolts.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid A760E Automatic Transmission.
7. INSTALL NO. 2 ENGINE UNDER COVER
8. RESET MEMORY
(a) Perform the RESET MEMORY procedures (A/T initialization) A760E Automatic Transmission System.
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
