A760H AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

(a) Install the check ball body and spring.
NOTICE:
Do not drop the check ball body and spring.

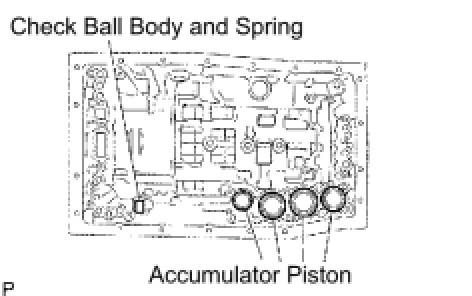

(b) Check the accumulator piston, check ball body and spring as shown in the illustration.

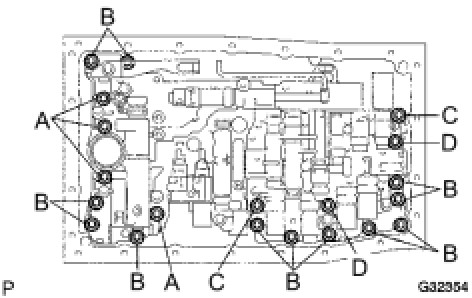

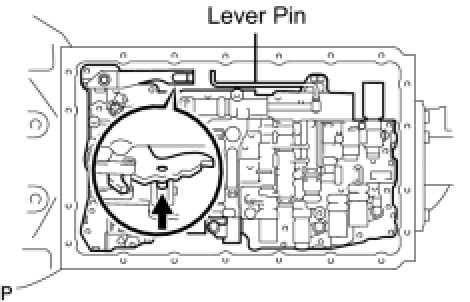

(d) Install the 20 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt length:
Bolt A
36 mm (1.42 in.)
Bolt B
25 mm (0.98 in.)
Bolt C
45 mm (1.77 in.)
Bolt D
50 mm (1.97 in.)
2. CONNECT TRANSMISSION WIRE Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Installation

5. INSTALL EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSEMBLY Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. ADD AUTOMATIC TRANSMISSION FLUID
A760H Automatic Transmission
8. RESET MEMORY
A760H Automatic Transmission System
9. PERFORM INITIALIZATION
Repair Instruction - Initialization
