Reassembly

AA80E AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: REASSEMBLY

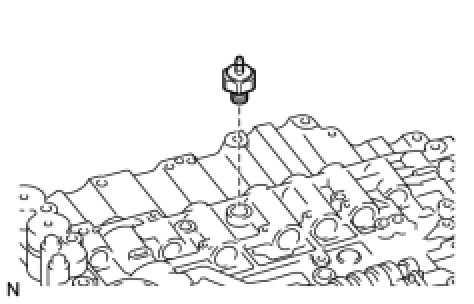

1. INSTALL OIL PRESSURE SWITCH






(a) Install the oil pressure switch.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)

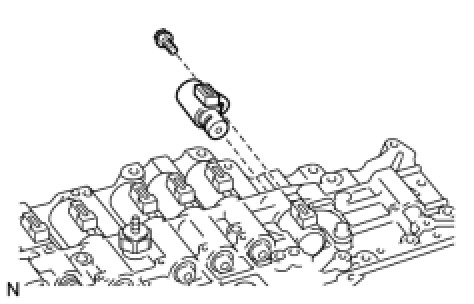

2. INSTALL SHIFT SOLENOID VALVE SR






(a) Install the solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

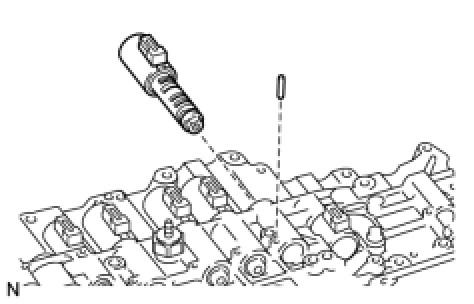

3. INSTALL SHIFT SOLENOID VALVE SLT






(a) Install the solenoid valve.
(b) Install the straight pin.

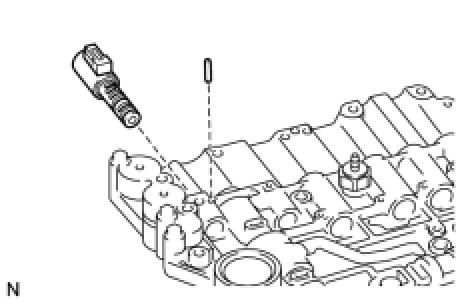

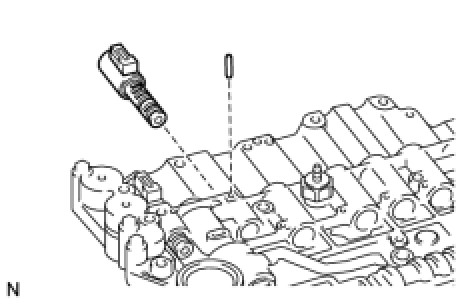

4. INSTALL SHIFT SOLENOID VALVE SLU






(a) Install the solenoid valve.
(b) Install the straight pin.

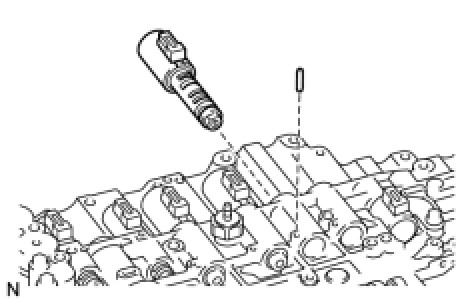

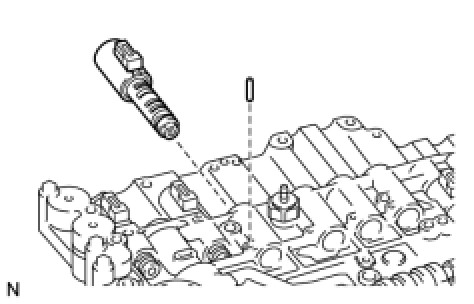

5. INSTALL SHIFT SOLENOID VALVE SL1






(a) Install the solenoid valve.
(b) Install the straight pin.

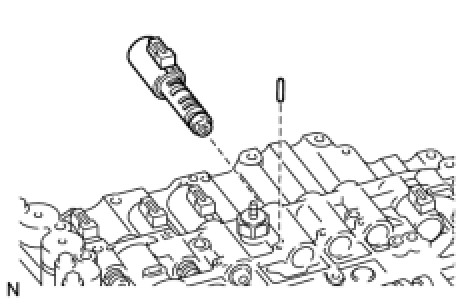

6. INSTALL SHIFT SOLENOID VALVE SL5






(a) Install the solenoid valve.
(b) Install the straight pin.
7. INSTALL SHIFT SOLENOID VALVE SL4






(a) Install the solenoid valve.
(b) Install the straight pin.
8. INSTALL SHIFT SOLENOID VALVE SL3






(a) Install the solenoid valve.
(b) Install the straight pin.

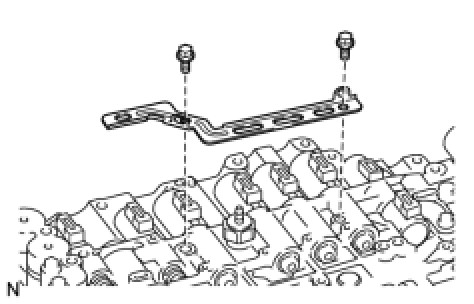

9. INSTALL SOLENOID LOCK PLATE






(a) Install the plate with the 2 bolts.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)

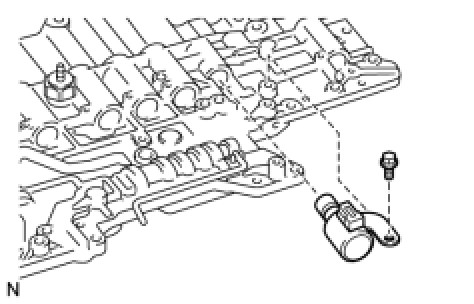

10. INSTALL SHIFT SOLENOID VALVE SL






(a) Install the solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

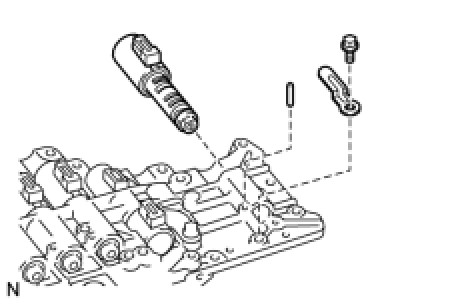

11. INSTALL SHIFT SOLENOID VALVE SL2






(a) Install the solenoid valve.
(b) Install the straight pin and solenoid lock plate with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
