Reassembly

A760H AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: REASSEMBLY

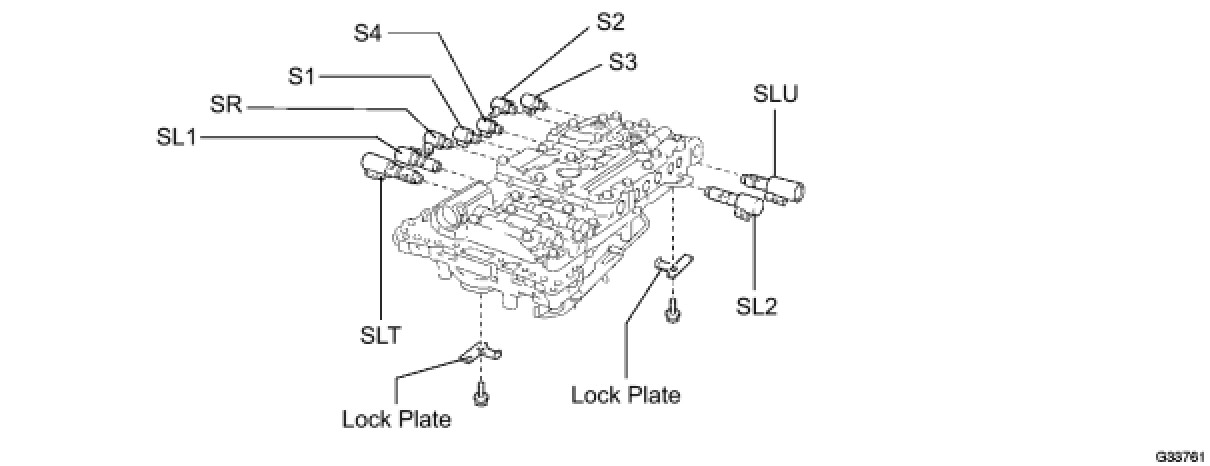

1. INSTALL SHIFT SOLENOID VALVE
(a) Install the clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT) with the lock plate and bolt.





Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
(b) Install the automatic transmission 3-way solenoid (SR) with the bolt.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)
(c) Install the automatic transmission 3-way solenoid (S1).
(d) Install the automatic transmission 3-way solenoid (S2) and automatic transmission 3-way solenoid (S4) with the bolt.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)
(e) Install the automatic transmission 3-way solenoid (S3) with the bolt.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)
(f) Install the lock up control solenoid (SLU) and clutch control solenoid (SL2) with the lock plate and bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
