Manual Shifting Test

A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: MANUAL SHIFTING TEST

1. PERFORM MANUAL SHIFTING TEST
HINT:
- With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transmission.
- If any abnormalities are found in the following test, the problem is in the transmission itself.

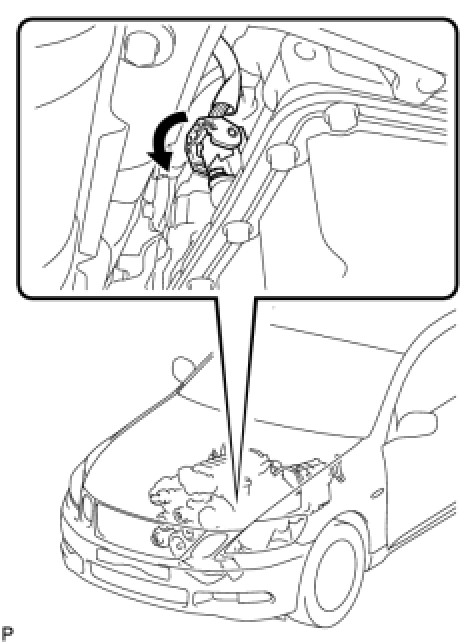

(a) Disconnect the connector of the transmission wire.

(b) Drive with the transmission wire disconnected.
Move the shift lever to each position to check whether the gear position changes as shown in the table below.






(c) Connect the connector of the transmission wire.
(d) Clear the DTC DTC Check / Clear.
