Inspection

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH
(a) Connect the shift lever position switch connector.

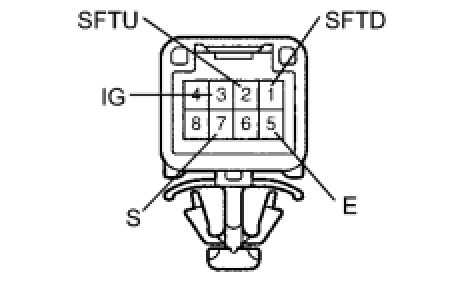

(b) Disconnect the transmission control switch connector of the shift lock control unit assembly.

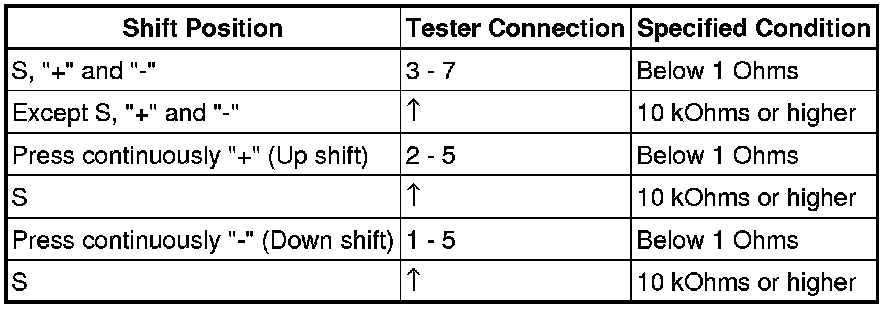

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the resistance value is not as specified, replace the transmission control switch.
