Inspection

A760H AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH






(a) Connect the park/neutral position switch connector.
Standard resistance:

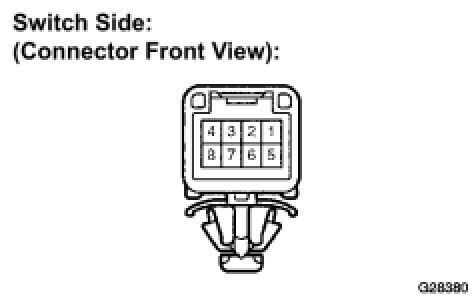

(b) Disconnect the transmission control switch connector of shift lock control unit assembly.

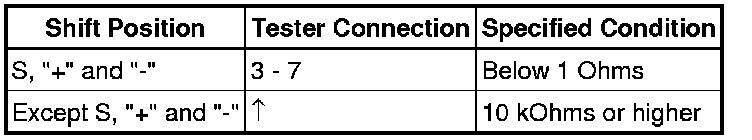

(c) Measure resistance according to the value(s) in the table below when the shift lever is moved to each position.
