Reassembly

A760H AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REASSEMBLY

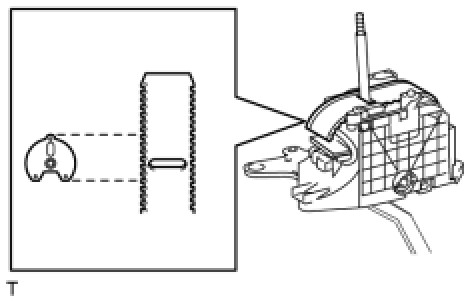

1. INSTALL TRANSMISSION CONTROL SWITCH






(a) Install the transmission control switch to the shift lever guide housing.
HINT:
Securely engage the claws.

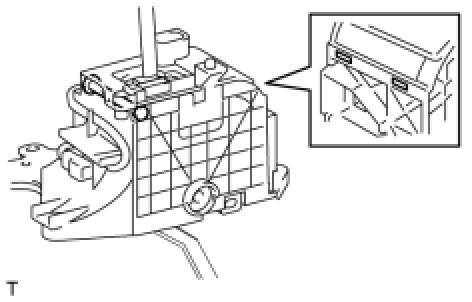

2. INSTALL POSITION INDICATOR HOUSING LOWER






(a) Install the position indicator housing lower to the shift lever guide housing.
HINT:
Securely engage the claws.

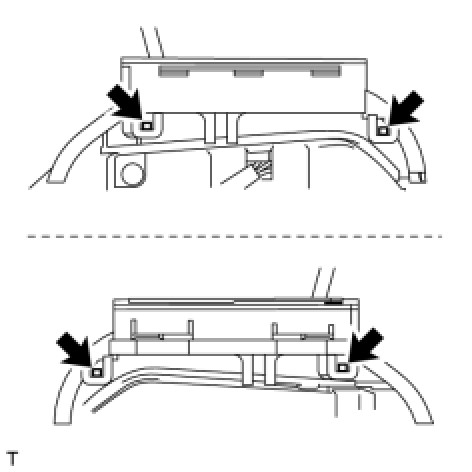

3. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY






(a) Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.






(b) Install the shift lock control ECU sub-assembly with the 2 screws.






(c) Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
NOTICE:

- Install the shift lever nut and lock pin after first engaging the 2 claws.
- Securely engage the claws.


4. INSTALL POSITION INDICATOR SLIDE COVER






(a) Install position indicator slide cover No.2 to the position indicator slide cover.
(b) Install the position slide cover to the shift lever guide housing.
5. INSTALL SHIFT LOCK RELEASE BUTTON






(a) Install the shift lock release button and spring to the floor shift assembly.
HINT:
Securely engage the claws.

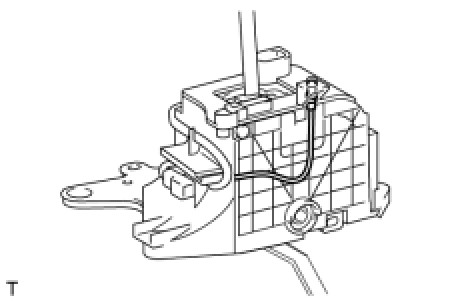

6. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY






(a) Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.
(b) Install the position indicator light bulb to the indicator light wire sub-assembly.
(c) Install the position indicator bulb cap to the position indicator light bulb.






(d) Install the indicator light wire to the position indicator lower.
NOTICE:
Make sure that the indicator light wire is securely installed to the position indicator lens.





(e) Connect the indicator light wire connector to the floor shift assembly.
7. INSTALL POSITION INDICATOR LENS






(a) Install the position indicator lens to the position indicator housing upper.
HINT:
Securely engage the claws.

8. INSTALL POSITION INDICATOR HOUSING UPPER






(a) Install the position indicator housing upper to the shift lever guide housing.
HINT:
Securely engage the claws.

9. INSTALL SHIFT LOCK RELEASE BUTTON COVER
(a) Install the shift lock release button cover to the position indicator housing upper.
