Reassembly

A760E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REASSEMBLY

1. INSTALL TRANSMISSION CONTROL SWITCH

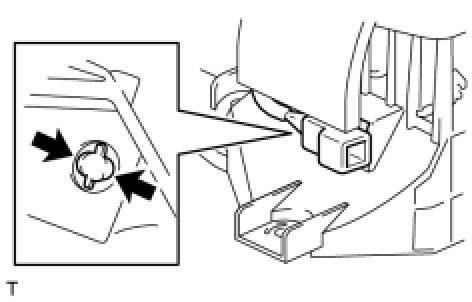

(a) Install the transmission control switch to the shift lever guide housing.
HINT:
Securely engage the claws.

2. INSTALL POSITION INDICATOR LOWER HOUSING

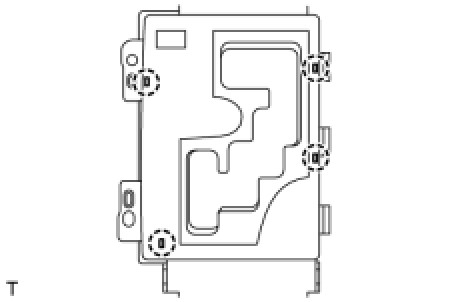

(a) Install the position indicator housing lower to the shift lever guide housing.
HINT:
Securely engage the claws.

3. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

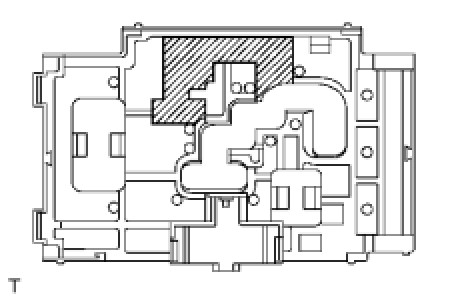

(a) Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.






(b) Install the shift lock control ECU with the 2 screws.

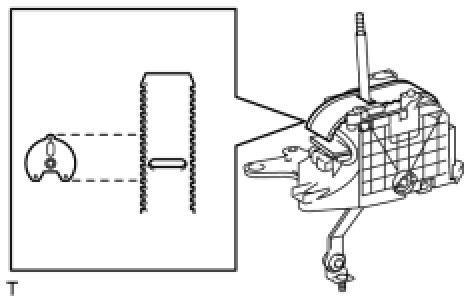

(c) Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
NOTICE:

- Install the shift lever nut and lock pin after first engaging the 2 claws.
- Securely engage the claws.


4. INSTALL POSITION INDICATOR SLIDE COVER

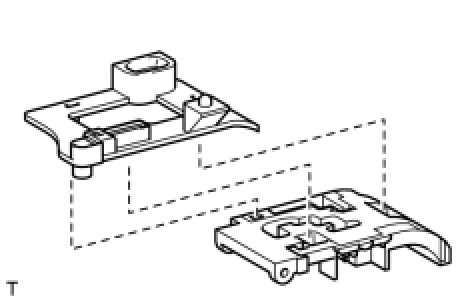

(a) Install the No. 2 position indicator slide cover to the position indicator slide cover.
(b) Install the position indicator slide cover to the shift lever guide housing.
5. INSTALL SHIFT LOCK RELEASE BUTTON

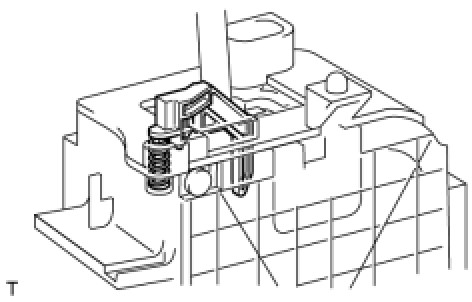

(a) Install the shift lock release button and spring to the floor shift.
HINT:
Securely engage the claws.

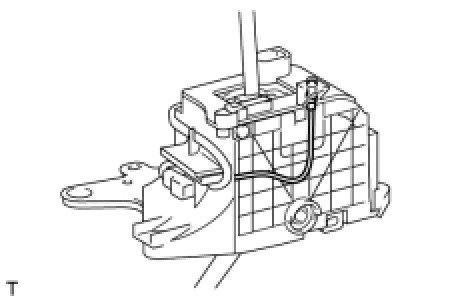

6. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

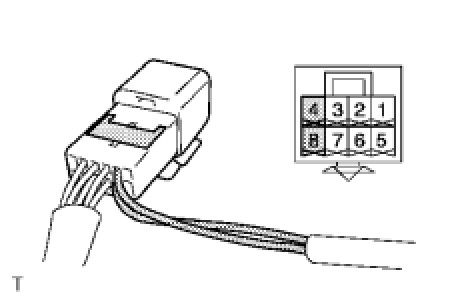

(a) Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.
(b) Install the position indicator bulb to the indicator light wire.
(c) Install the position indicator bulb cap to the position indicator bulb.






(d) Install the indicator light wire to the position indicator lower housing.
NOTICE:
Make sure that the indicator light wire is securely installed to the position indicator lens.





(e) Connect the transmission control switch connector to the floor shift.
7. INSTALL POSITION INDICATOR LENS






(a) Install the position indicator lens to the position indicator upper housing.
HINT:

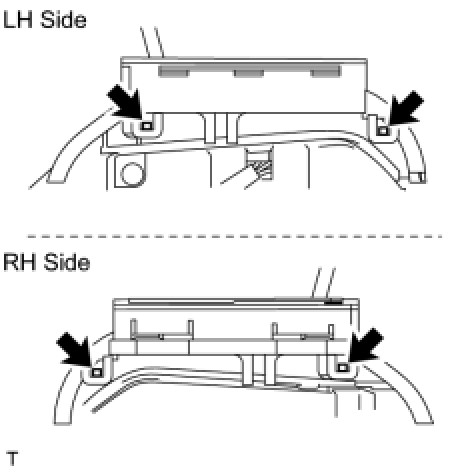

Securely engage the claws.

8. INSTALL POSITION INDICATOR UPPER HOUSING






(a) Install the position indicator housing upper to the shift lever guide housing.
HINT:
Securely engage the claws.

9. INSTALL SHIFT LOCK RELEASE BUTTON COVER
(a) Install the shift lock release button cover to the position indicator upper housing.
