A760H Automatic Transmission

A760H AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: ADJUSTMENT

1. ADJUST SHIFT LEVER POSITION

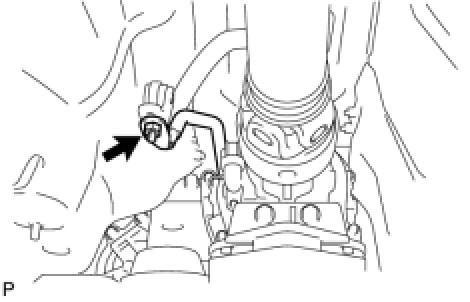

(a) Remove the nut and disconnect the shifting rod from the connecting rod swivel.






(b) Turn the control shaft lever of the neutral start switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
(c) Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.
NOTICE:
Do not push the shift lever too hard.

(d) After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate correctly.
