A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION UNIT: REASSEMBLY

Part 2

Continued from Part 1 Part 1

34. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL

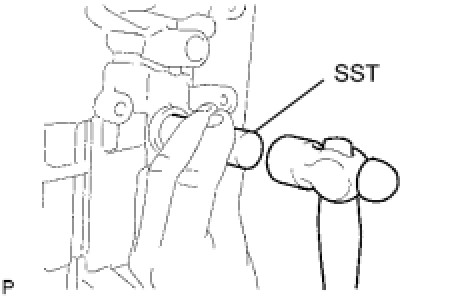

(a) Using SST and a hammer, tap in 2 new oil seals.
SST: 09350-30020
09350-07110
(b) Coat the lips of the oil seal with MP grease.
35. INSPECT INDIVIDUAL PISTON OPERATION Transmission Unit

36. INSTALL MANUAL VALVE LEVER SUB-ASSEMBLY

(a) Install a new spacer to the manual valve lever.
(b) Install the manual valve lever shaft to the transmission case through the manual valve lever.

(d) Align the manual valve lever indentation with the spacer hole, and stake them together with the punch.
(e) Make sure that the shaft rotates smoothly.
37. INSTALL PARKING LOCK PAWL SHAFT

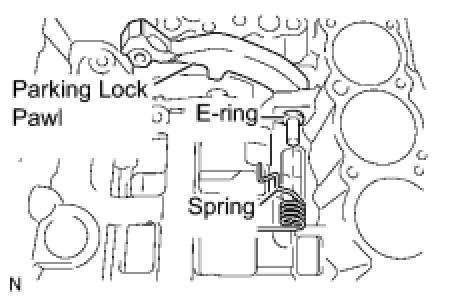

(a) Install a new E-ring to the shaft.
(b) Install the parking lock pawl, the shaft and the spring.
38. INSTALL PARKING LOCK ROD SUB-ASSEMBLY

(a) Connect the parking lock rod to the manual valve lever.
39. INSTALL PARKING LOCK PAWL BRACKET

(a) Place the parking lock pawl bracket onto the transmission case and tighten the 3 bolts.
Torque: 7.4 Nm (75 kgf-cm, 65 in-lbf)

(b) Shift the manual valve lever to the P position, and confirm that the planetary gear is correctly locked up by the lock pawl.
40. INSTALL B-1 ACCUMULATOR VALVE
(a) Install the 2 springs and the accumulator valve to the hole.

B-1 accumulator spring:

Inner spring:

Outer spring:

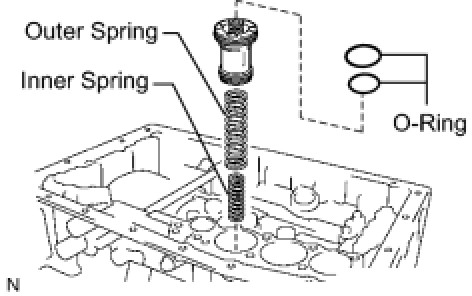

41. INSTALL C-3 ACCUMULATOR PISTON

(a) Coat 2 new O-rings with ATF, and install them to the piston.
(b) Install the 2 springs and the accumulator piston to the hole.
C-3 accumulator spring:

Inner spring:

Outer spring:

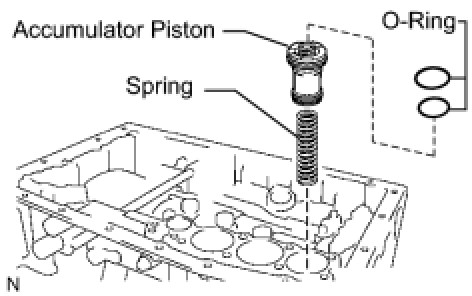

42. INSTALL B-3 ACCUMULATOR PISTON

(a) Coat 2 new O-rings with ATF, and install them to the piston.
(b) Install the spring and the accumulator piston to the hole.
Accumulator spring:

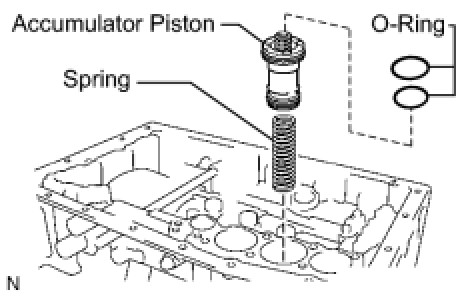

43. INSTALL C-2 ACCUMULATOR PISTON

(a) Coat 2 new O-rings with ATF, and install them to the piston.
(b) Install the spring and the accumulator piston to the hole.
Accumulator spring:

44. INSTALL CHECK BALL BODY

(a) Install the check ball body and the spring.

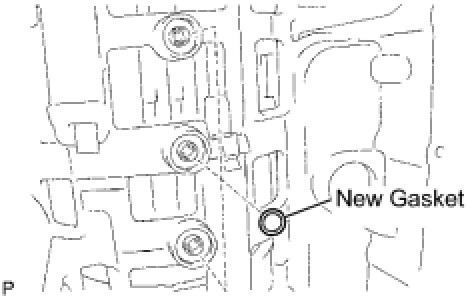

45. INSTALL BRAKE DRUM GASKET

(a) Install 3 new brake drum gaskets.
46. INSTALL TRANSAXLE CASE GASKET

(a) Install 3 new transaxle case gaskets.
47. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

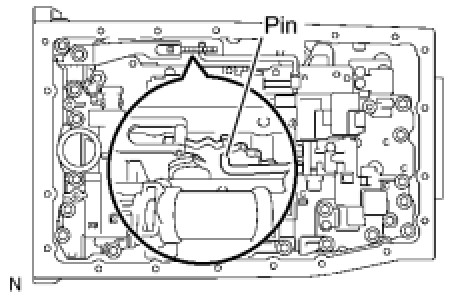

(a) Align the groove of the manual valve lever with the pin of the manual valve.

(b) Install the 20 bolts.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
HINT:
Each bolt length is indicated below.

Bolt length:
Bolt A
25 mm (0.98 in.)
Bolt B
36 mm (1.42 in.)
Bolt C
45 mm (1.77 in.)
Bolt D
50 mm (1.97 in.)

(c) Install the detent spring and the detent spring cover with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
48. INSTALL TRANSMISSION WIRE

(a) Coat a new O-ring with ATF.
(b) Install the O-ring to the transmission wire.

(e) Connect the 9 solenoid connectors.

(f) Install the ATF temperature sensor and clamp with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

(g) Install the clamps with the 2 bolts.
Bolt A - Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
Bolt B - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
49. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

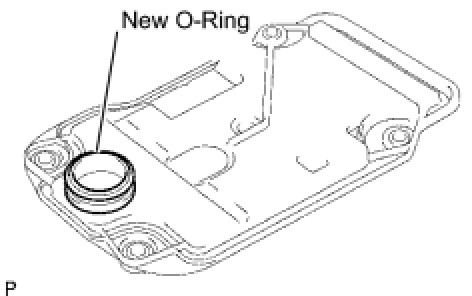

(a) Coat a new O-ring with ATF, and install it to the valve body oil strainer assembly.

(b) Install the oil strainer with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

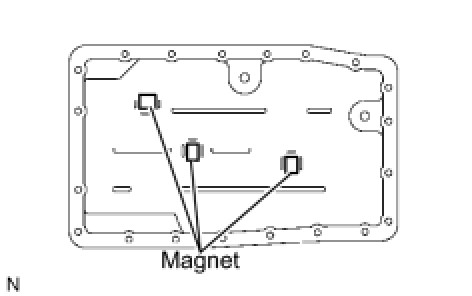

50. INSTALL TRANSMISSION OIL CLEANER MAGNET

(a) Install the 3 transmission oil cleaner magnets.
51. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
(a) Install a new gasket on the oil pan.

(b) Install and tighten the 20 bolts.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
(c) Install a new gasket and the drain plug.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(d) Install a new gasket and the overflow plug.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
52. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

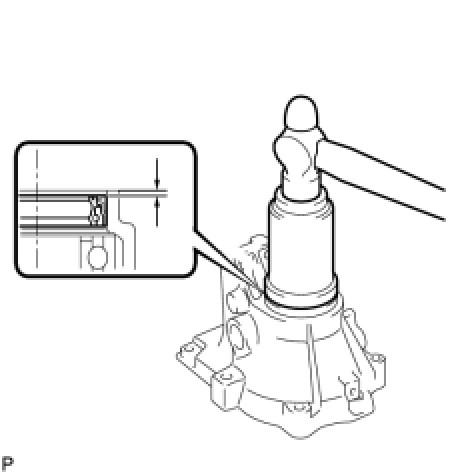

(b) Using SST and a hammer, install the oil seal.
SST: 09316-60011
09316-00011
09316-00051
Standard depth:
1.8 to 2.2 mm (0.071 to 0.087 in.)

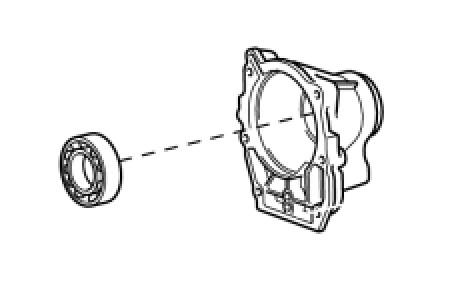

53. INSTALL TRANSMISSION CASE ADAPTOR RADIAL BALL BEARING

(a) Install the transmission case adaptor radial ball bearing to the extension housing sub-assembly.
54. INSTALL REAR COVER SLEEVE

(a) Install the 2 washers and rear cover sleeve to the output shaft.
55. INSTALL ALL EXTENSION (ATM) HOUSING SUB-ASSEMBLY

(a) Install the thrust needle roller bearing and the 2 bearing races.
(b) Using a snap ring expander, install the snap ring.

(c) Using a feeler gauge, measure the clearance between the snap ring and the race.
Standard clearance:
0.02 to 0.12 mm (0.0008 to 0.0047 in.)
If the clearance is outside the specified range, select another race that brings the clearance within the specified range.
HINT:

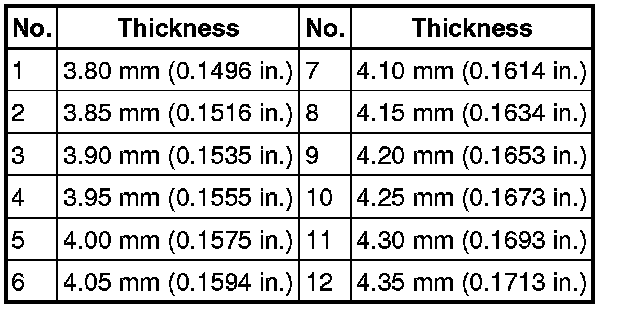

There are 12 different thicknesses for the race.

Flange thickness:

(d) Clean the threads of the bolts and the case with non-residue solvent.

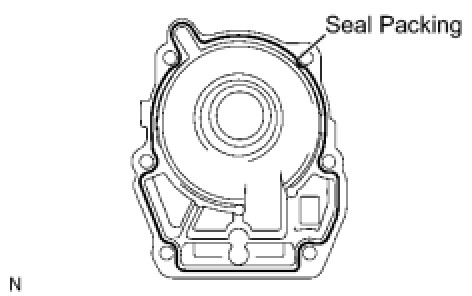

(e) Apply FIPG to the extension housing as shown in the illustration.
Seal packing:
Toyota Genuine Seal Packing 1281,
Three Bond 1281 or equivalent

(f) Install the extension housing with 6 new bolts.
Torque: 34 Nm (347 kgf-cm, 25 ft-lbf)
HINT:
Each bolt length is indicated below.

Bolt length:
Bolt A
45 mm (1.772 in.)
Bolt B
35 mm (1.378 in.)
56. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

(a) Using SST, install a new oil seal to the automatic transmission flange yoke.
SST: 09950-60010
09951-00350
SST: 09950-70010
09951-07100
(b) Install the automatic transmission flange yoke to the output shaft with a new nut.
Torque: 126 Nm (1285 kgf-cm, 93 ft-lbf)
(c) Using a hammer and chisel, stake the nut.
57. INSTALL AUTOMATIC TRANSMISSION HOUSING

(a) Clean the threads of the bolts and the case with non-residue solvent.

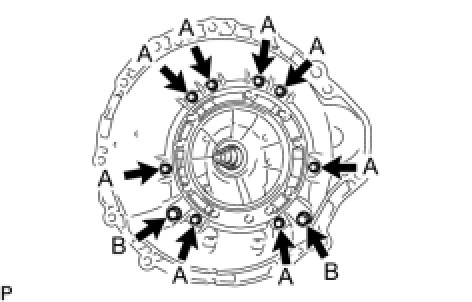

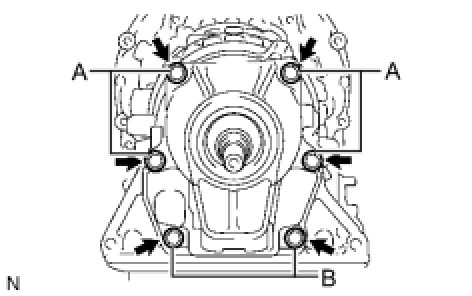

(b) Install the transmission housing with the 10 bolts.
Bolt A (14 mm head) - Torque: 34 Nm (347 kgf-cm, 25 ft-lbf)
Bolt B (17 mm head) - Torque: 57 Nm (581 kgf-cm, 42 ft-lbf)

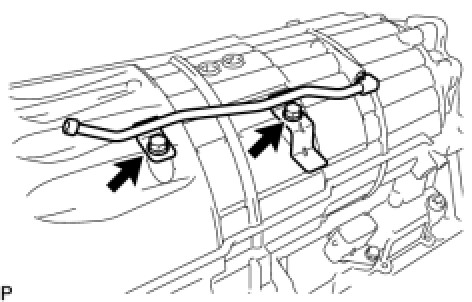

58. INSTALL AUTOMATIC TRANSMISSION BREATHER TUBE

(a) Install the breather tube.
(b) Install the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
59. INSTALL SPEED SENSOR

(a) Coat 2 new O-rings with ATF, and install them to the speed sensors.
(b) Install the 2 speed sensors.
(c) Install the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

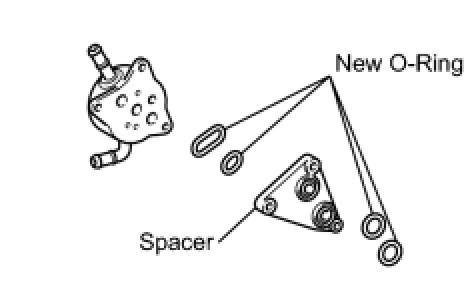

60. INSTALL TRANSMISSION OIL COOLER

(a) Coat 2 new O-rings with ATF, and install them to the transmission oil cooler.
(b) Coat 2 new O-rings with ATF, and install them to the spacer.

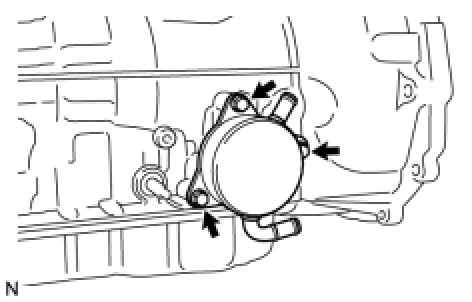

(c) Install the spacer and the transmission oil cooler with the 3 bolts.
Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)
61. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

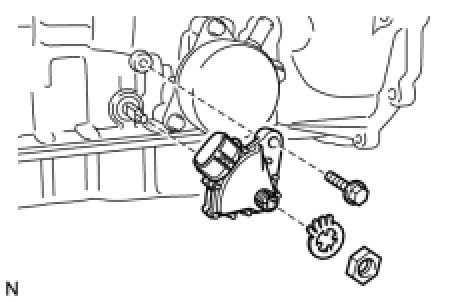

(a) Install the park/neutral position switch onto the manual valve lever shaft, and temporarily install the adjusting bolt.
(b) Install a new lock washer. Install and tighten the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)

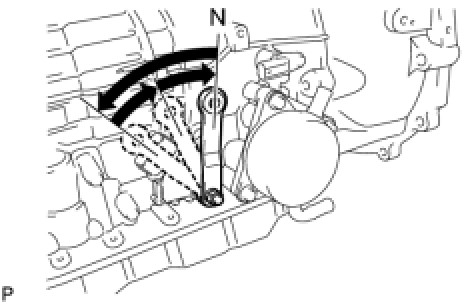

(c) Using the control shaft lever, turn the manual lever shaft back all the way and then forward 2 notches. It is now in neutral.

(d) Align the neutral basic line with the switch groove as shown in the illustration, and tighten the adjusting bolt.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)

(e) Using a screwdriver, bend the tabs of the lock washer.
HINT:
Bend at least 2 of the lock washer tabs.

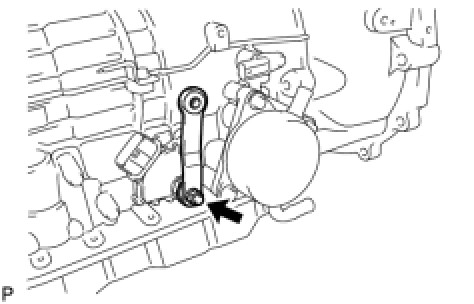

62. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH

(a) Install the control shaft lever, spring washer and nut.
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)

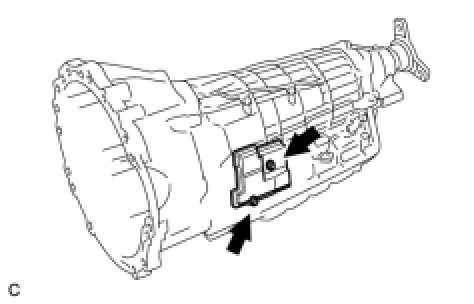

63. INSTALL TRANSMISSION CASE COVER

(a) Install the transmission case cover with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
