AA80E Automatic Transmission
>>
Components
Components

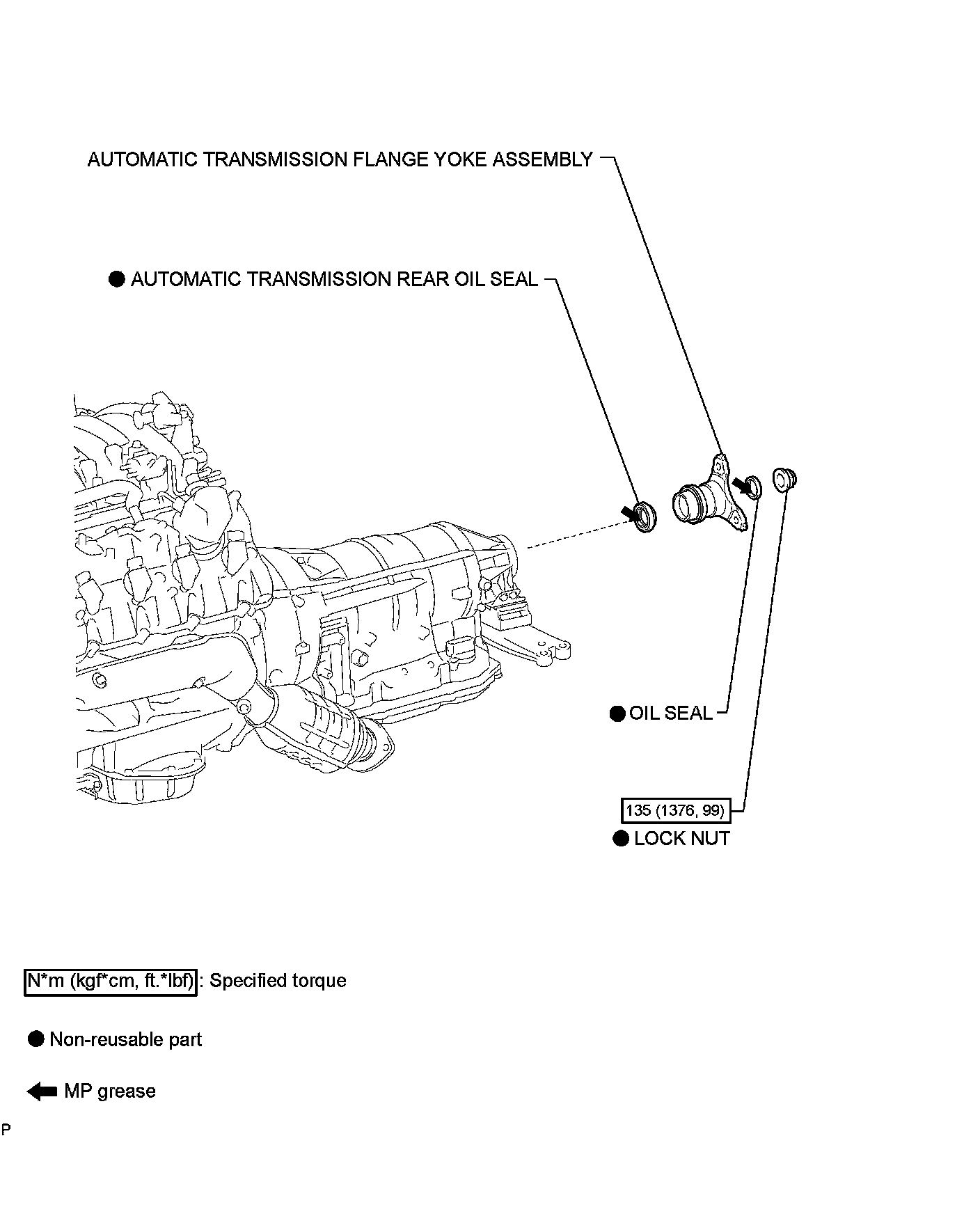

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION REAR OIL SEAL: COMPONENTS
ILLUSTRATION
