Adaptive Variable Suspension System

SUSPENSION CONTROL: ADAPTIVE VARIABLE SUSPENSION SYSTEM: DATA LIST / ACTIVE TEST

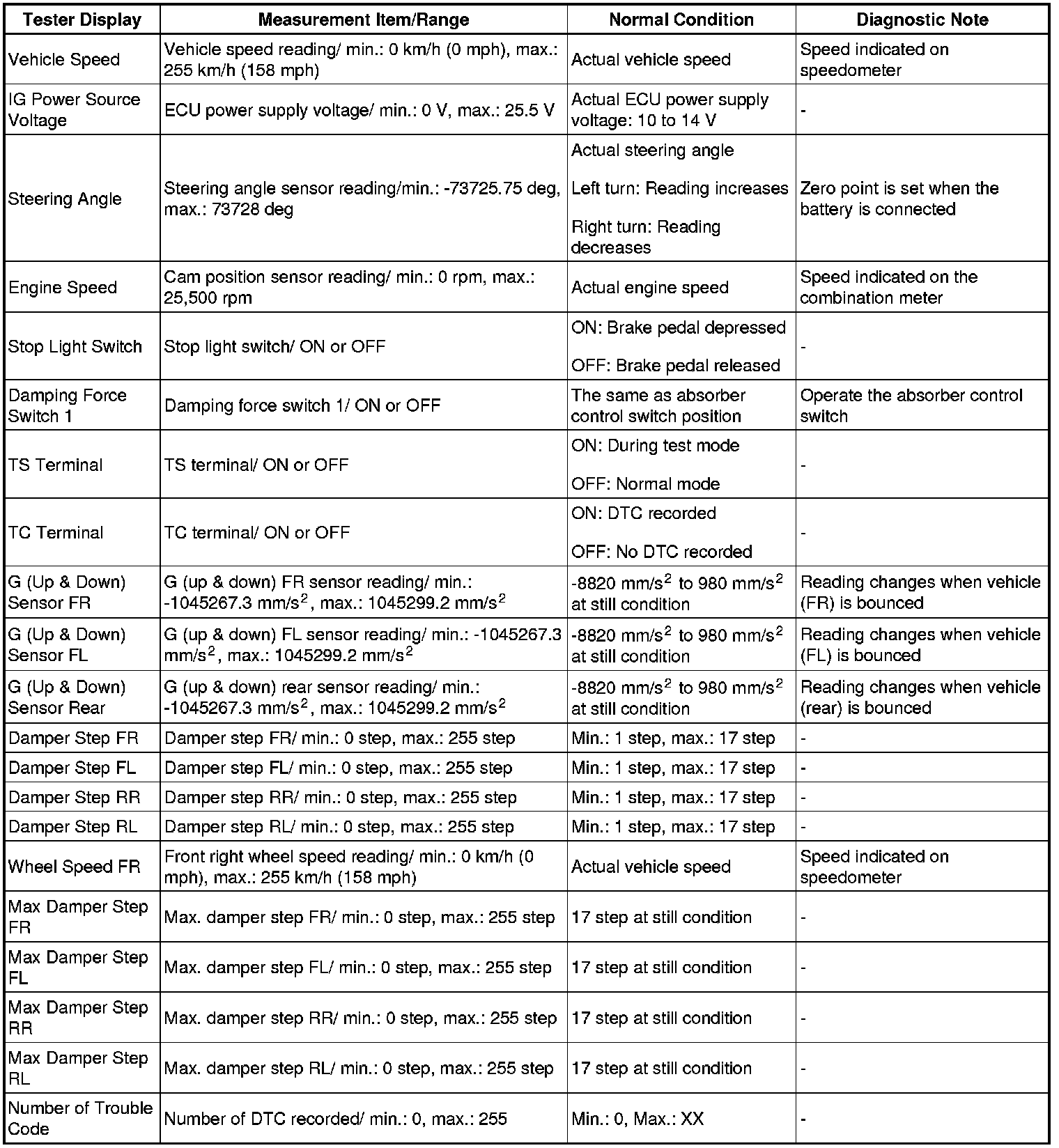

1. DATA LIST
HINT:
According to the DATA LIST displayed on Techstream, the value and status of the switch, sensor, actuator, etc. can be obtained without part removal. Reading the DATA LIST as the first step in troubleshooting is one way to shorten labor time.

(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) From the display on the tester, read the "DATA LIST".

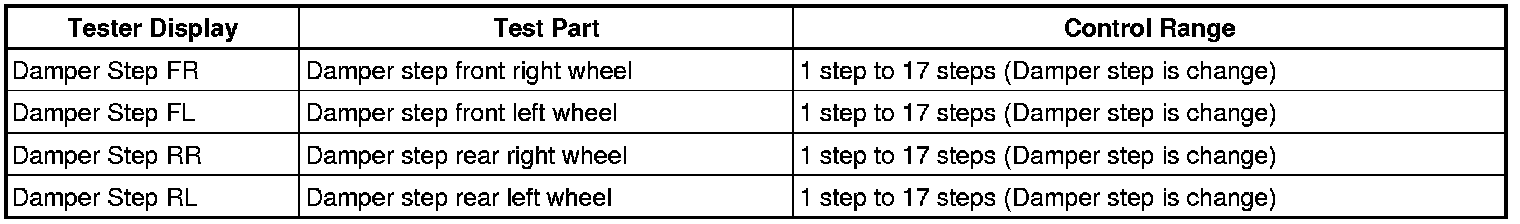

2. ACTIVE TEST
HINT:
Performing the ACTIVE TEST using Techstream allows the relay, actuator, etc. to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.

(a) Connect Techstream to DLC3.
(b) Turn the engine switch on (IG).
(c) According to the display on the tester, perform the "ACTIVE TEST".
