Removal

SUSPENSION CONTROL: FRONT ACCELERATION SENSOR: REMOVAL

NOTICE:
- Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
- The acceleration sensor removed from the vehicle must not be placed upside down.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT DOOR SCUFF PLATE LH Removal

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

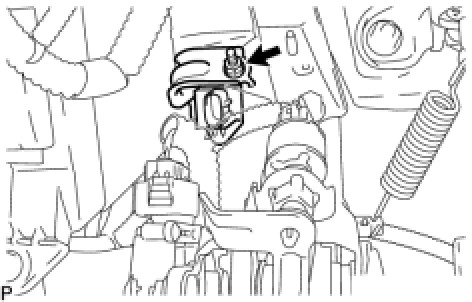

5. REMOVE FRONT ACCELERATION SENSOR ASSEMBLY
(a) Disconnect the sensor connector.
(b) Remove the nut and acceleration sensor.

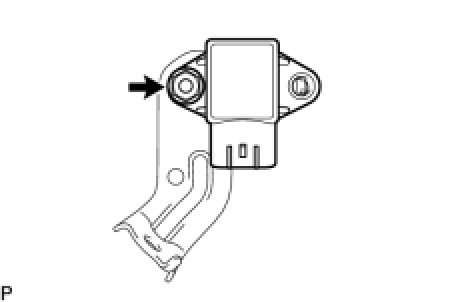

6. REMOVE FRONT ACCELERATION SENSOR
(a) Remove the nut and sensor from the bracket.
