Variable Gear Ratio Steering System

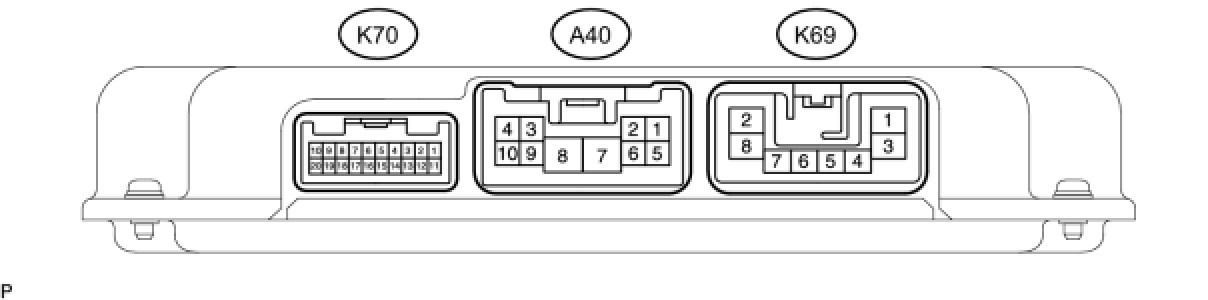

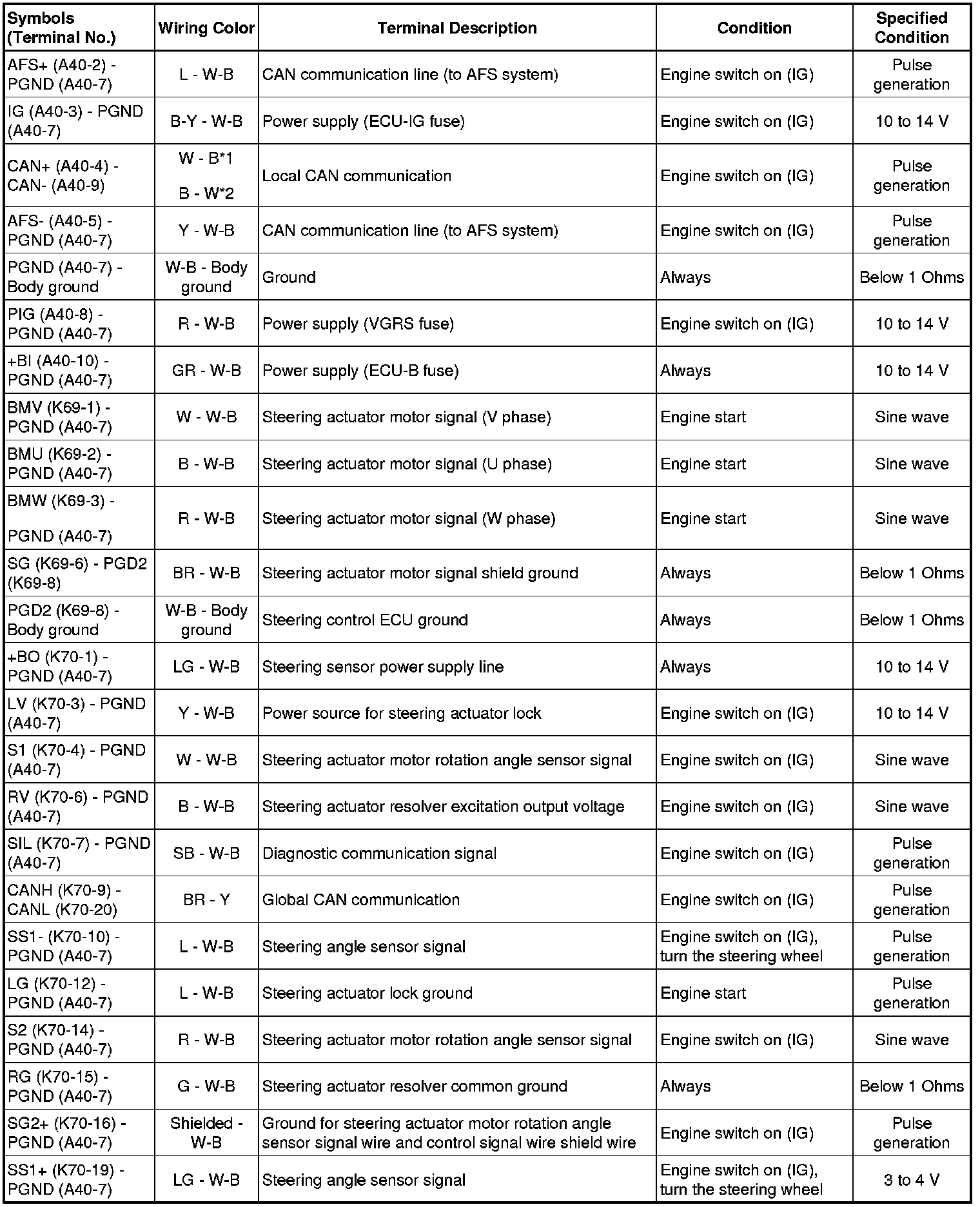

STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: TERMINALS OF ECU

HINT:
Inspect the connectors from the back side while they are connected.









*1: w/ Active Stabilizer Suspension System
*2: w/o Active Stabilizer Suspension System
