Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

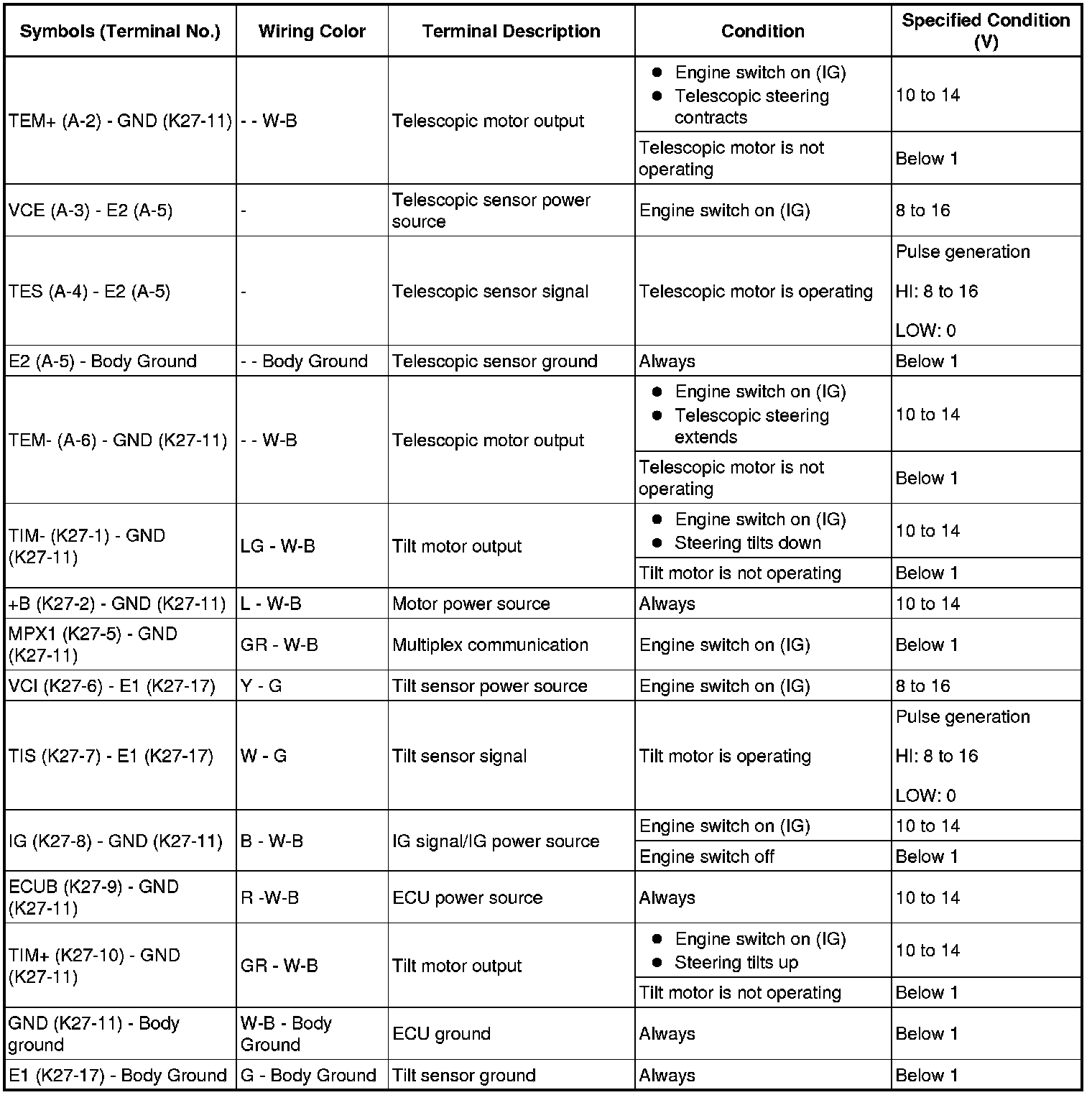

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: TERMINALS OF ECU

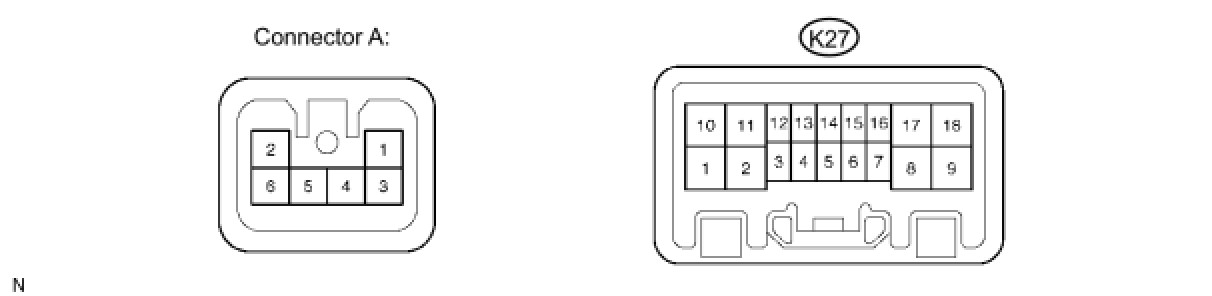

MULTIPLEX TILT & TELESCOPIC ECU:
