Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Removal and Replacement >> Components

Components

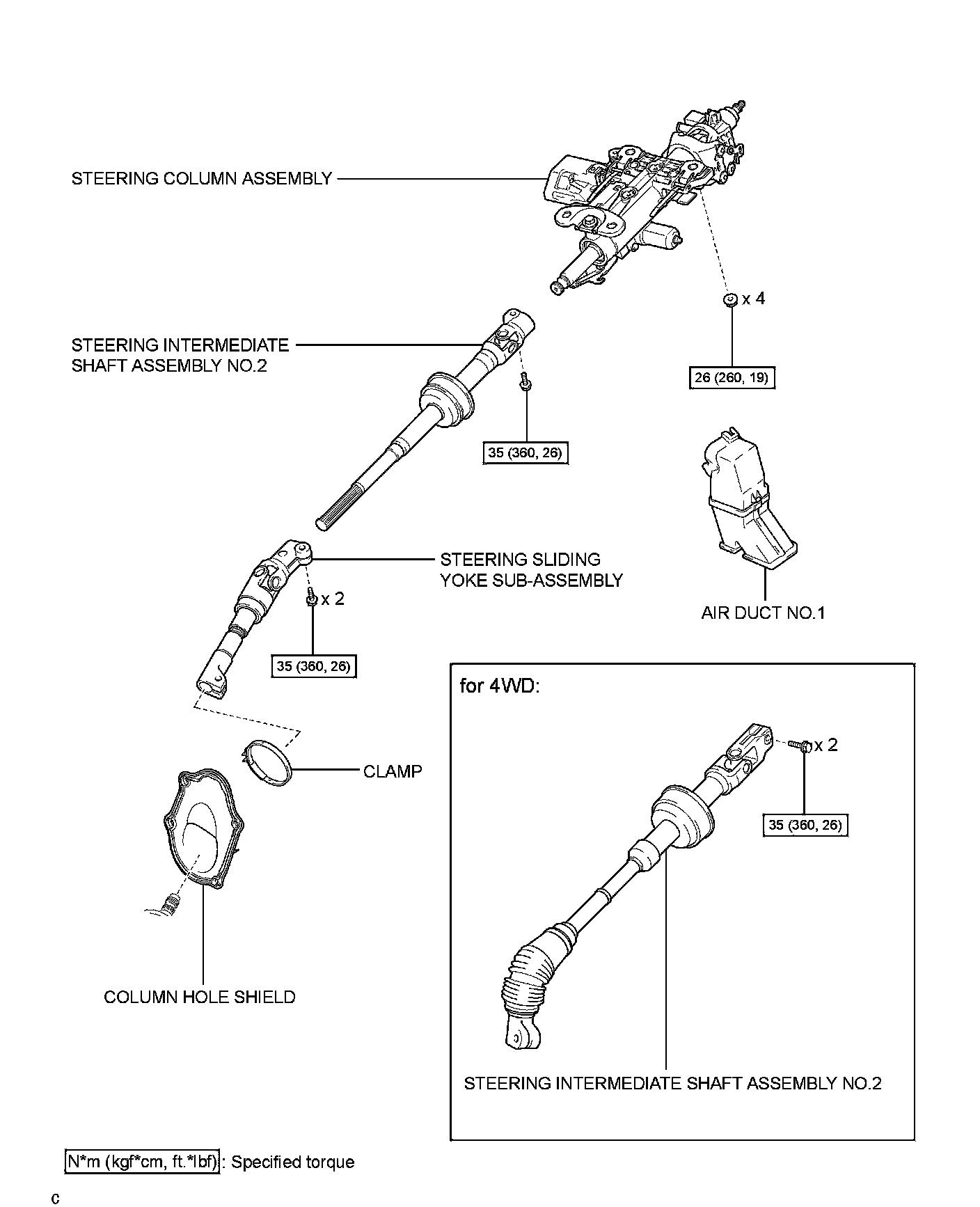

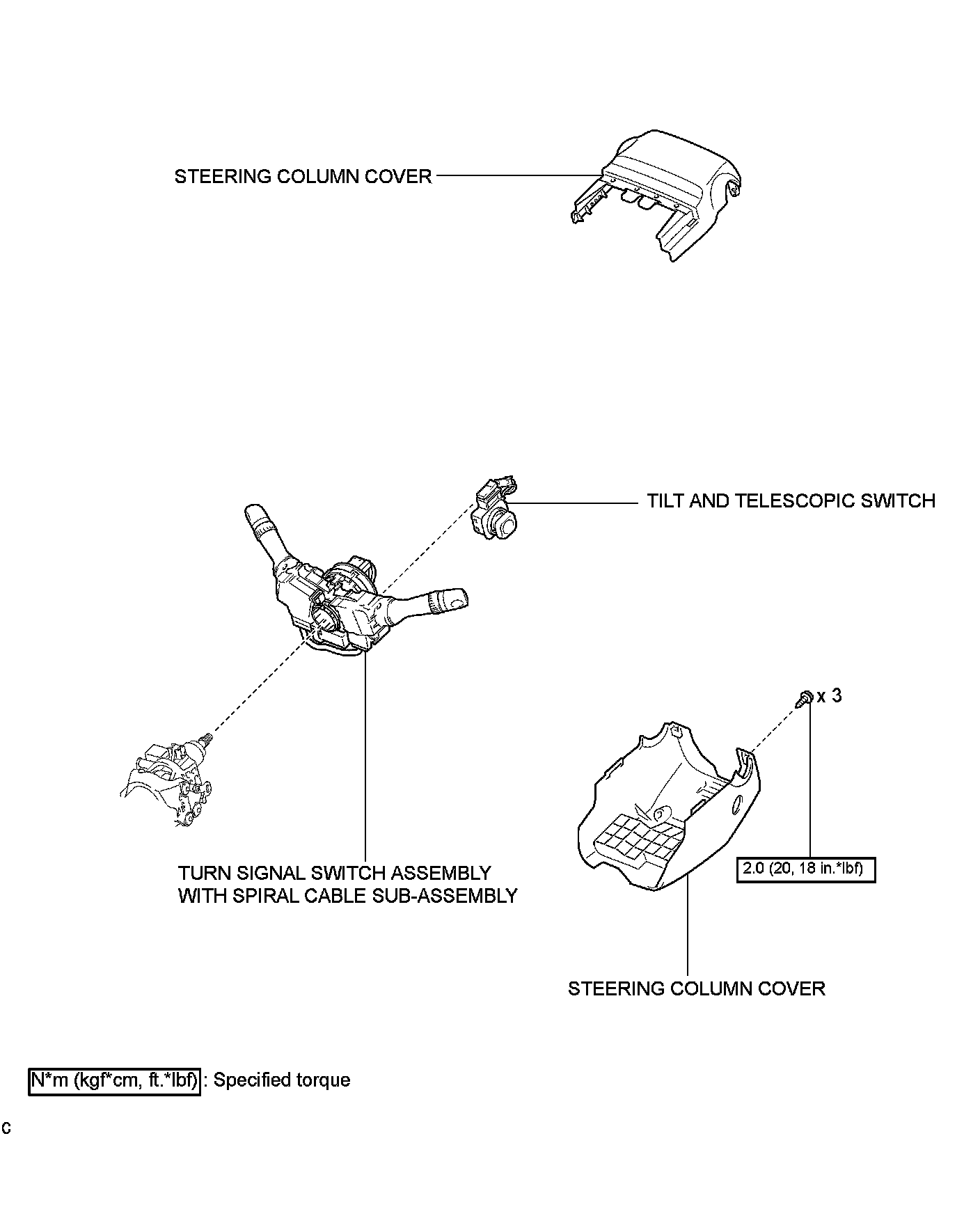

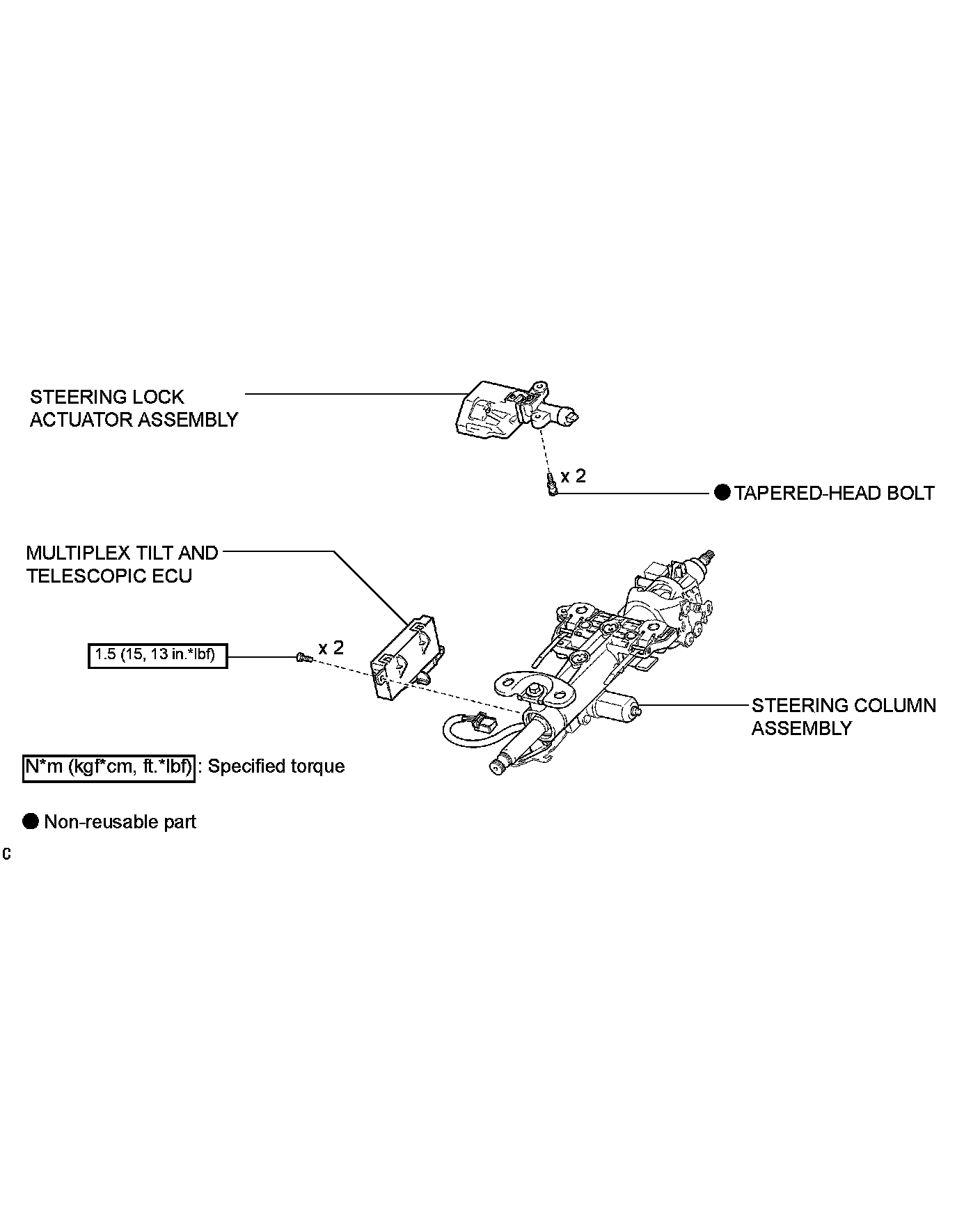

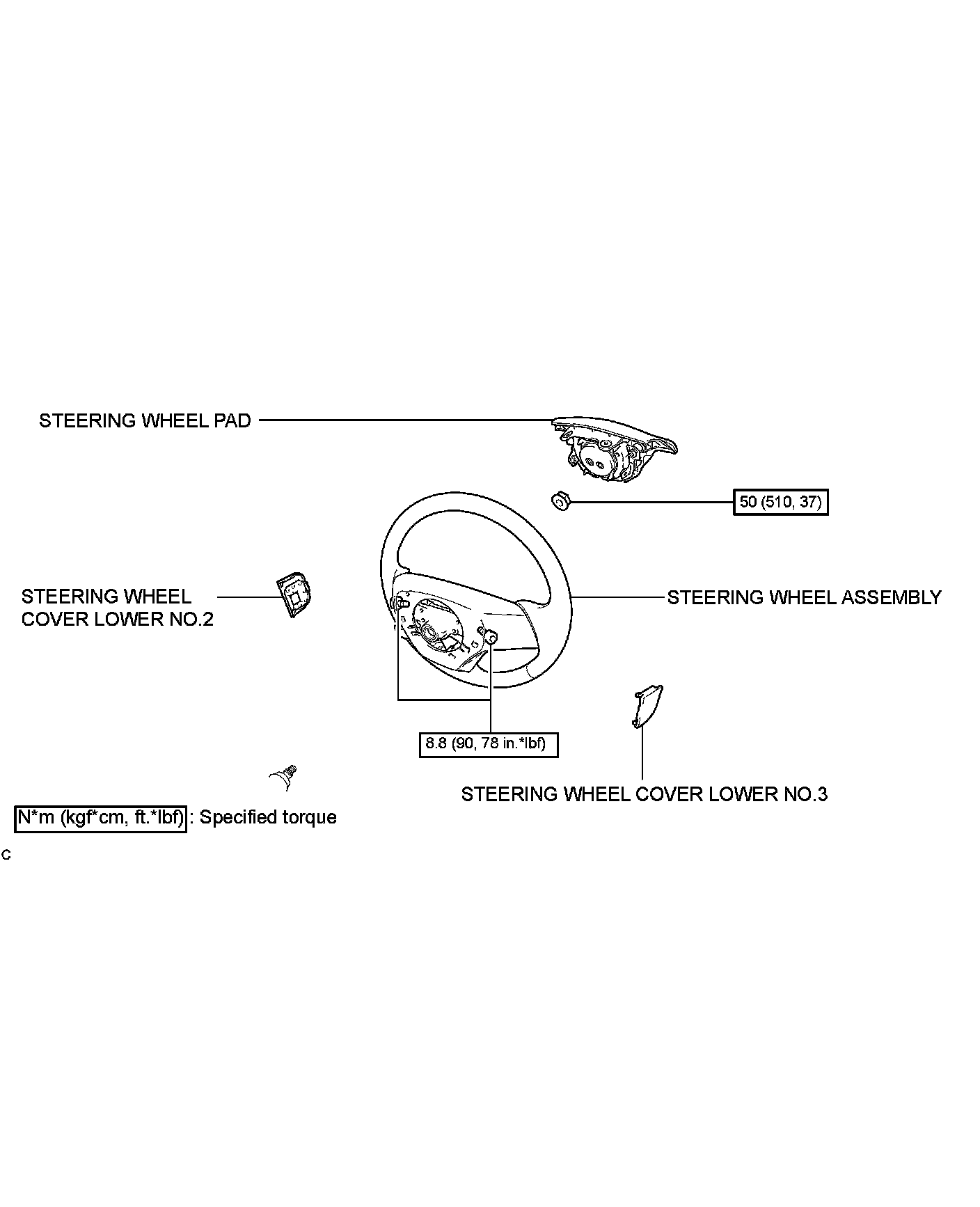

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for 2GR-FSE): COMPONENTS

STEERING COLUMN: STEERING COLUMN ASSEMBLY

ILLUSTRATION
