Inspection

A760H AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSPECTION

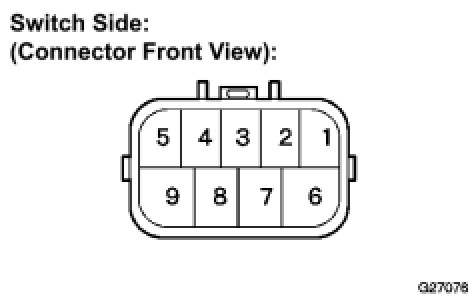

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

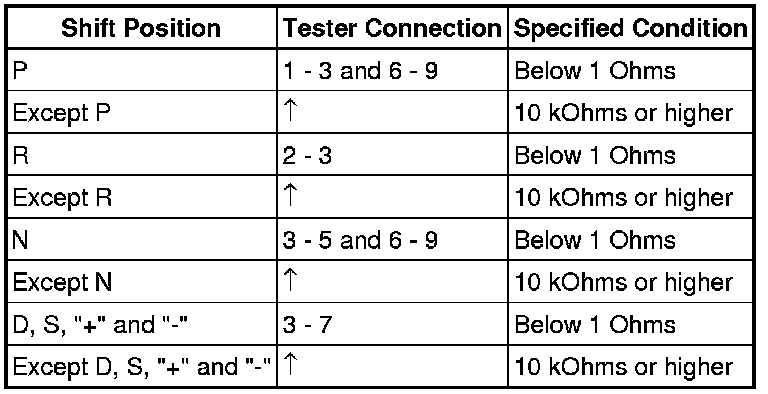

(a) Measure resistance according to the value(s) in the table below when the shift lever is moved to each position.
Resistance:
