Multiple Junction Connector: Locations

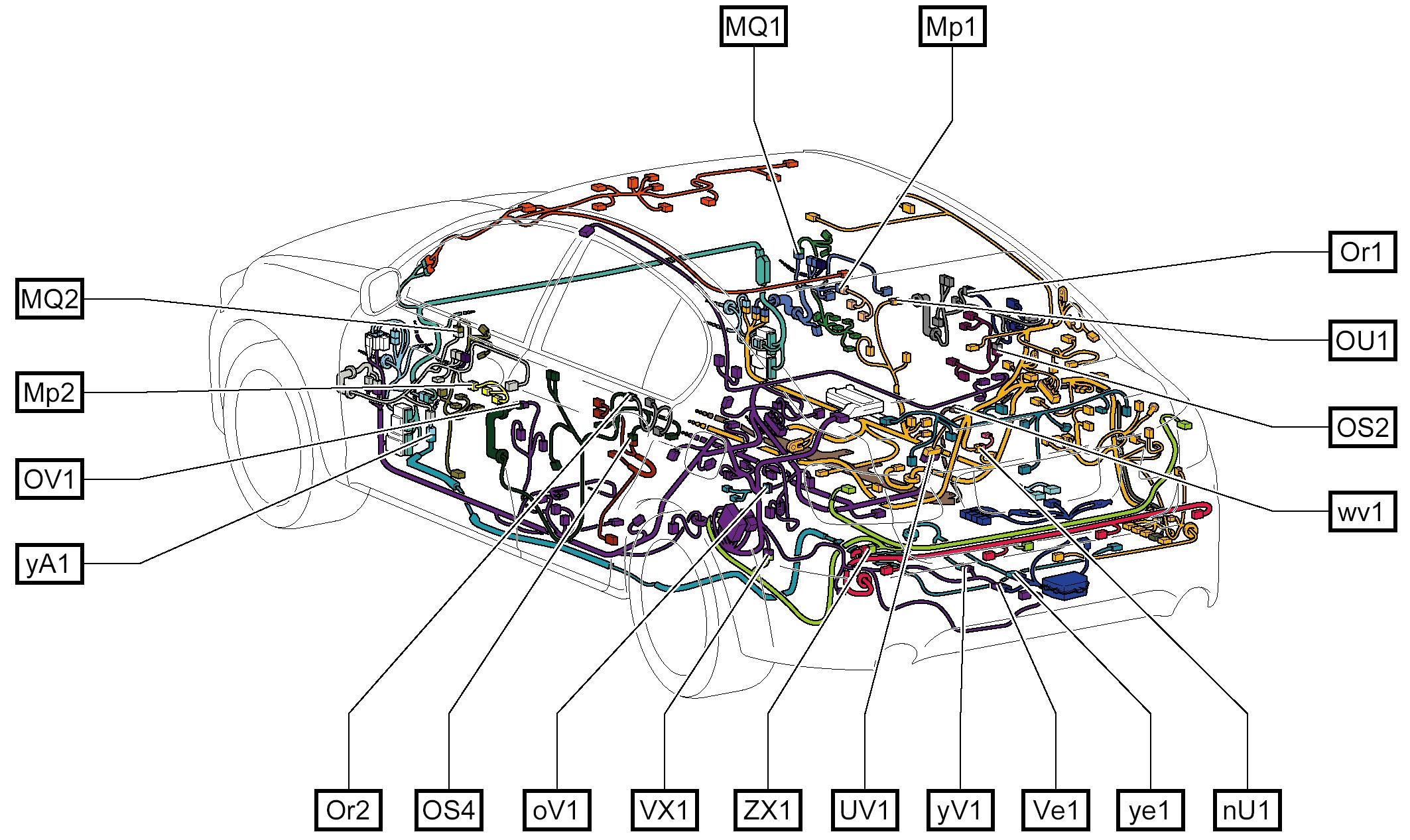

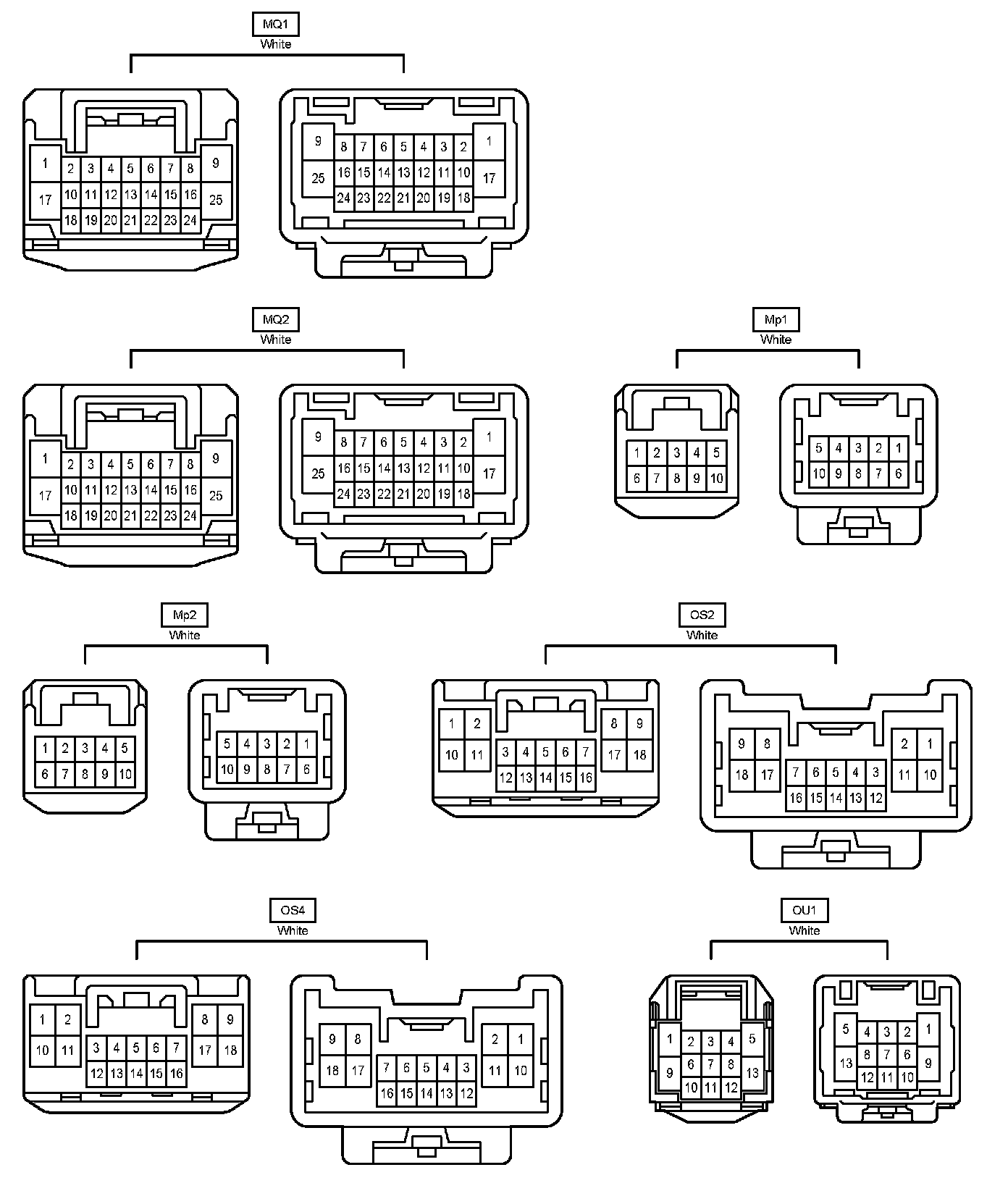

Mp1-ZX1:



Mp1-OU1:

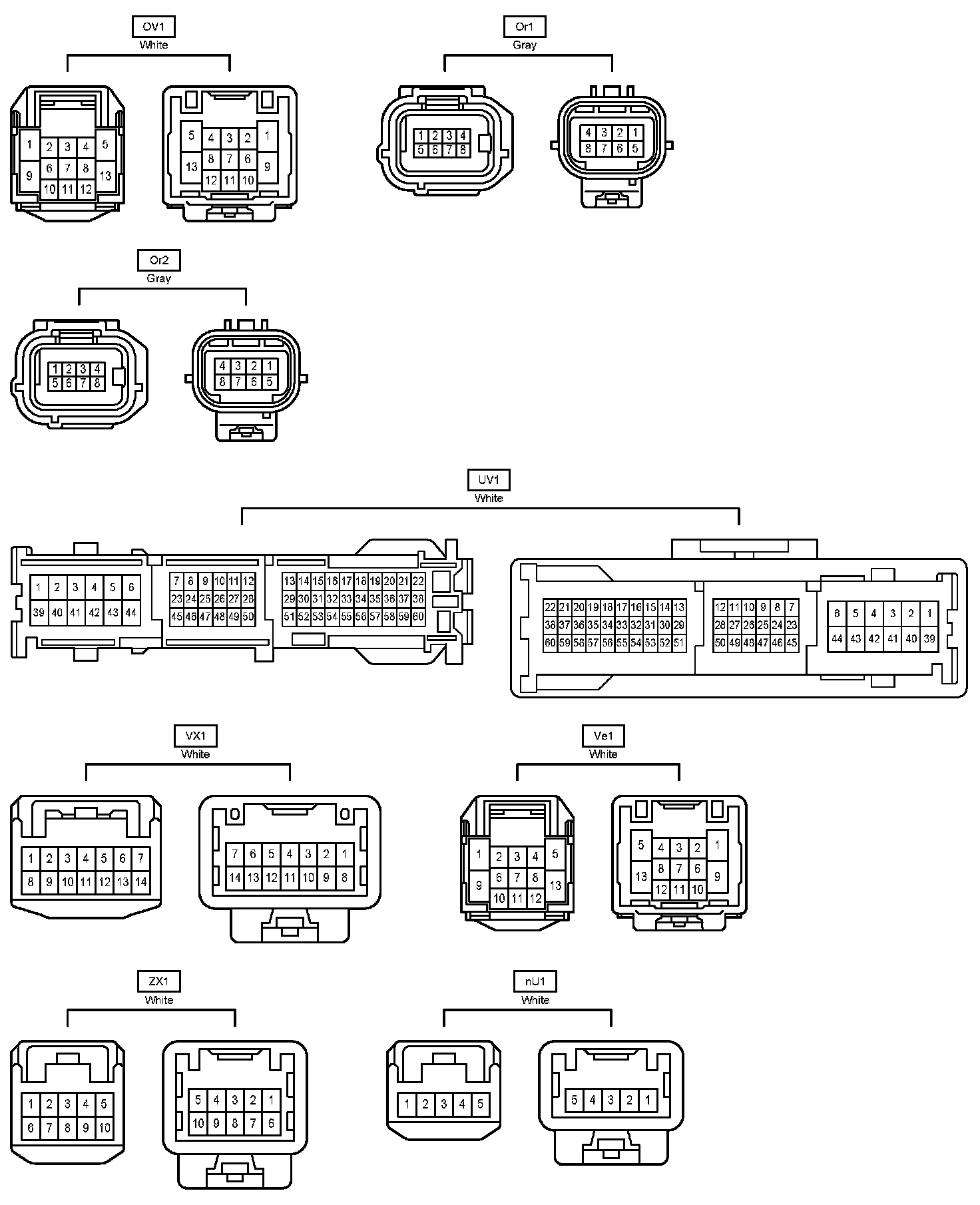

Or1-Zx1:

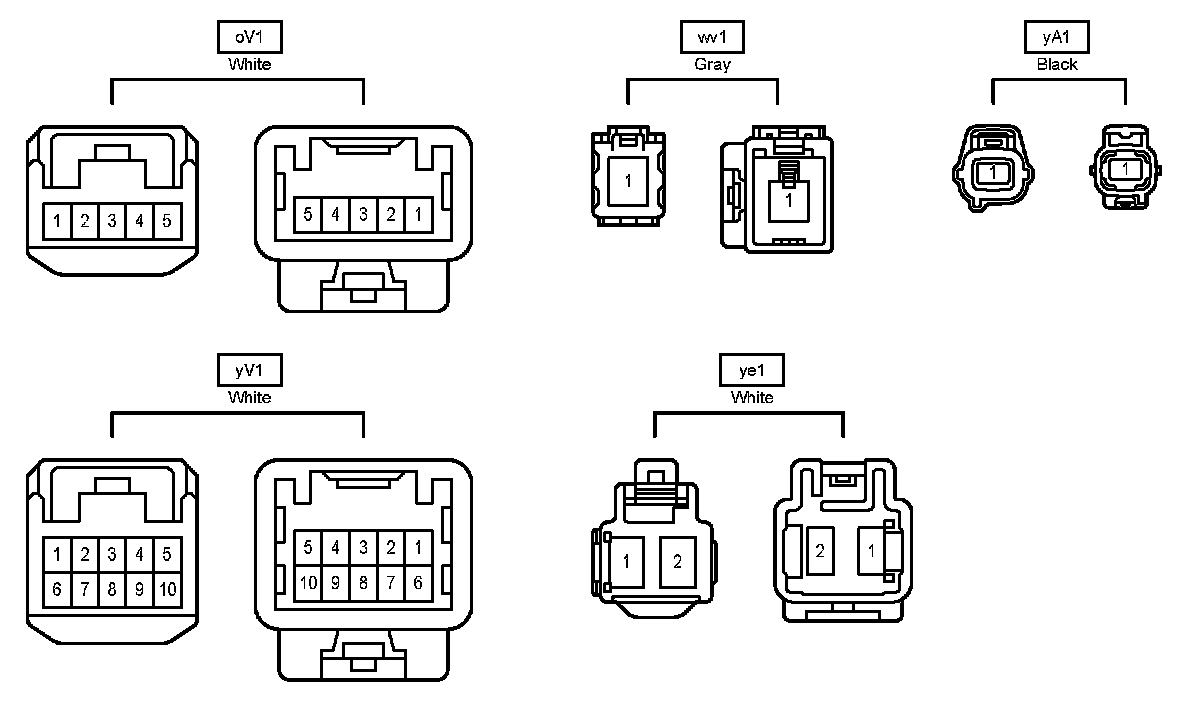

oV1-yV1:

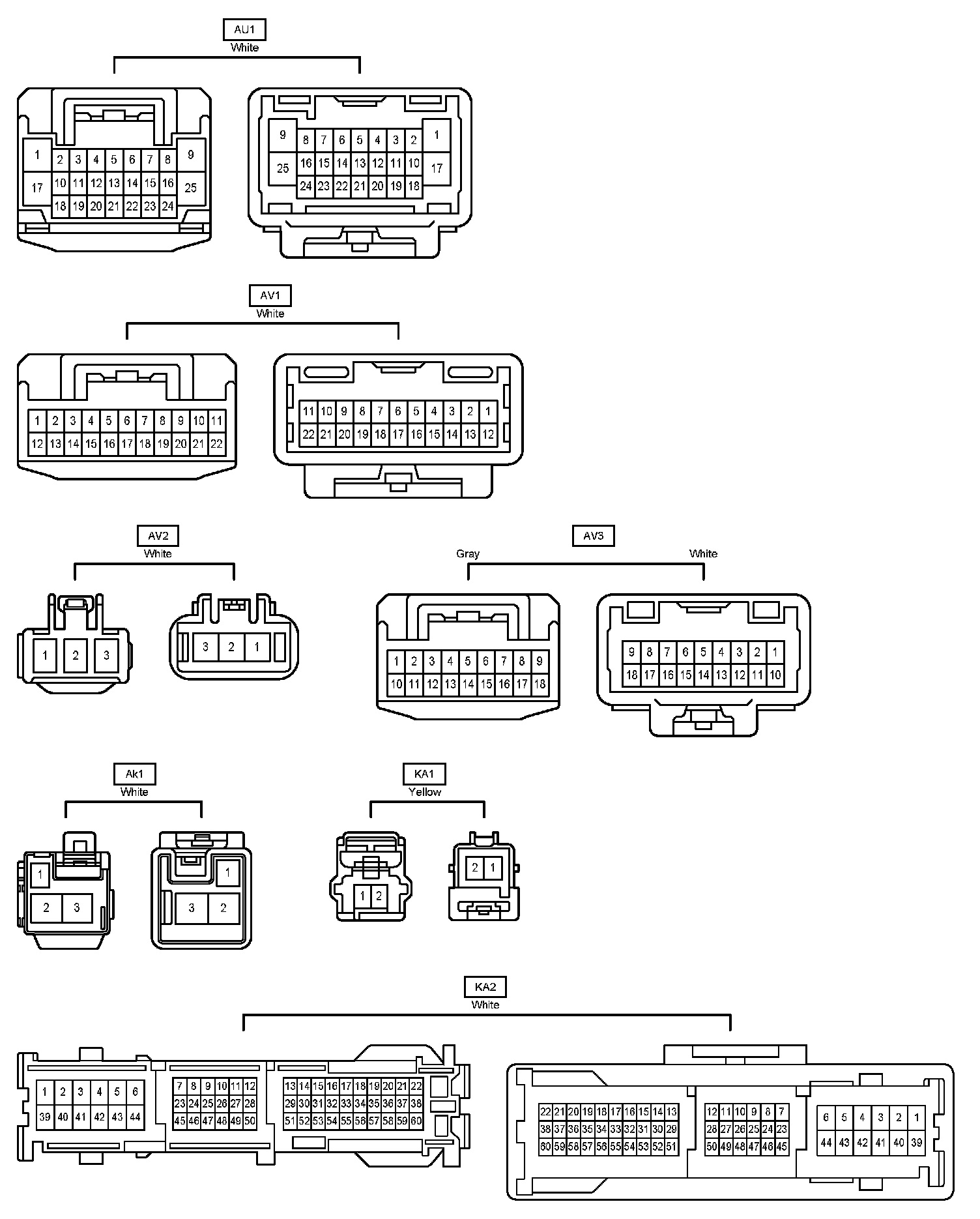

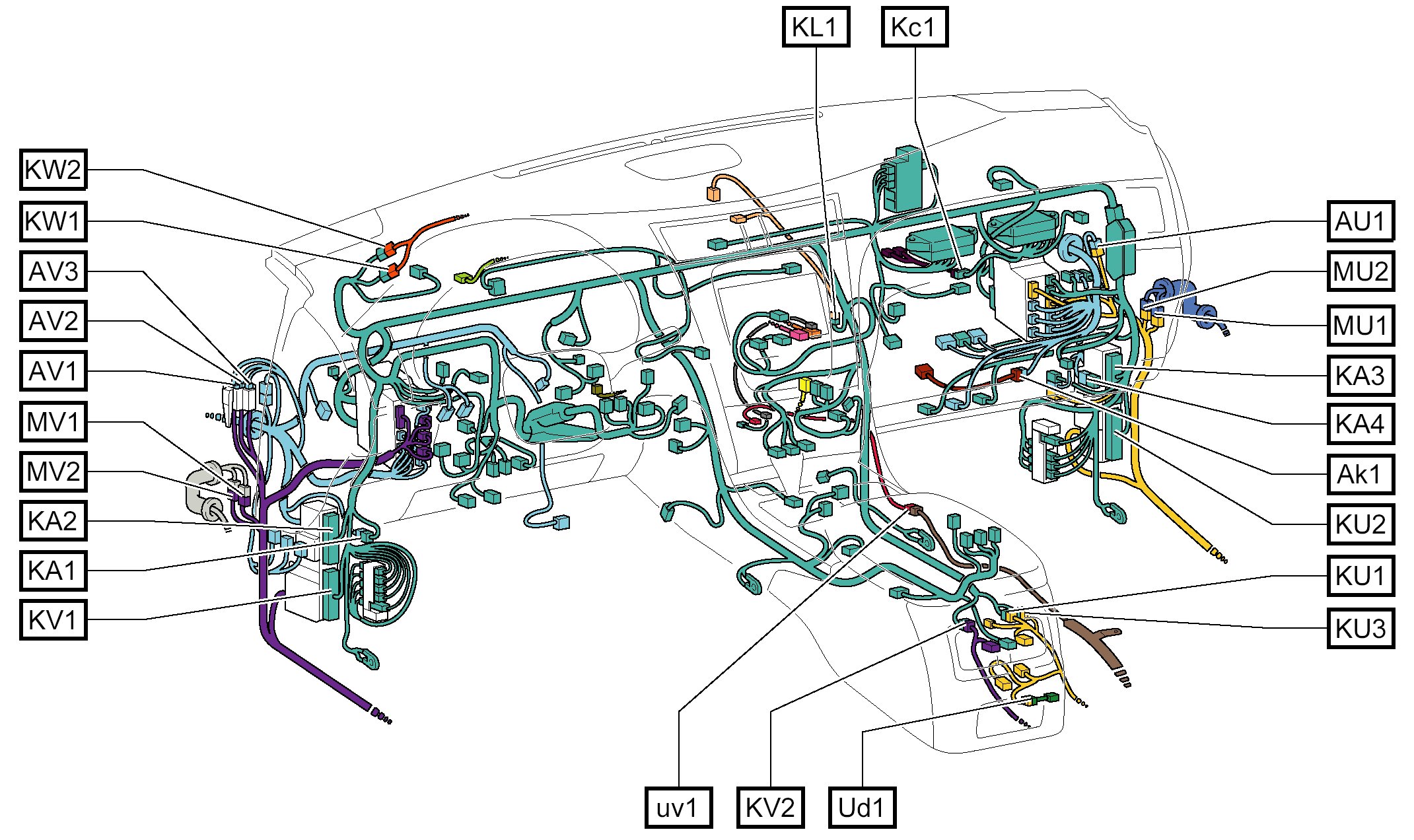

Ak1-uv1:



Ak1-KA2:

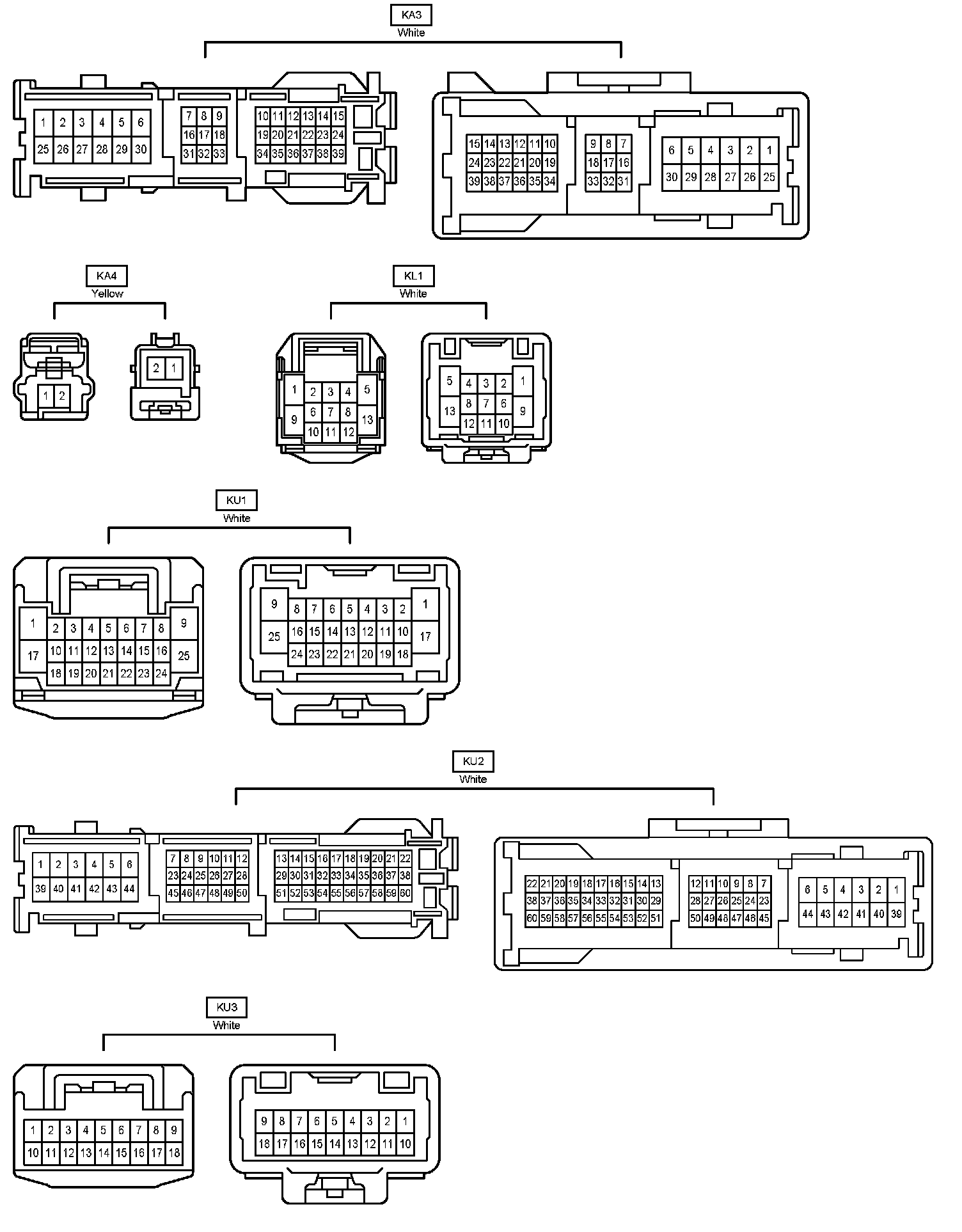

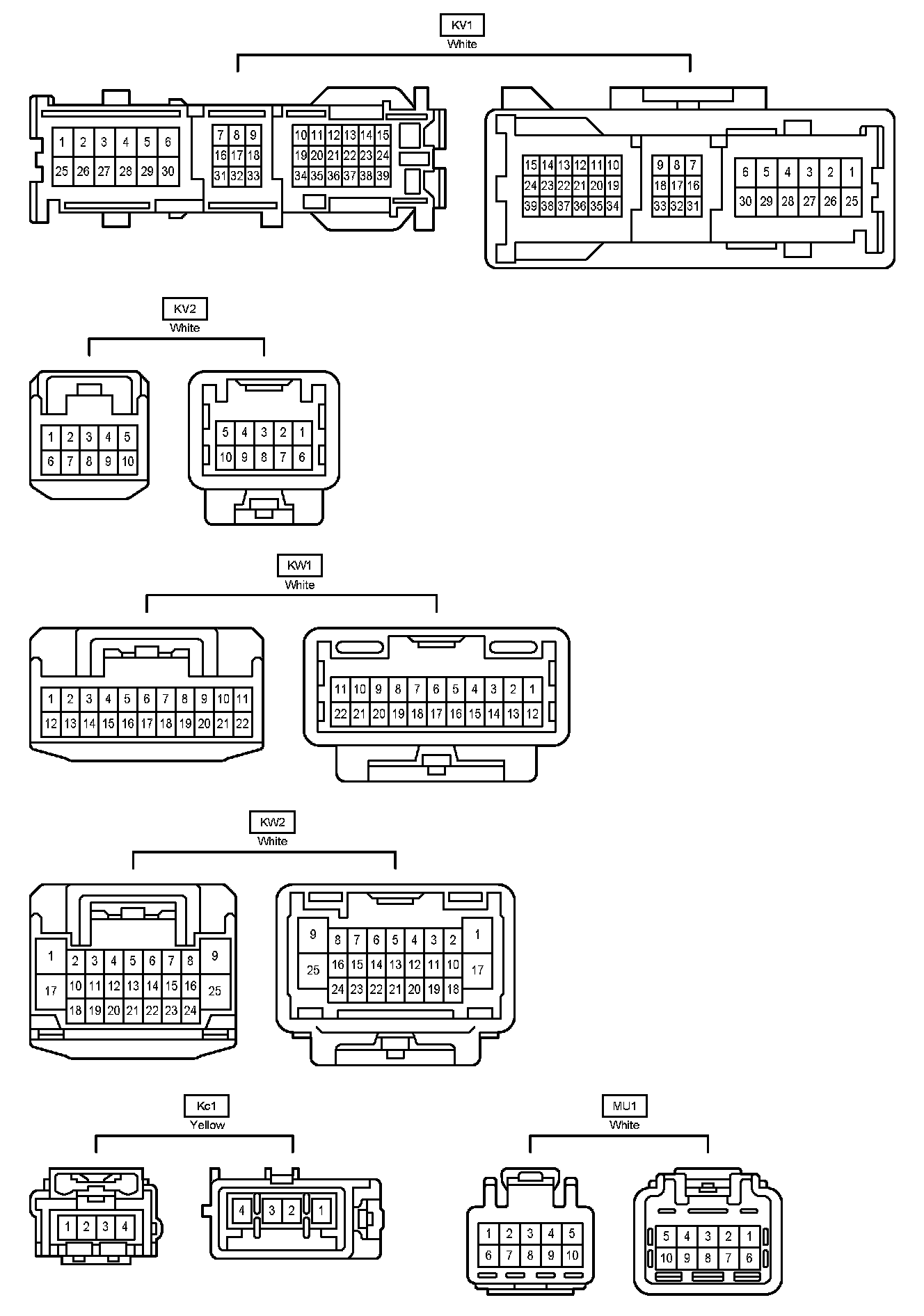

KA3-KU3:



Kc1-MU1:

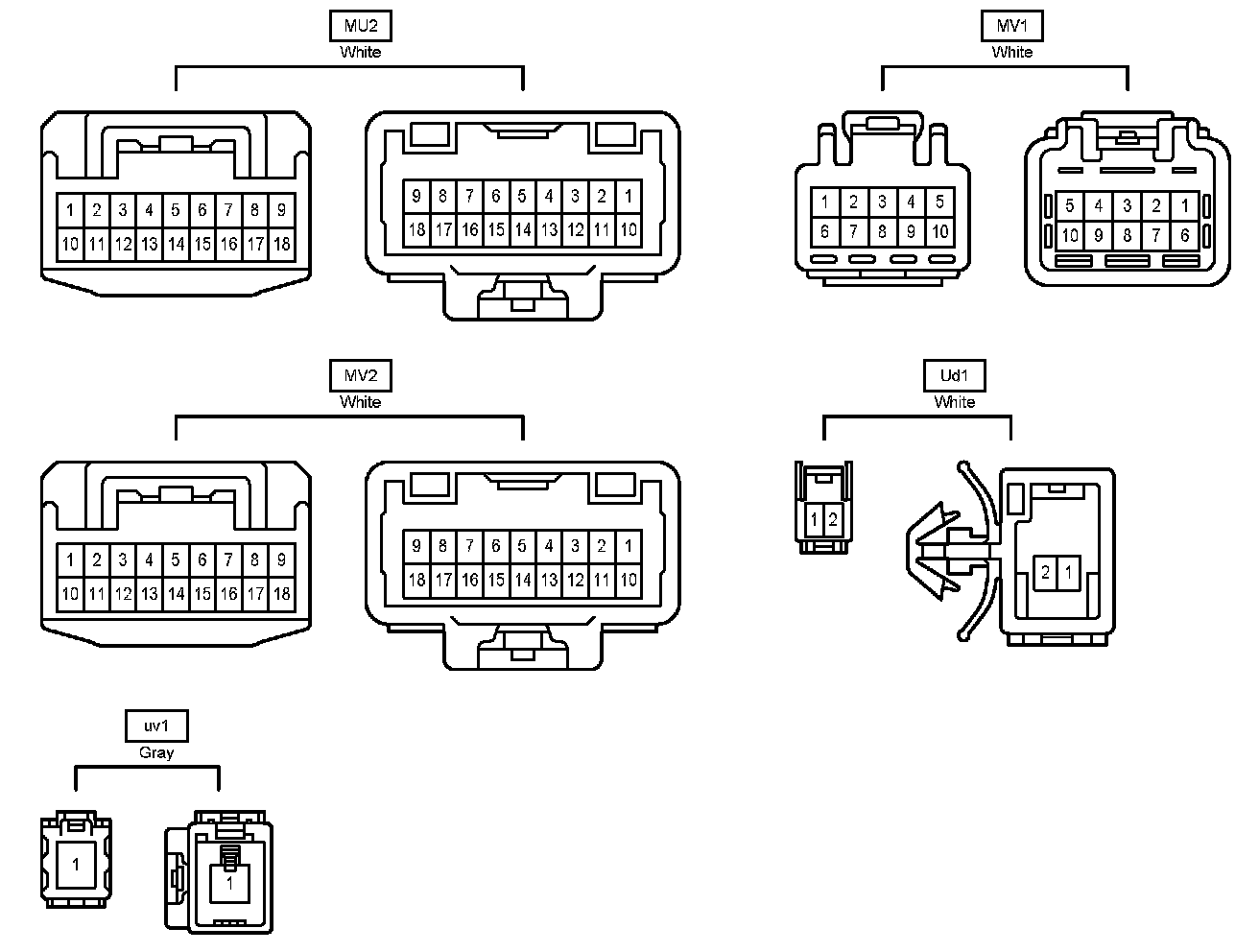

MU2-uv1:

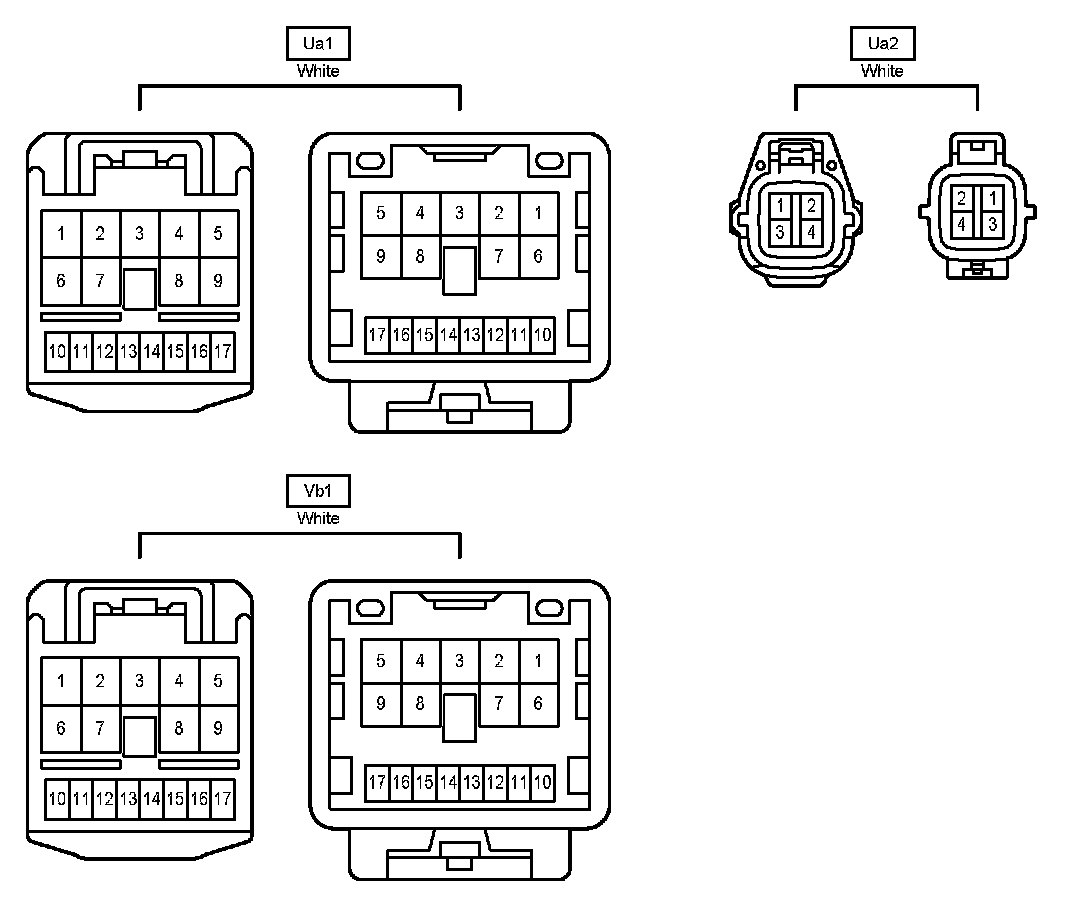

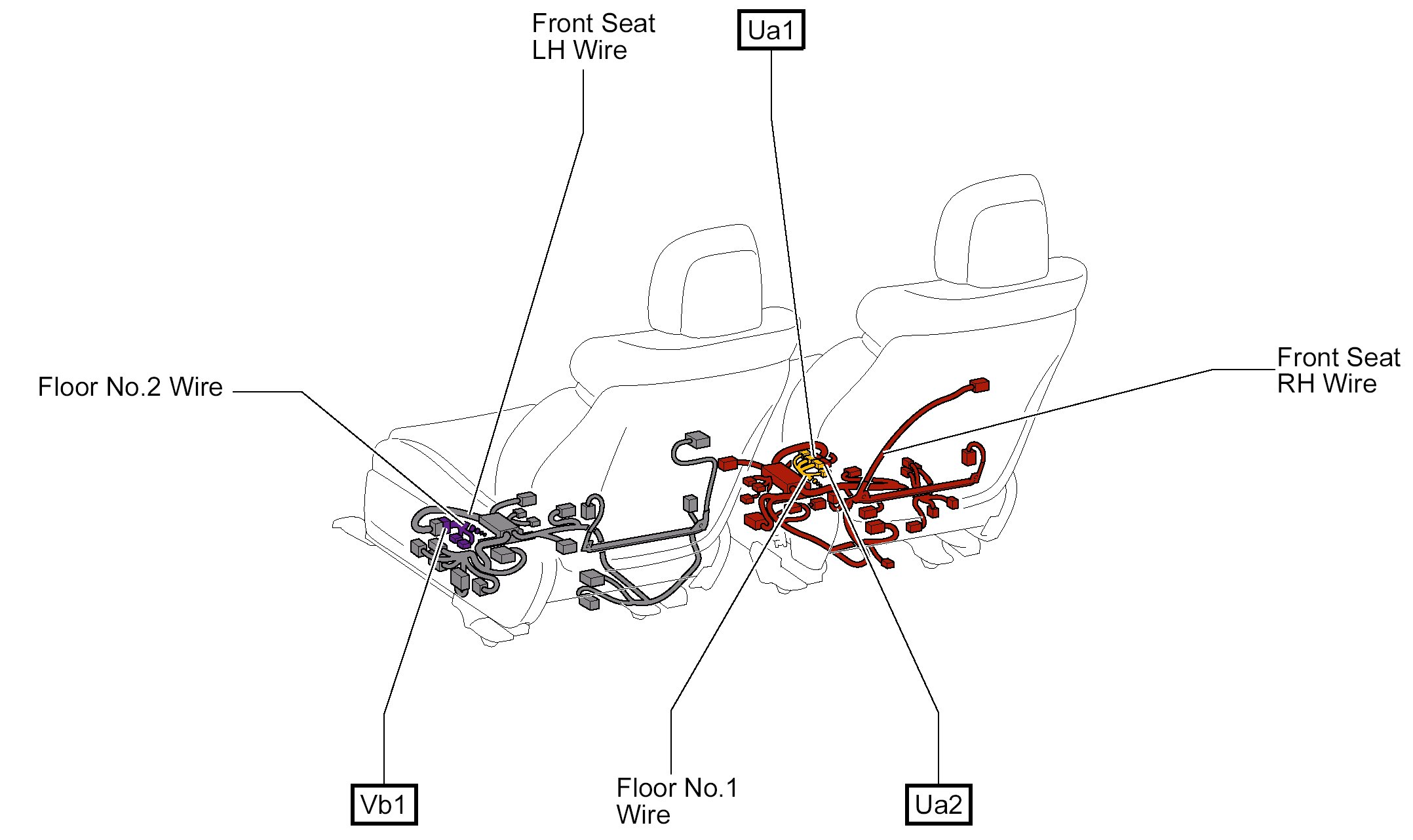

Ua1-Vb1:



Ua1-Vb1:
