Front Door Wire

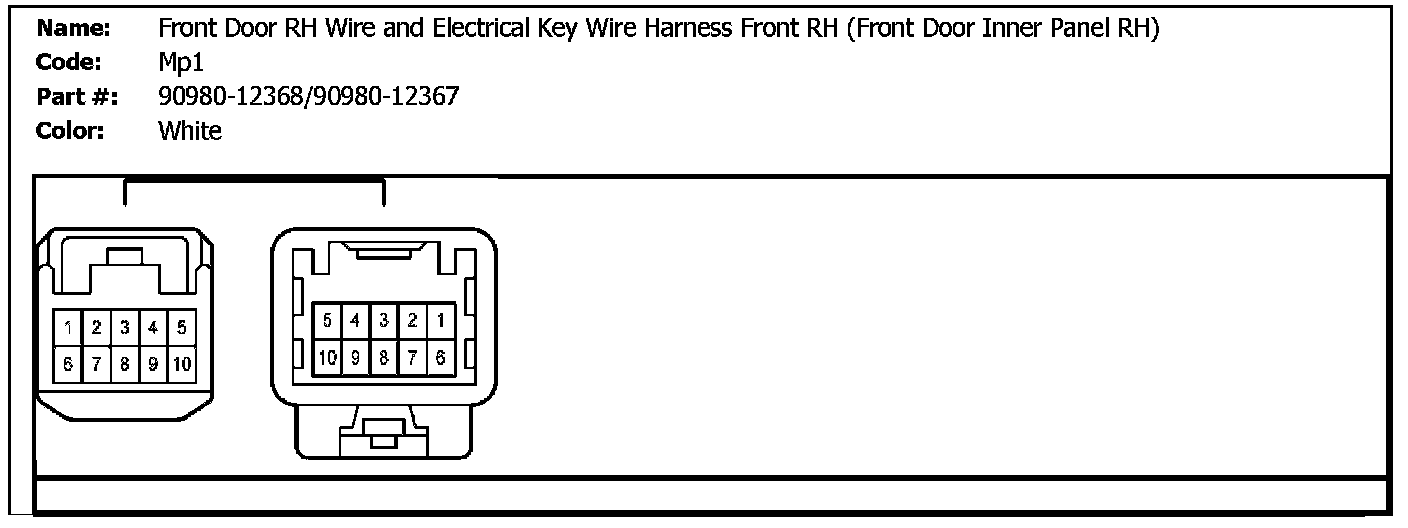

Mp1 (Front Door RH Wire and Electrical Key Wire Harness Front RH (Front Door Inner Panel RH)):

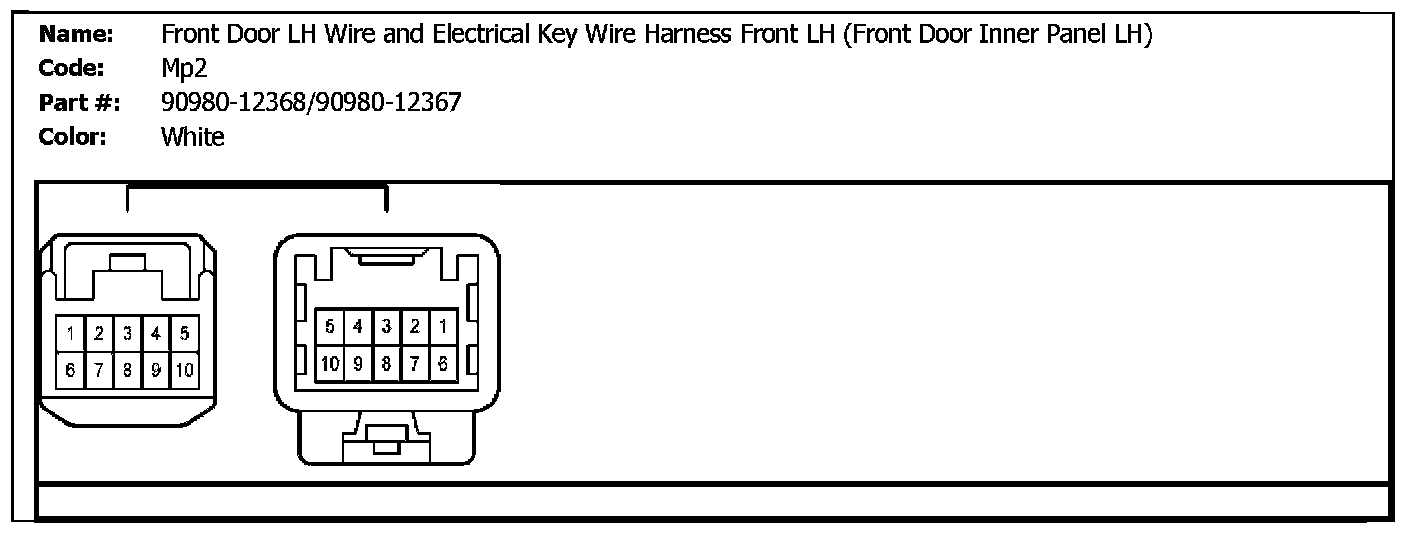

Mp2 (Front Door LH Wire and Electrical Key Wire Harness Front LH (Front Door Inner Panel LH)):

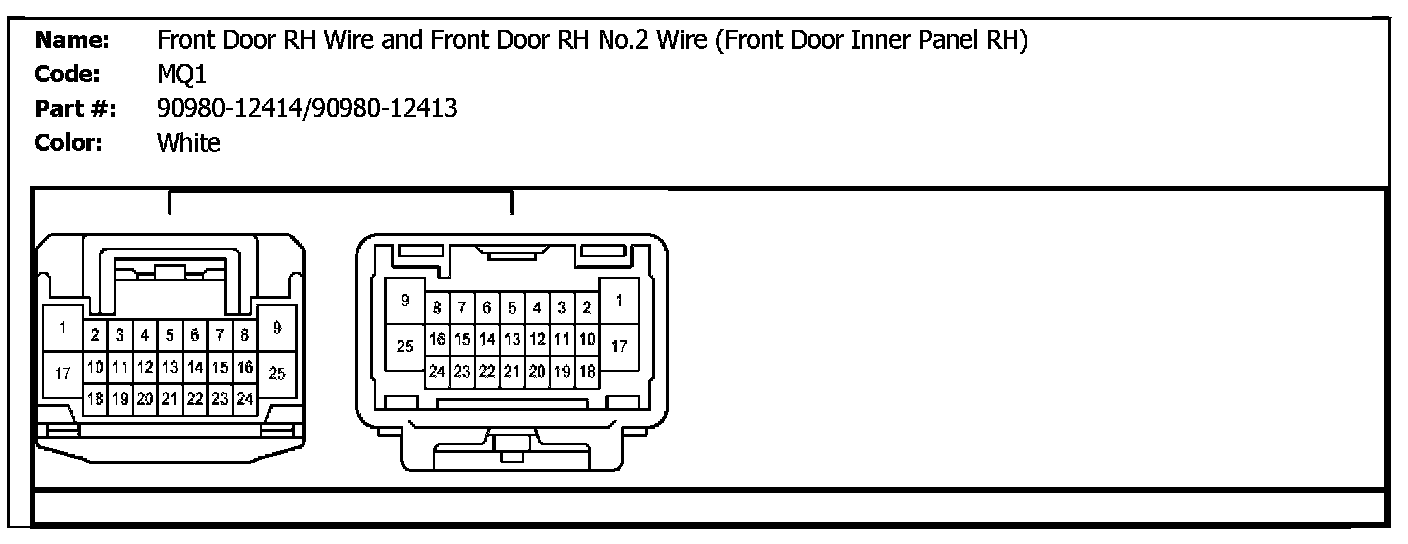

MQ1 (Front Door RH Wire and Front Door RH No.2 Wire (Front Door Inner Panel RH)):

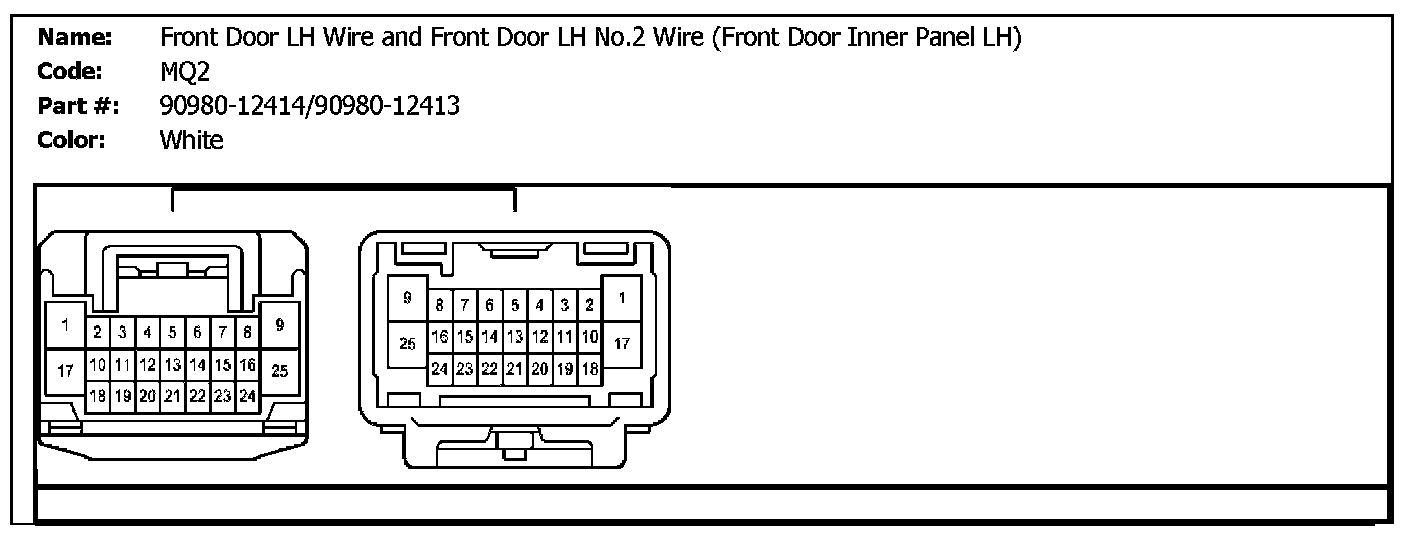

MQ2 (Front Door LH Wire and Front Door LH No.2 Wire (Front Door Inner Panel LH)):

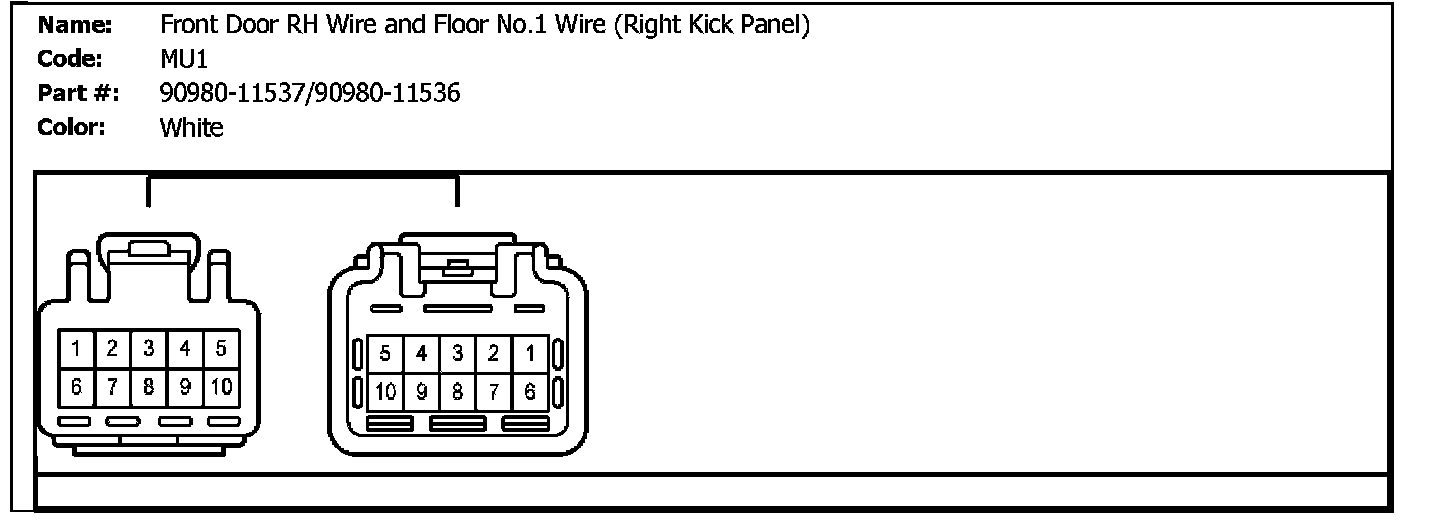

MU1 (Front Door RH Wire and Floor No.1 Wire (Right Kick Panel)):

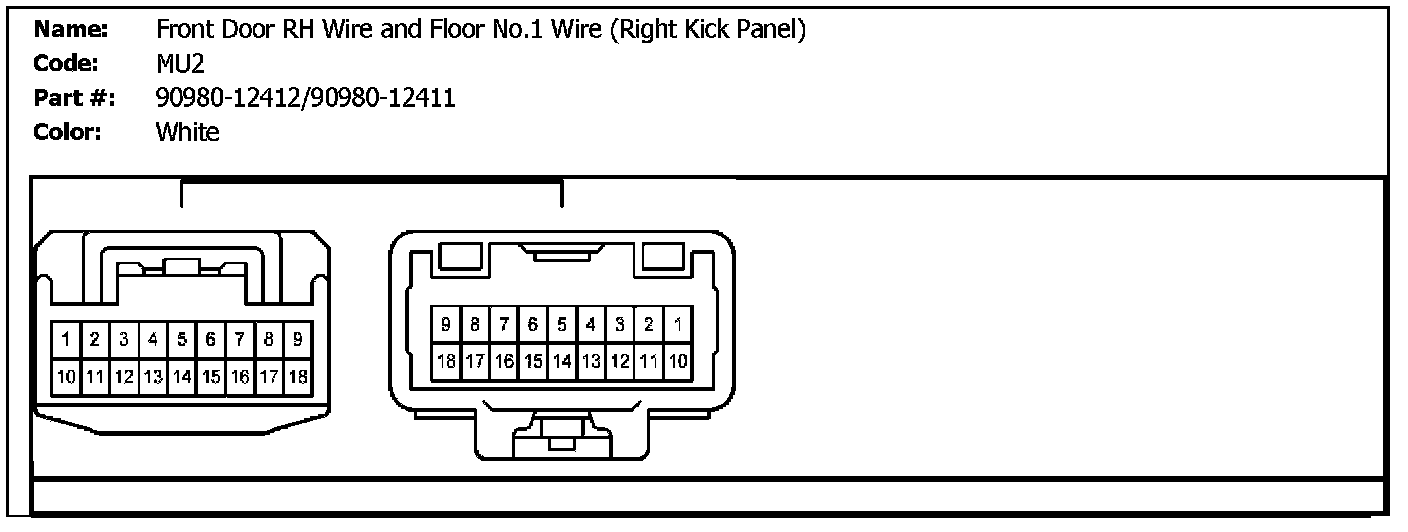

MU2 (Front Door RH Wire and Floor No.1 Wire (Right Kick Panel)):

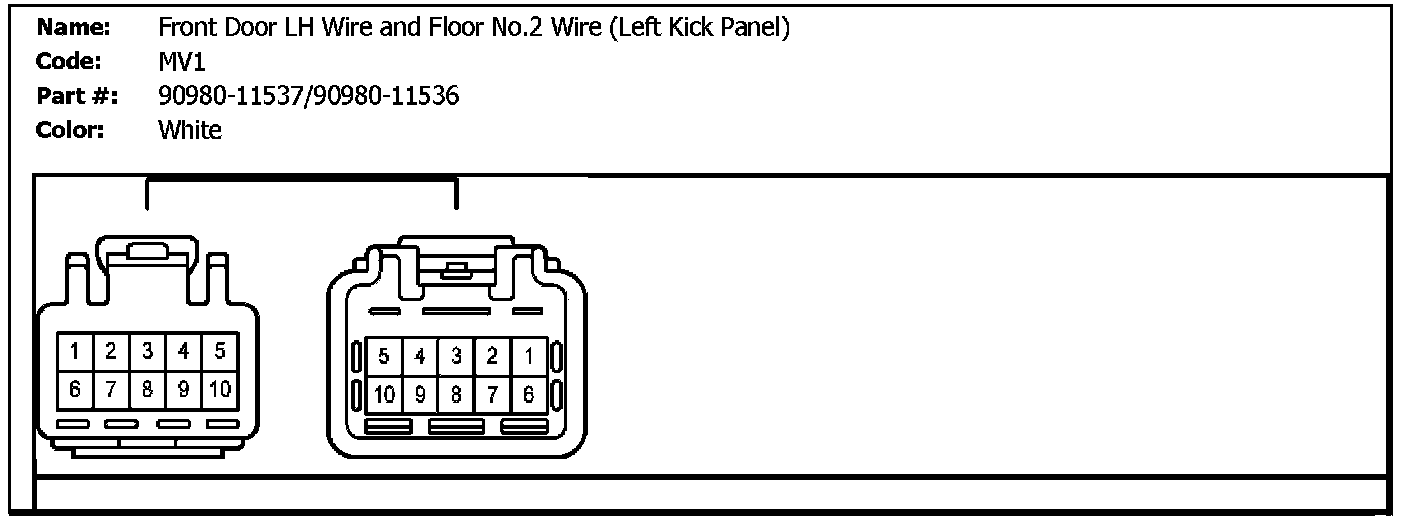

MV1 (Front Door LH Wire and Floor No.2 Wire (Left Kick Panel)):

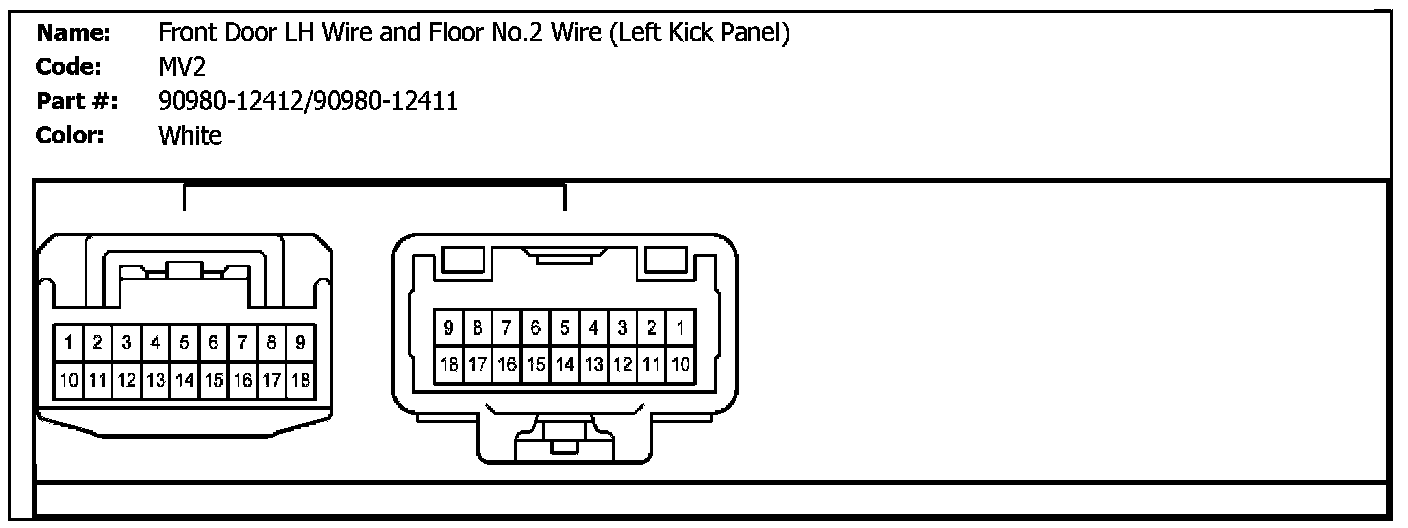

MV2 (Front Door LH Wire and Floor No.2 Wire (Left Kick Panel)):
