Floor Wire

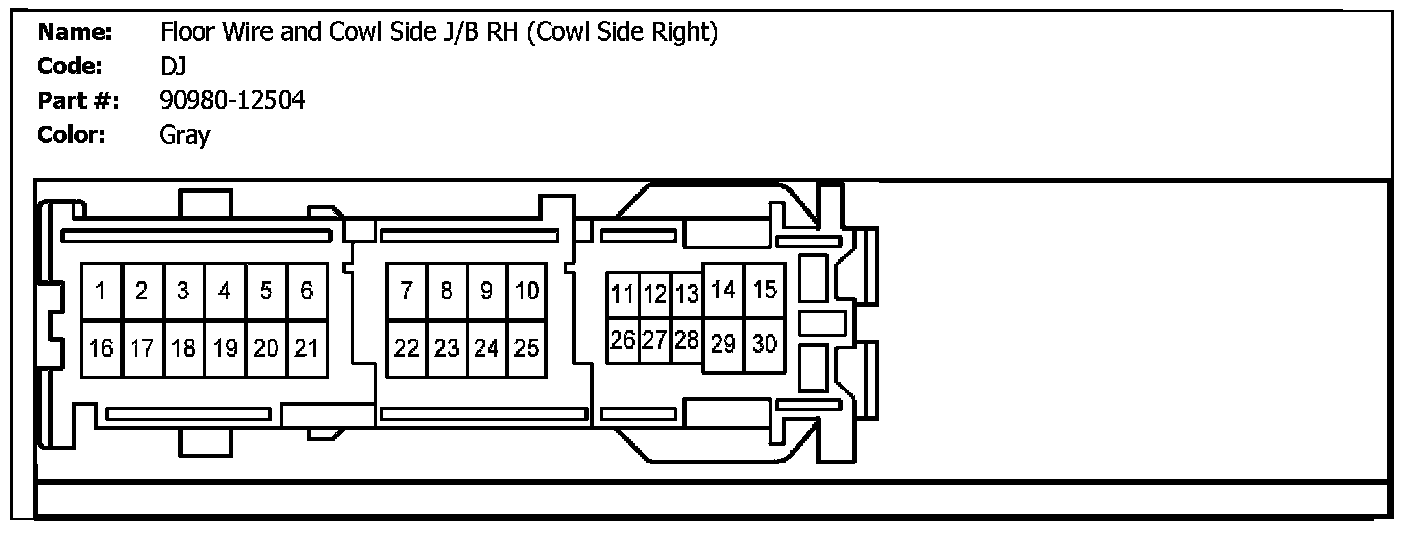

DJ (Floor Wire and Cowl Side J/B RH (Cowl Side Right)):

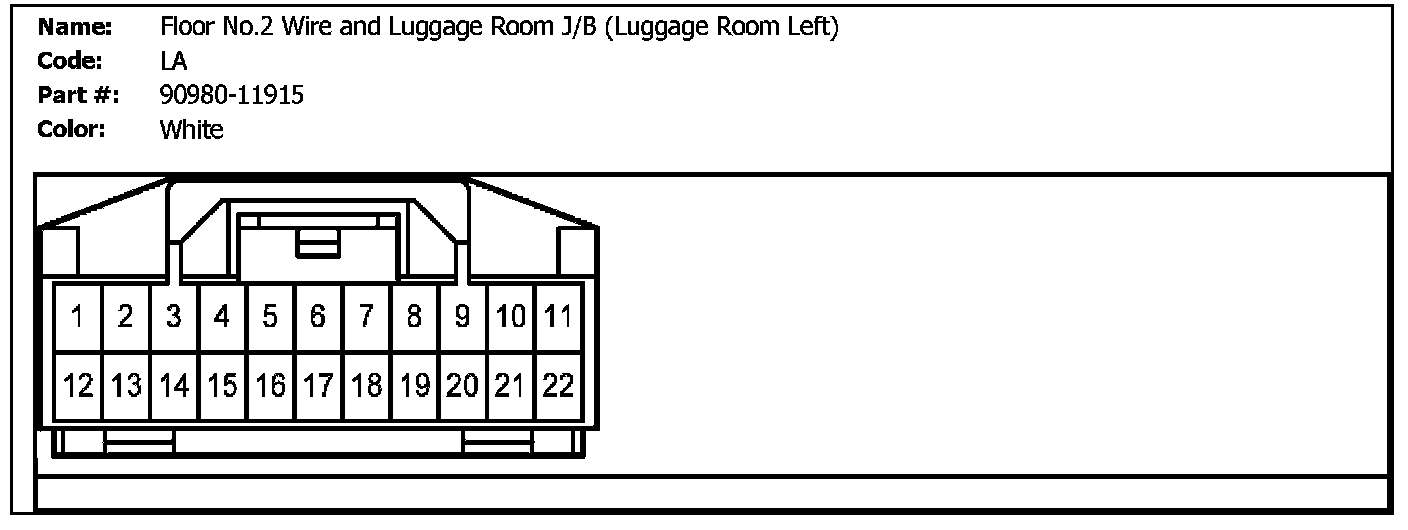

LA (Floor No.2 Wire and Luggage Room J/B (Luggage Room Left)):

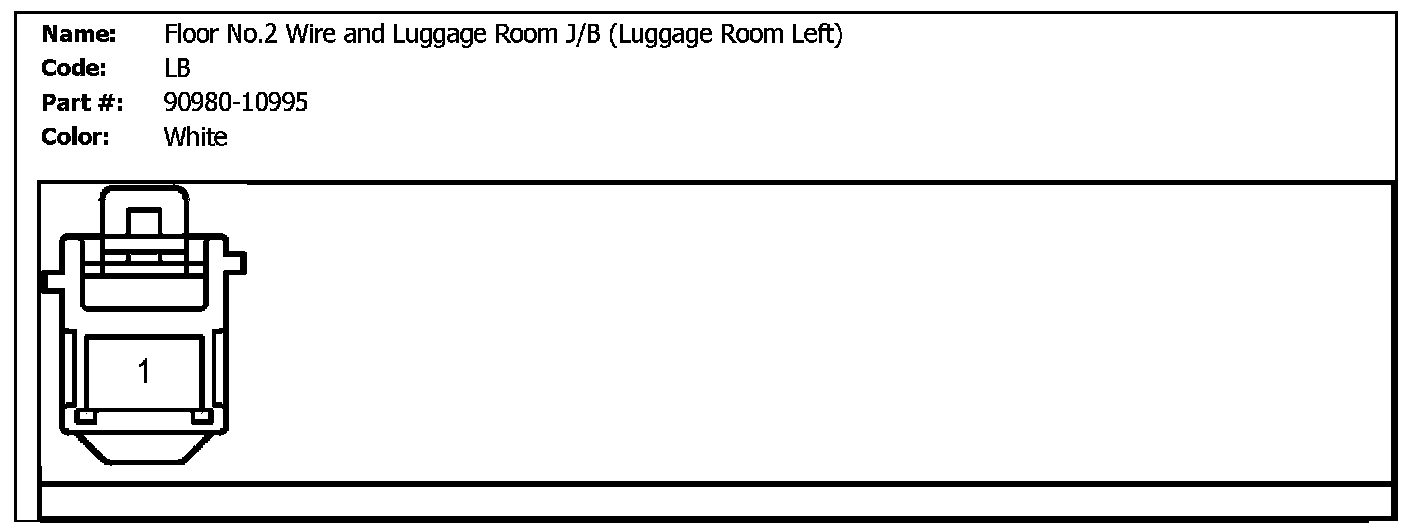

LB (Floor No.2 Wire and Luggage Room J/B (Luggage Room Left)):

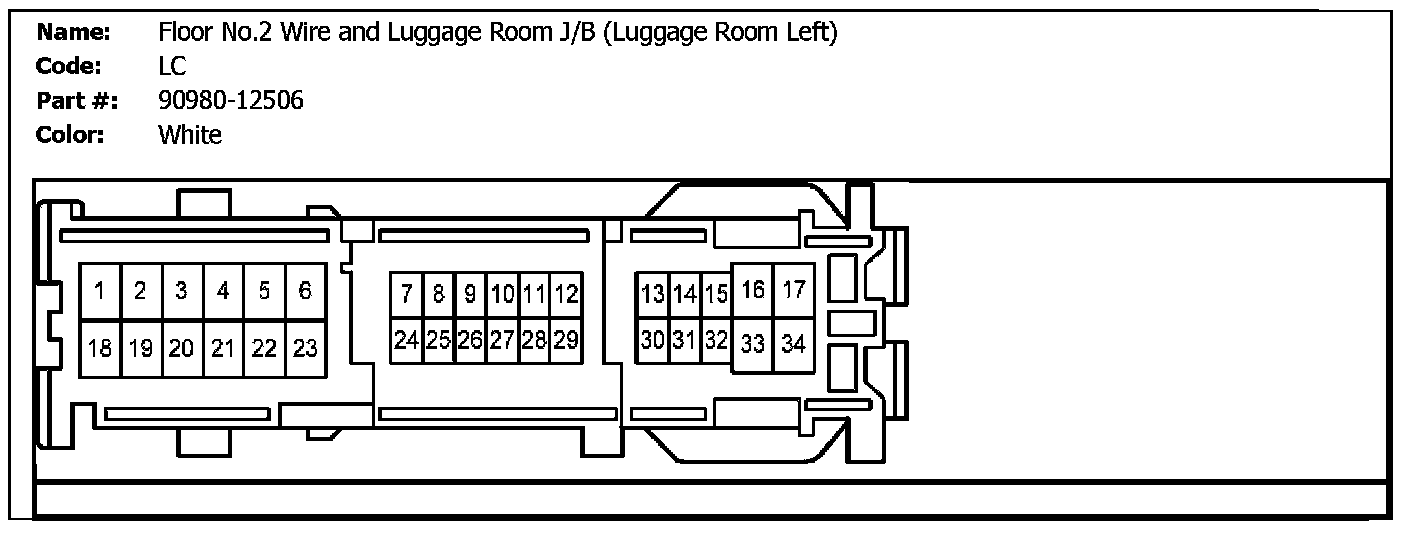

LC (Floor No.2 Wire and Luggage Room J/B (Luggage Room Left)):

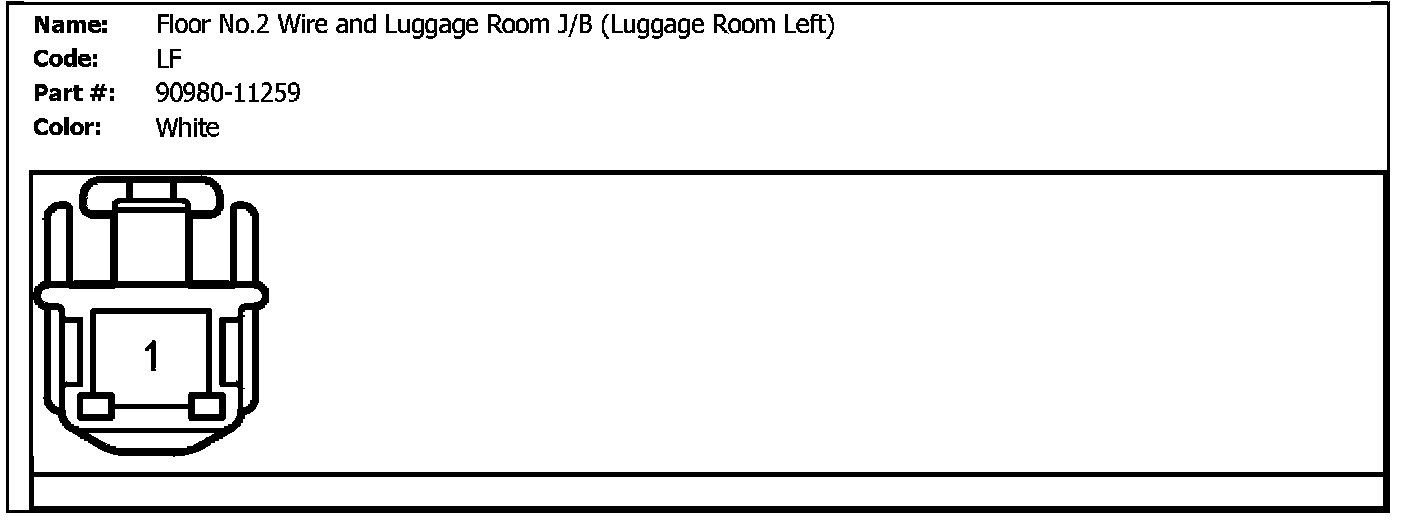

LF (Floor No.2 Wire and Luggage Room J/B (Luggage Room Left)):

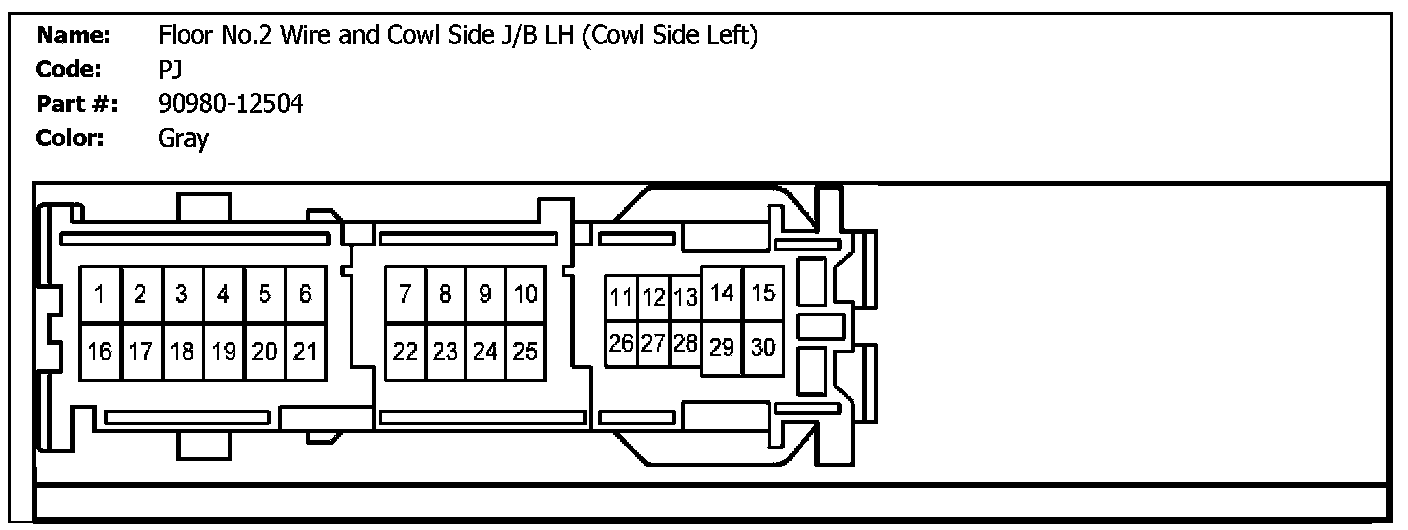

PJ (Floor No.2 Wire and Cowl Side J/B LH (Cowl Side Left)):

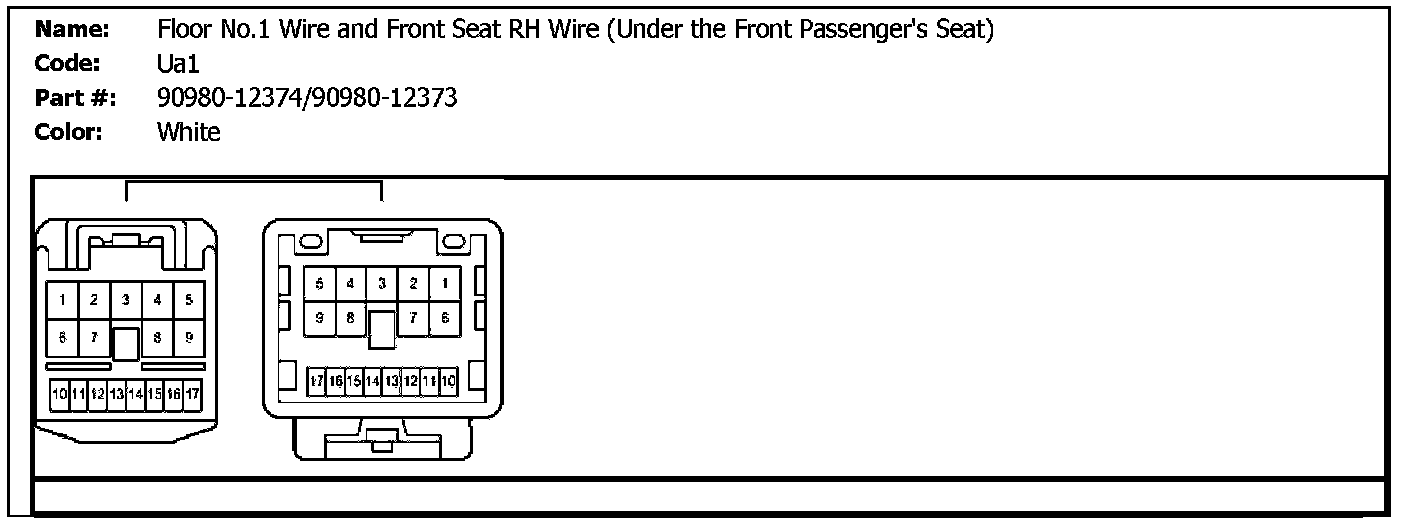

Ua1 (Floor No.1 Wire and Front Seat RH Wire (Under the Front Passenger's Seat)):

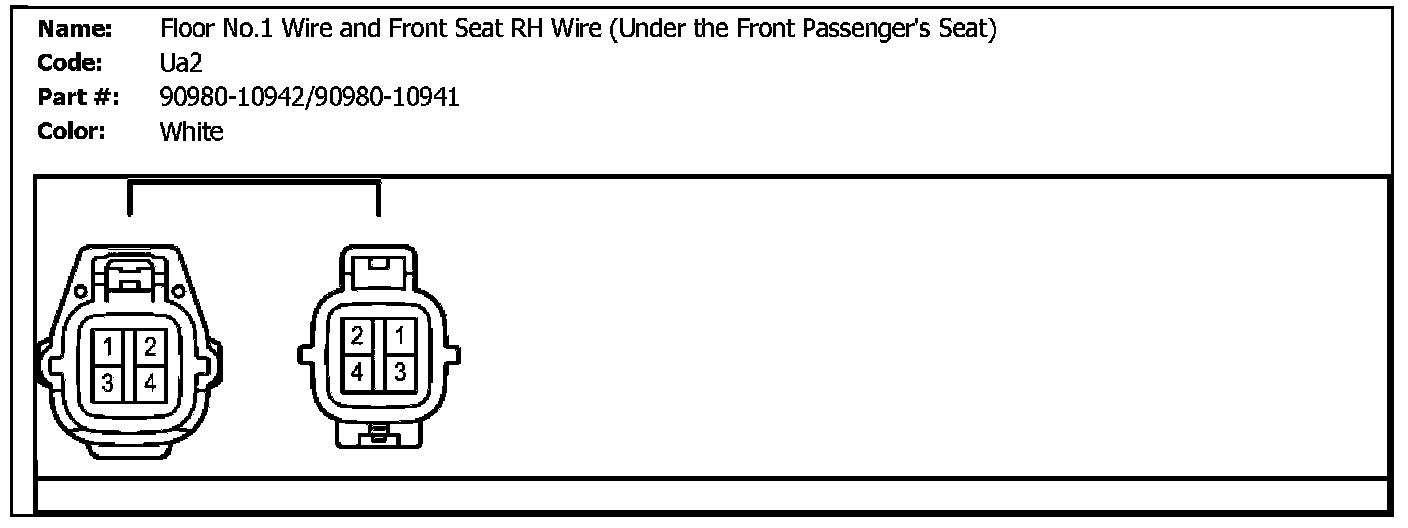

Ua2 (Floor No.1 Wire and Front Seat RH Wire (Under the Front Passenger's Seat)):

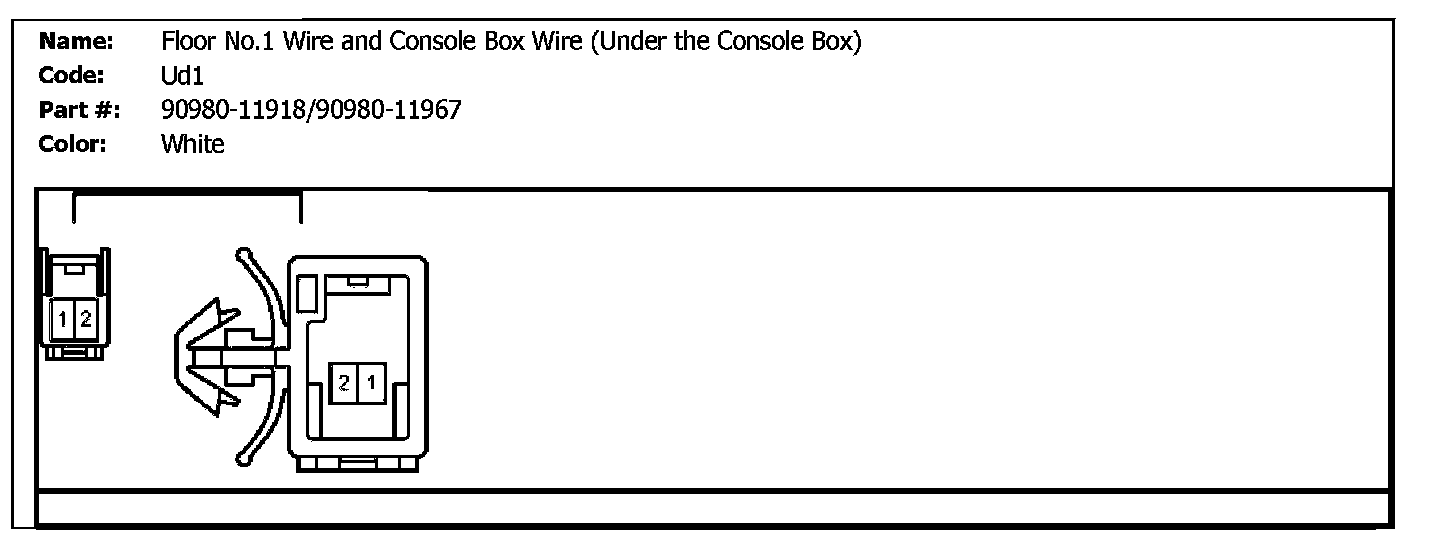

Ud1 (Floor No.1 Wire and Console Box Wire (Under the Console Box)):

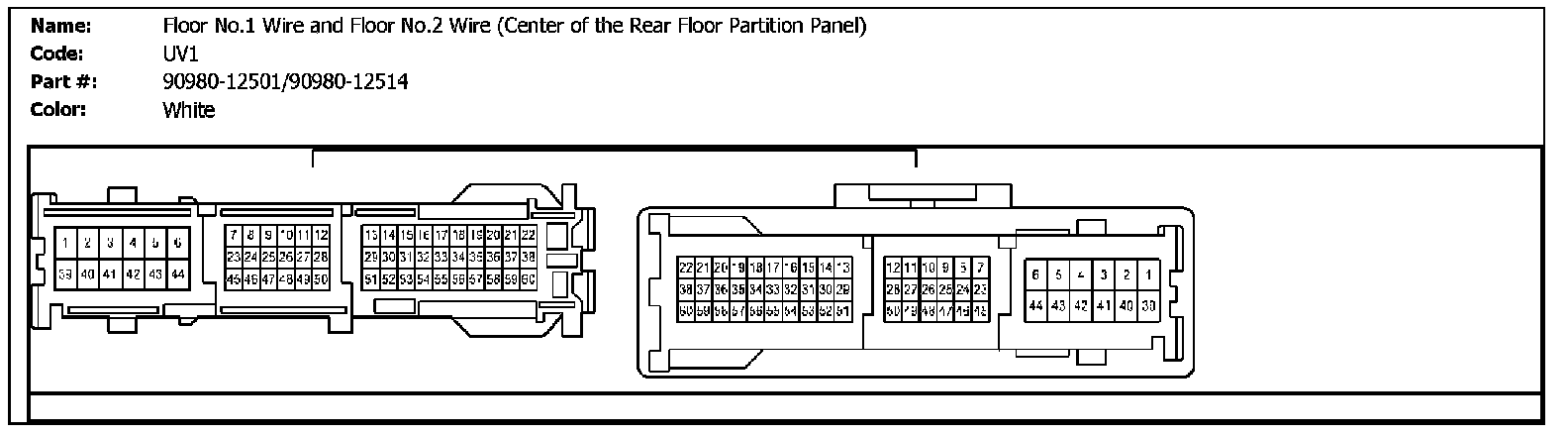

UV1 (Floor No.1 Wire and Floor No.2 Wire (Center of the Rear Floor Partition Panel)):

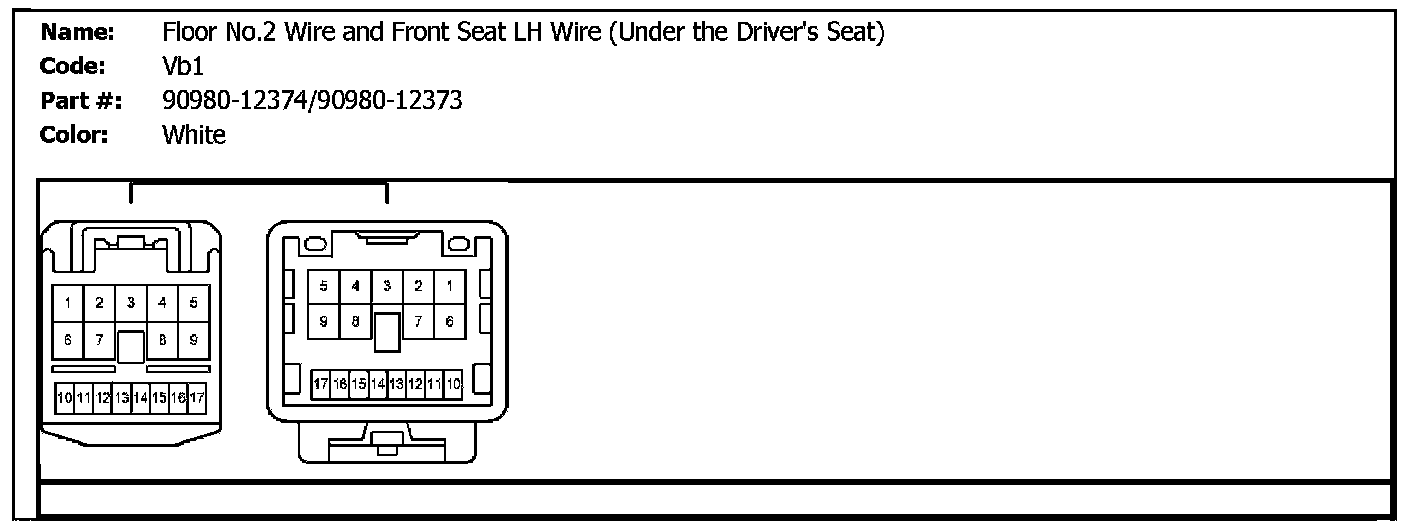

Vb1 (Floor No.2 Wire and Front Seat LH Wire (Under the Driver's Seat)):

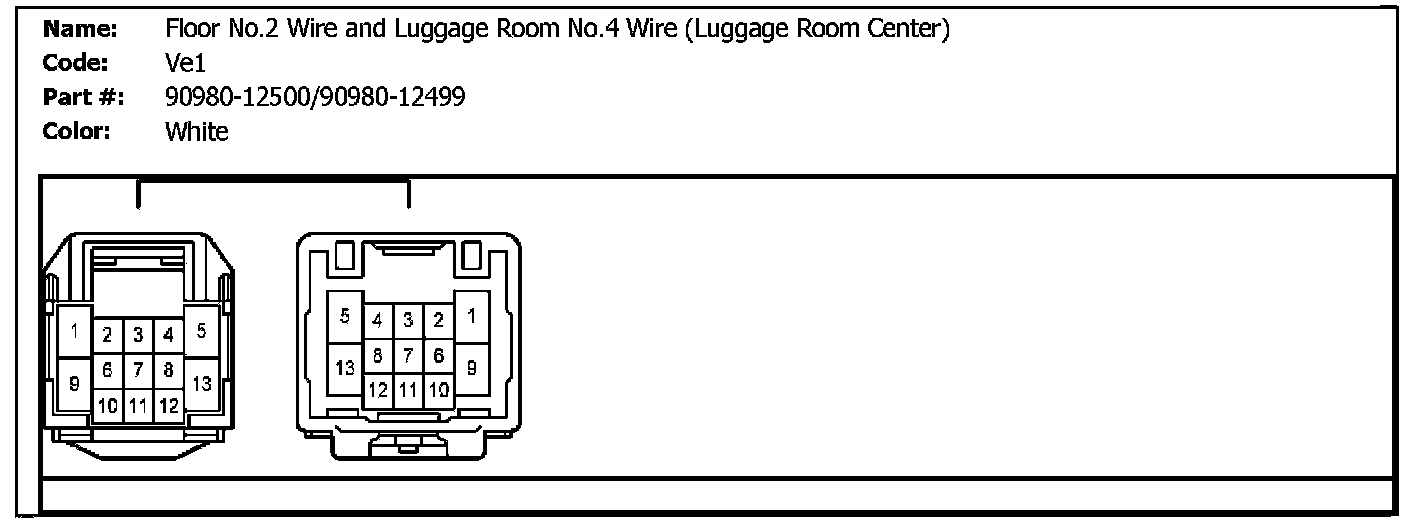

Ve1 (Floor No.2 Wire and Luggage Room No.4 Wire (Luggage Room Center)):

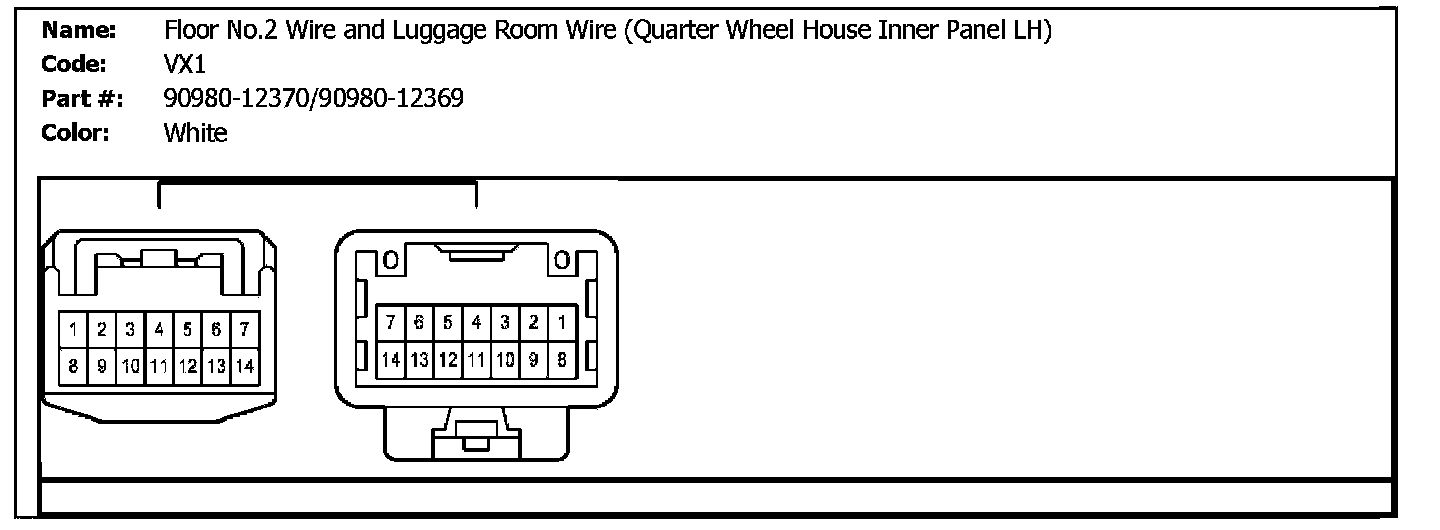

VX1 (Floor No.2 Wire and Luggage Room Wire (Quarter Wheel House Inner Panel LH)):

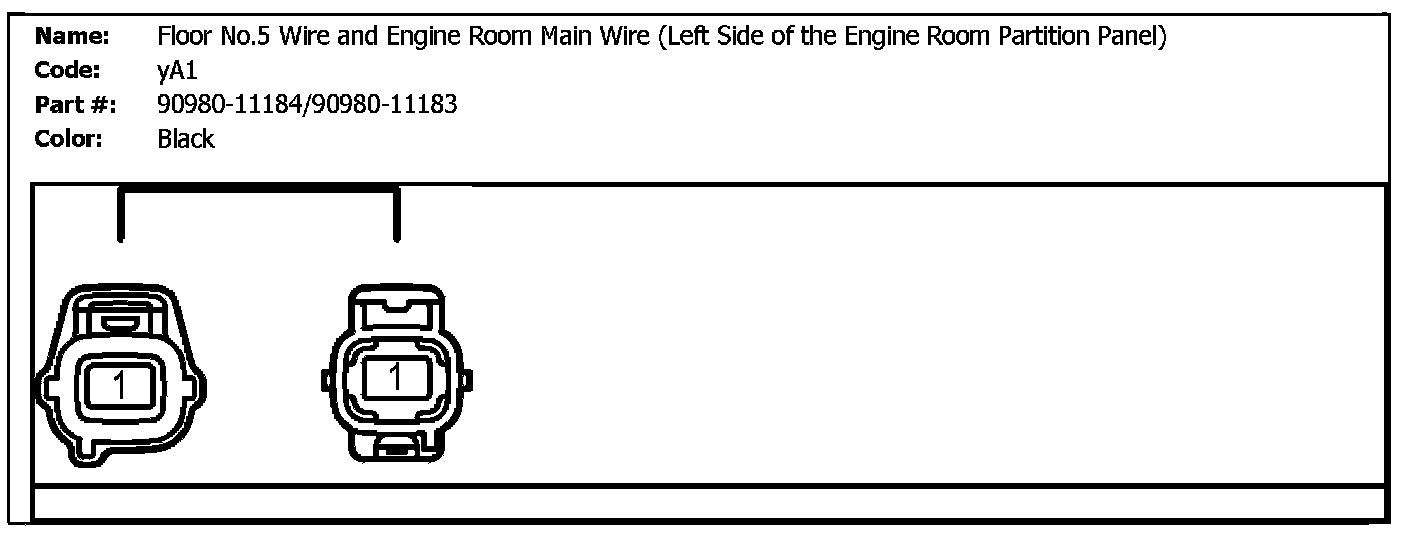

yA1 (Floor No.5 Wire and Engine Room Main Wire (Left Side Of the Engine Room Partition Panel)):

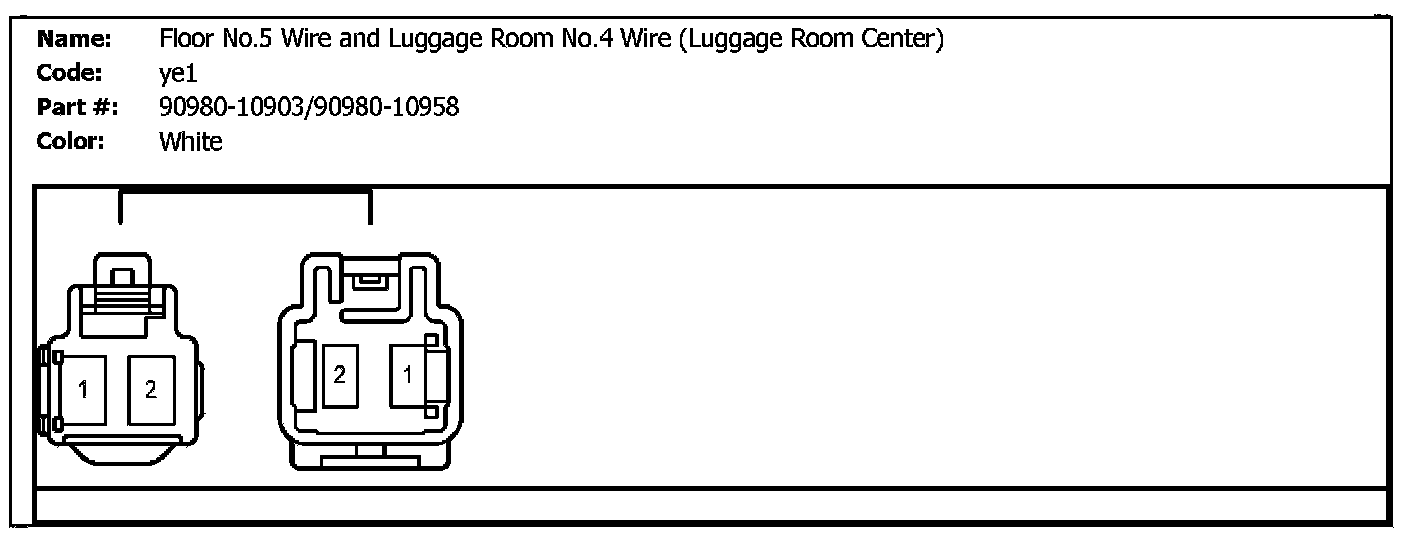

ye1 (Floor No.5 Wire and Luggage Room No.4 Wire (Luggage Room Center)):

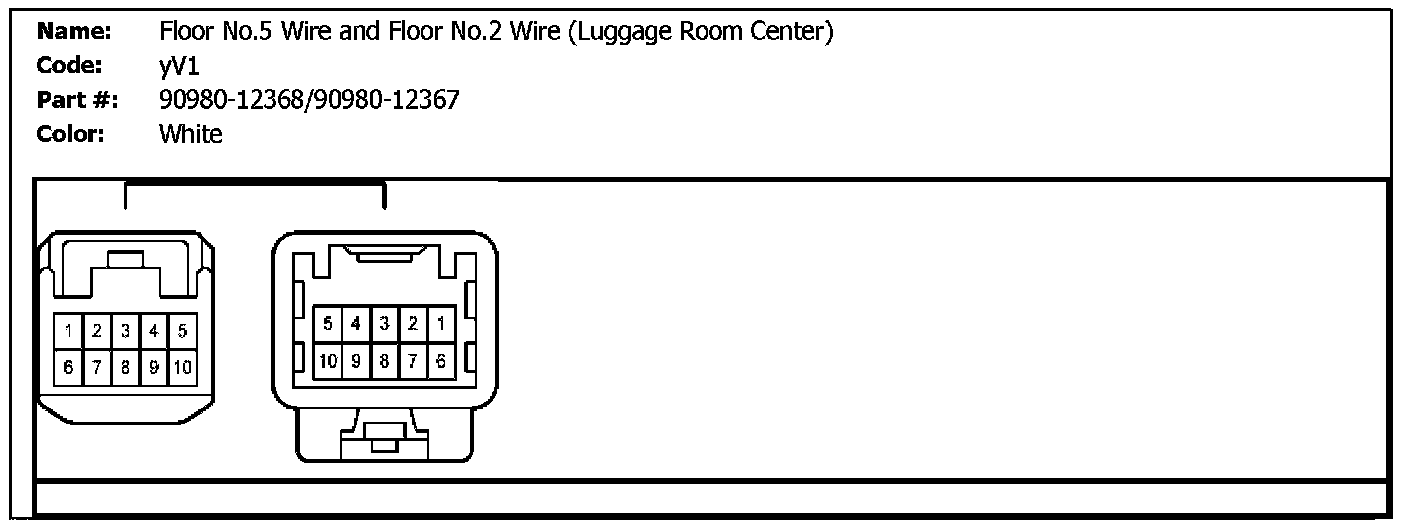

yV1 (Floor No.5 Wire and Floor No.2 Wire (Luggage Room Center):
