Engine Room Main Wire

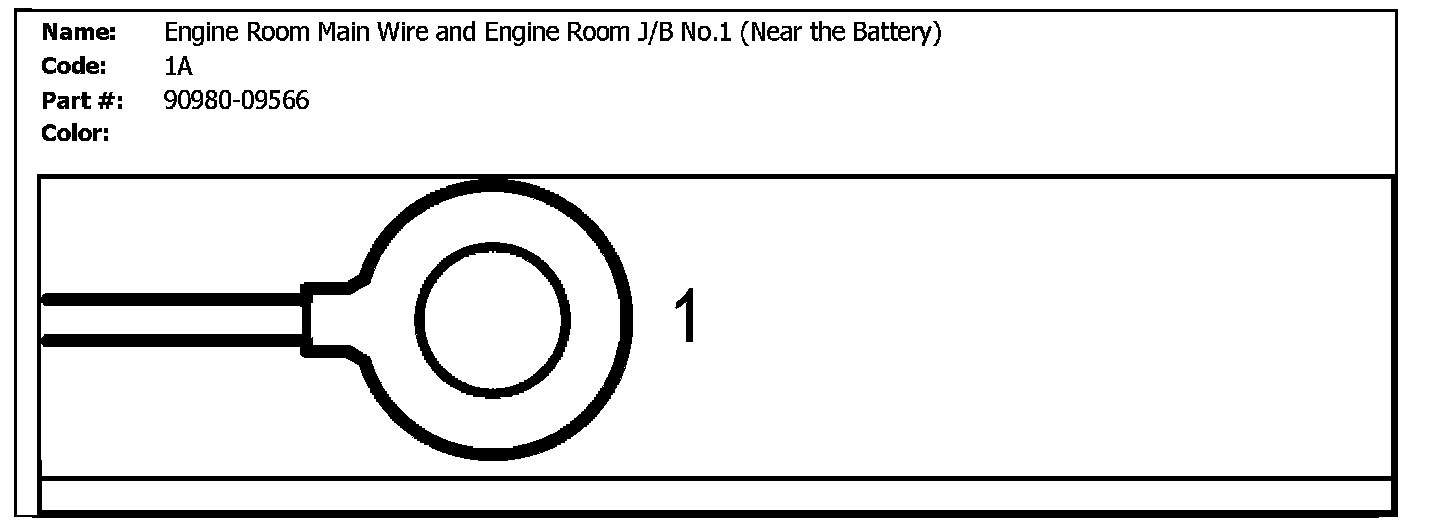

1A (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery):

1B (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

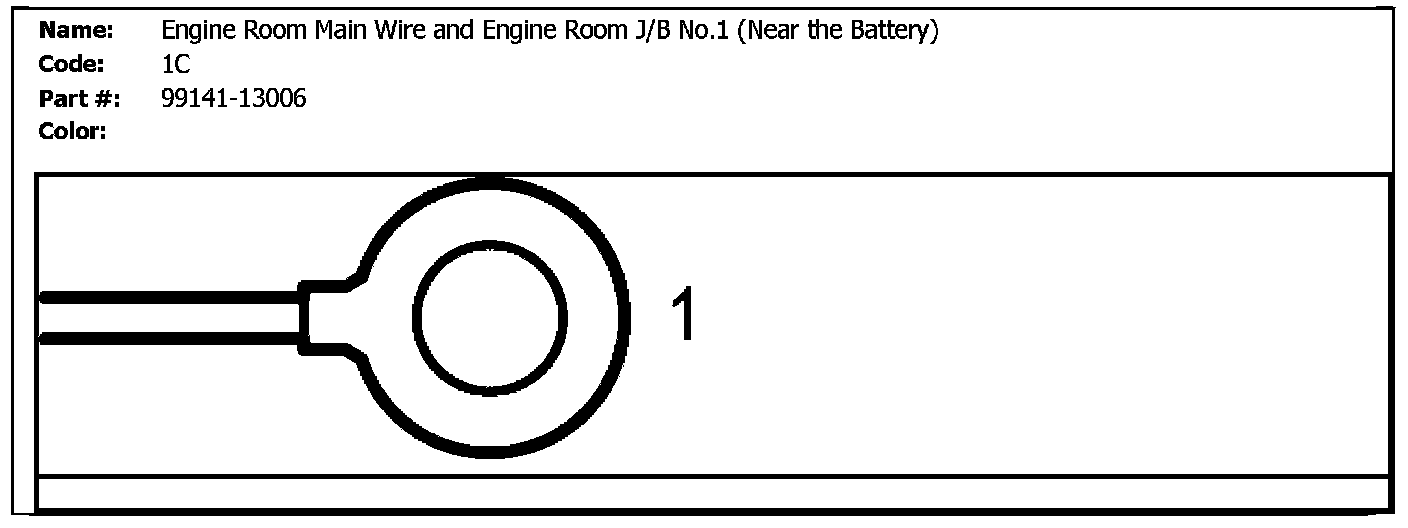

1C (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery):

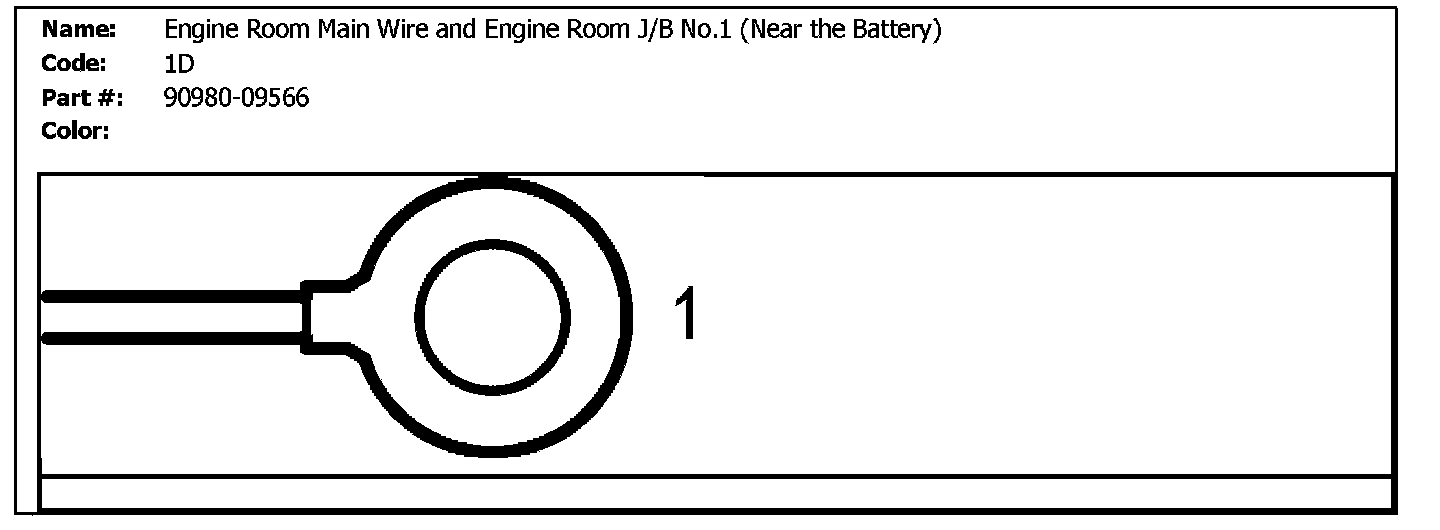

1D (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

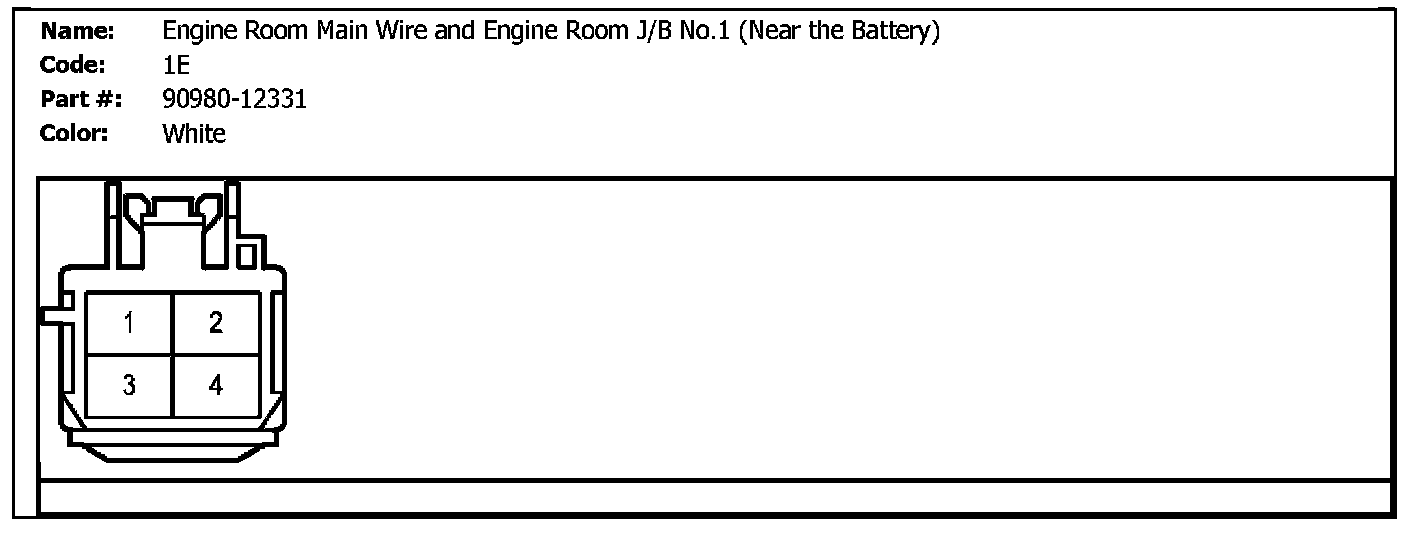

1E (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery):

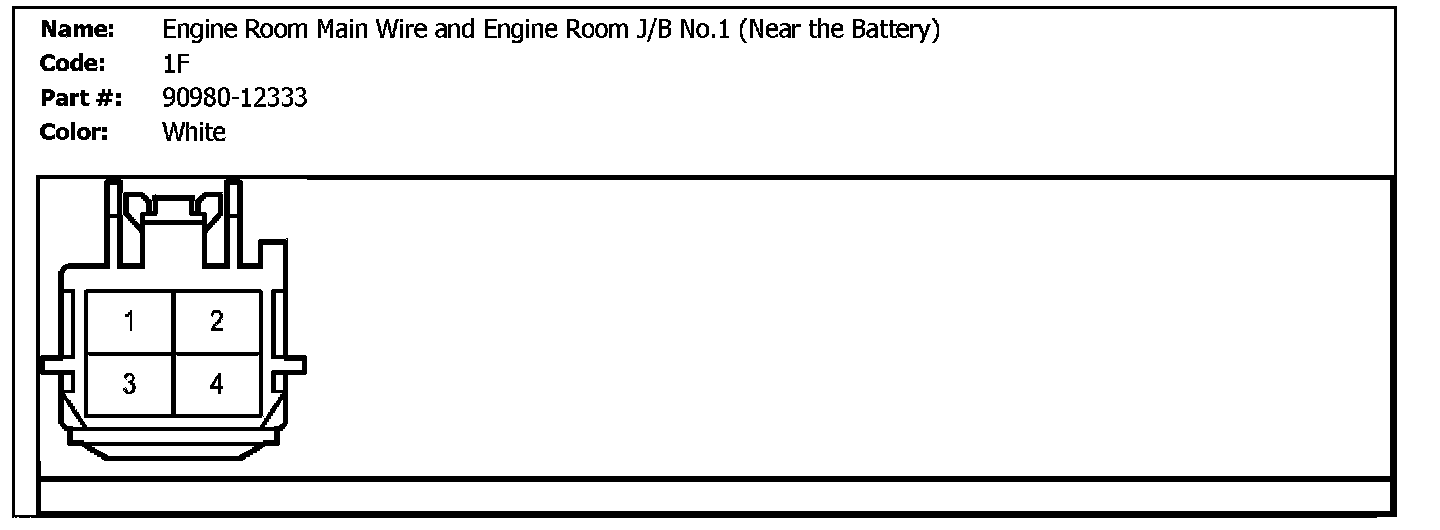

1F (Engine Room Main Wire and Engine Room J/B No.1 (Near The Battery)):

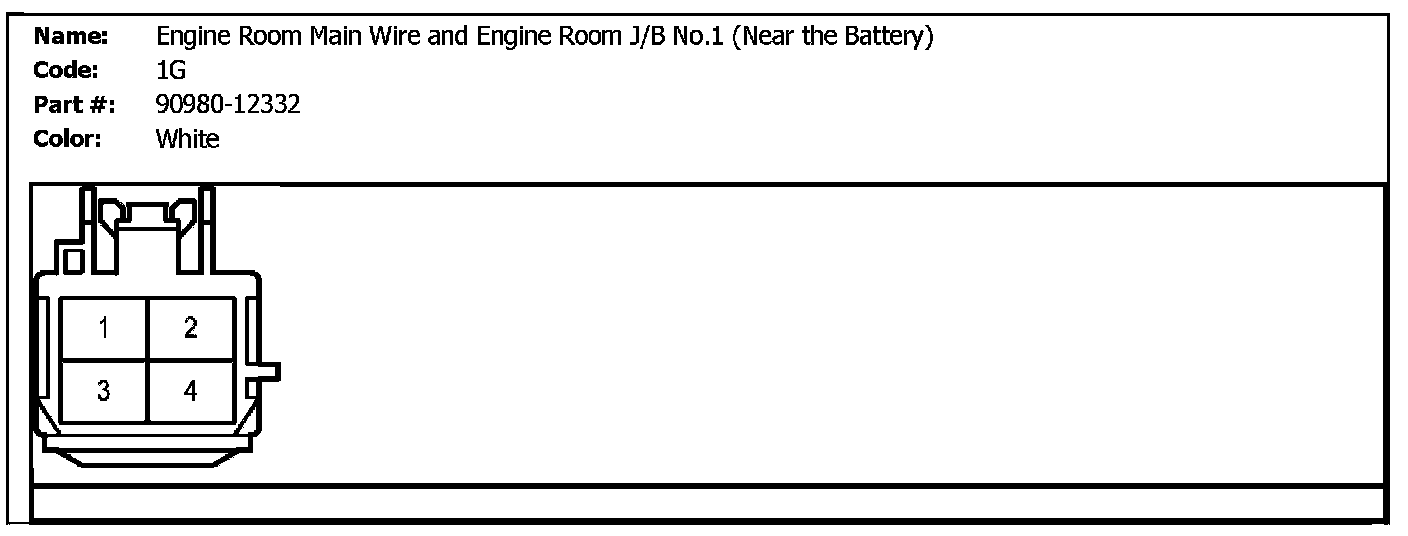

1G (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

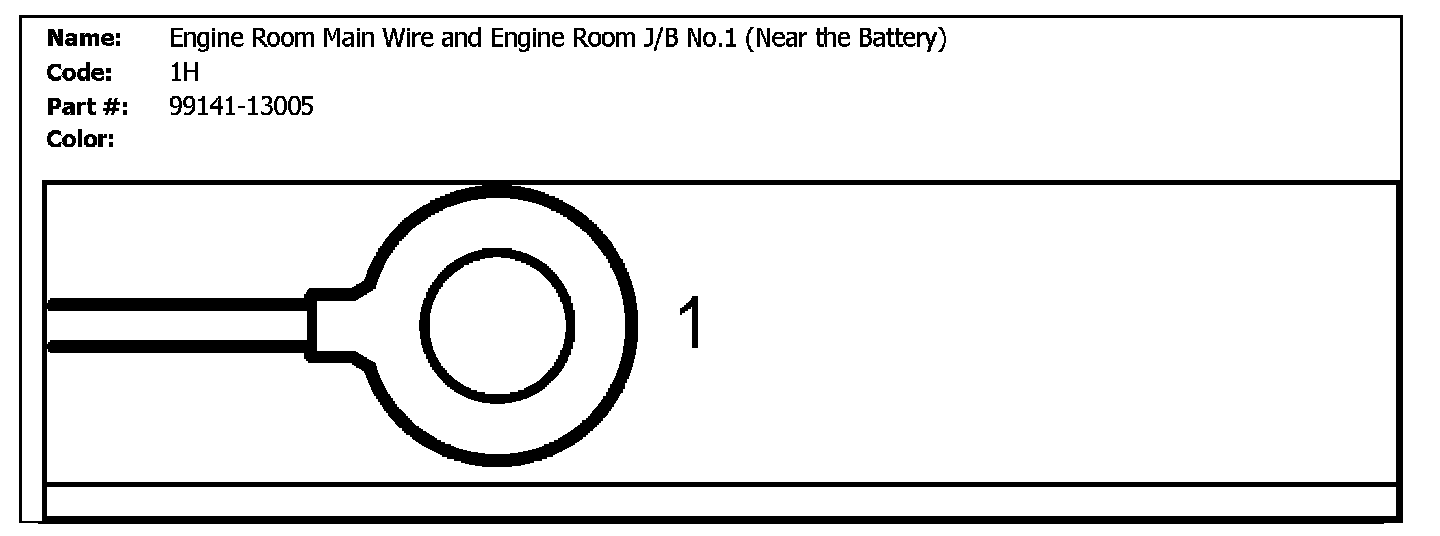

1H (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

1I (Engine Room Main Wire and Engine Room J/B No.1 (Near The Battery)):

1J (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

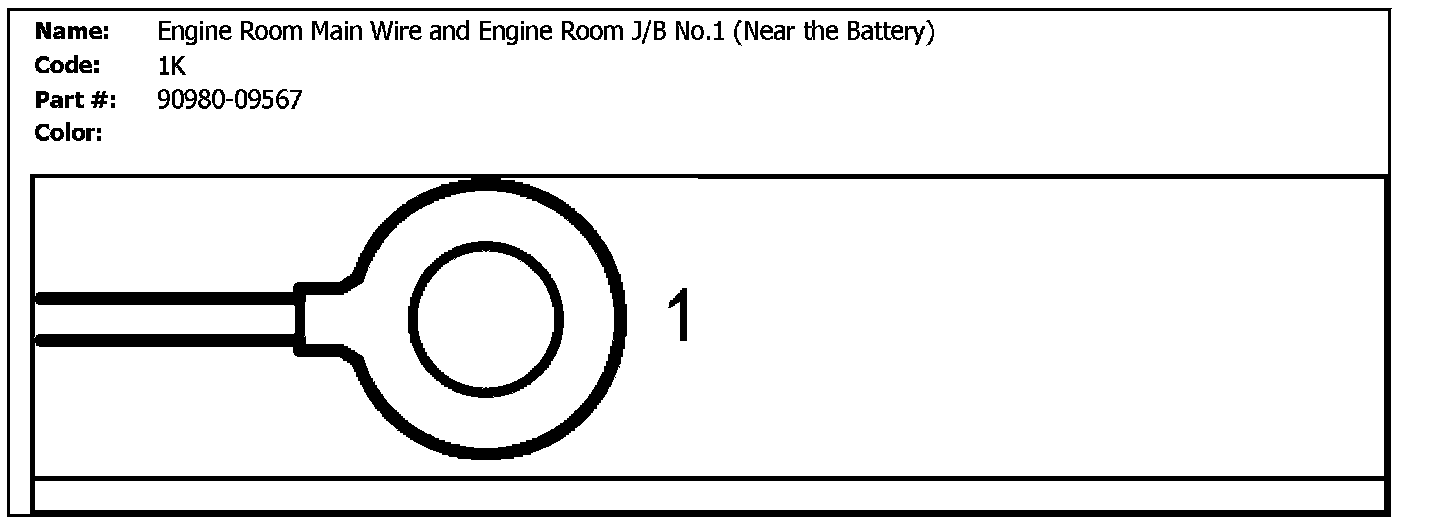

1K (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

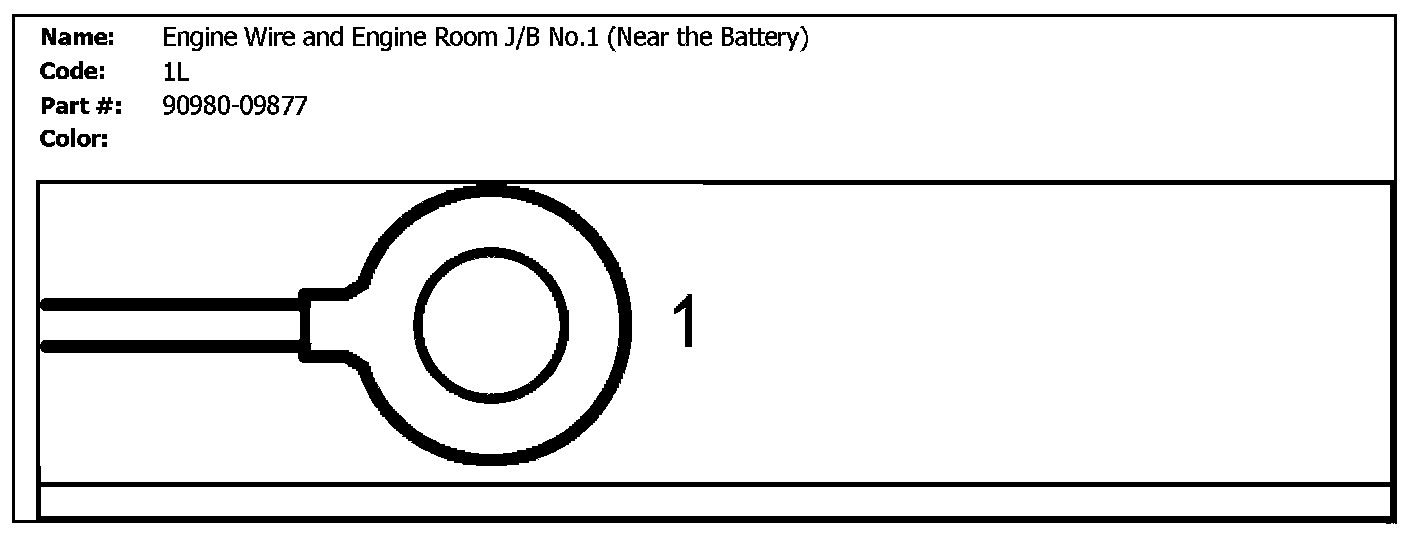

1L (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

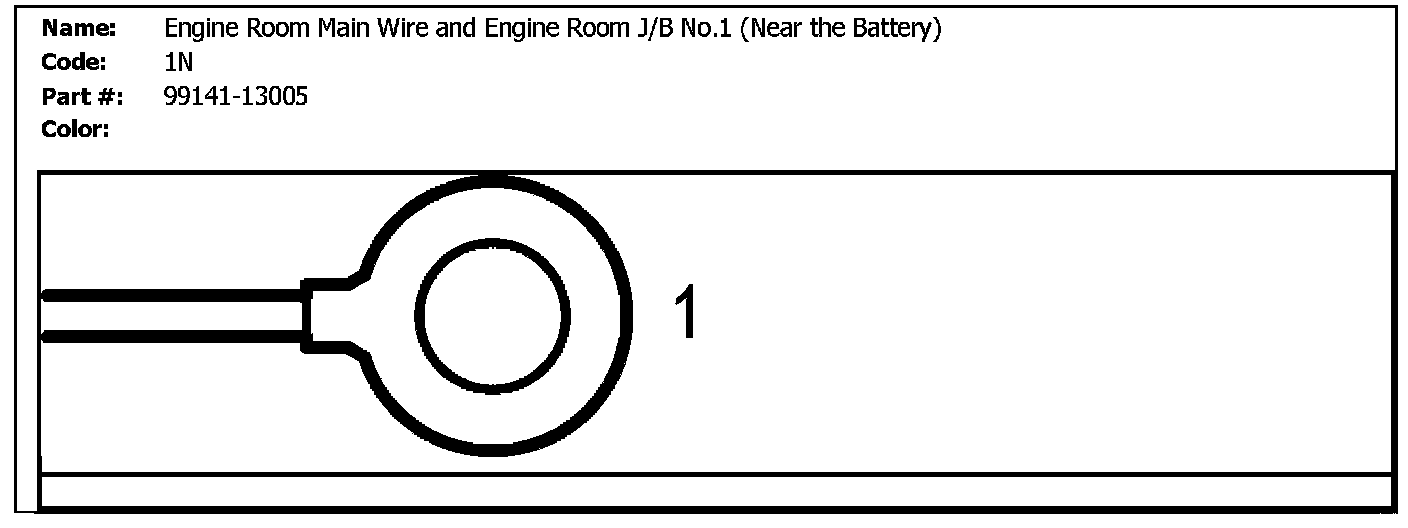

1N (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

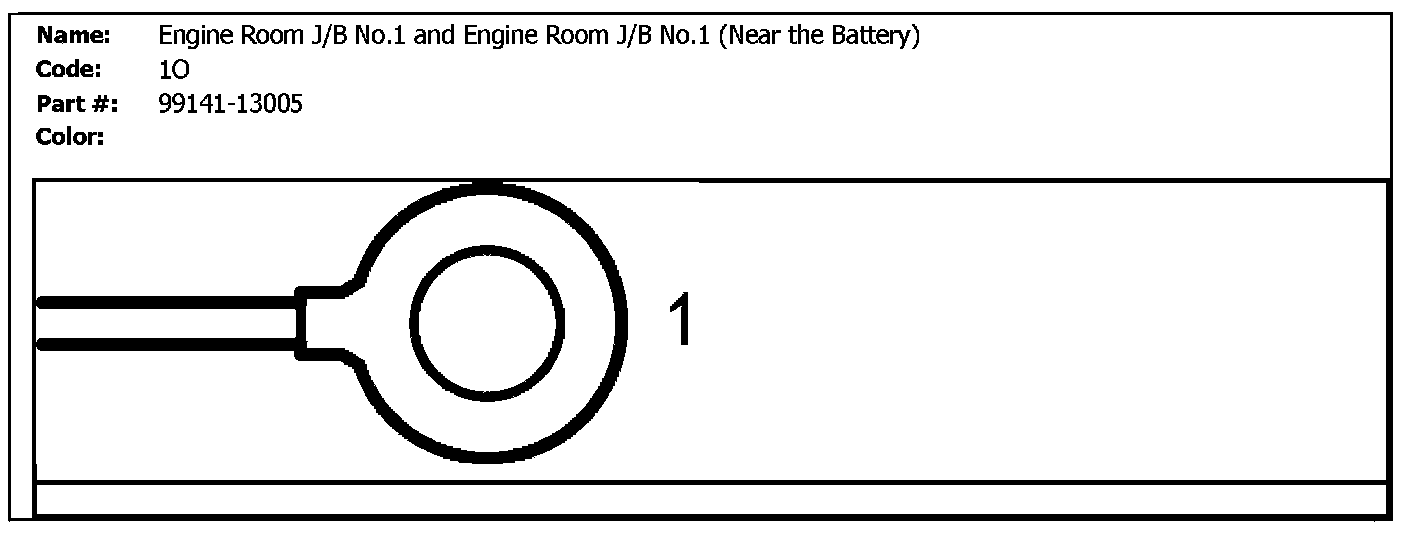

1O (Engine Room J/B NO.1 and Engine Room J/B No.1 (Near the Battery)):

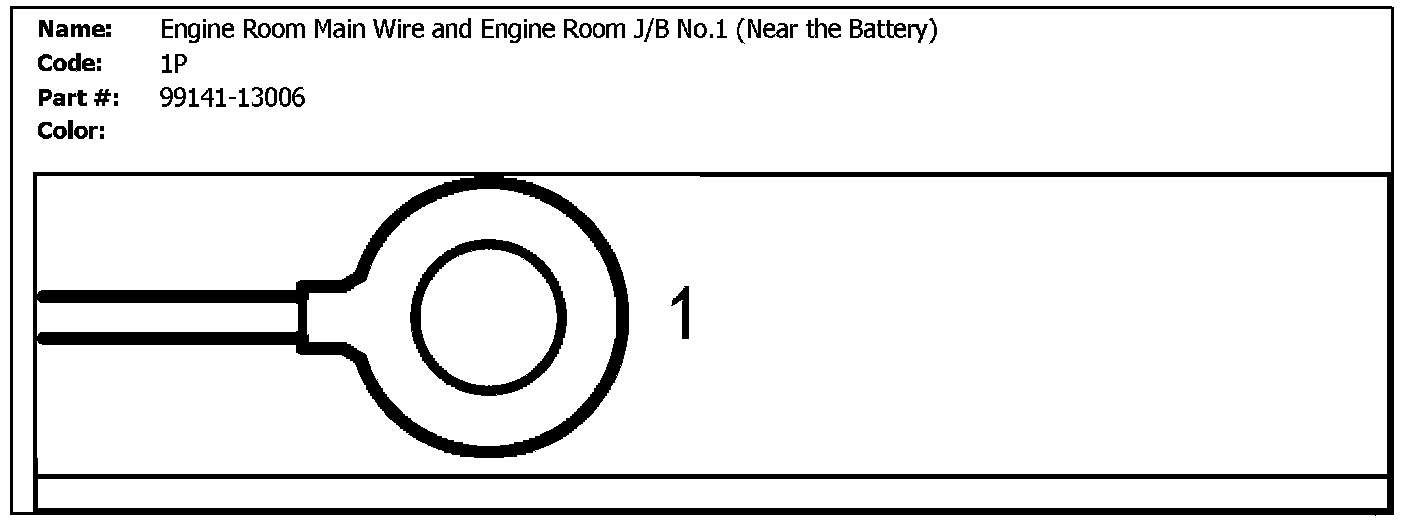

1P (Engine Room Main Wire and Engine Room J/B No.1 (Near the Battery)):

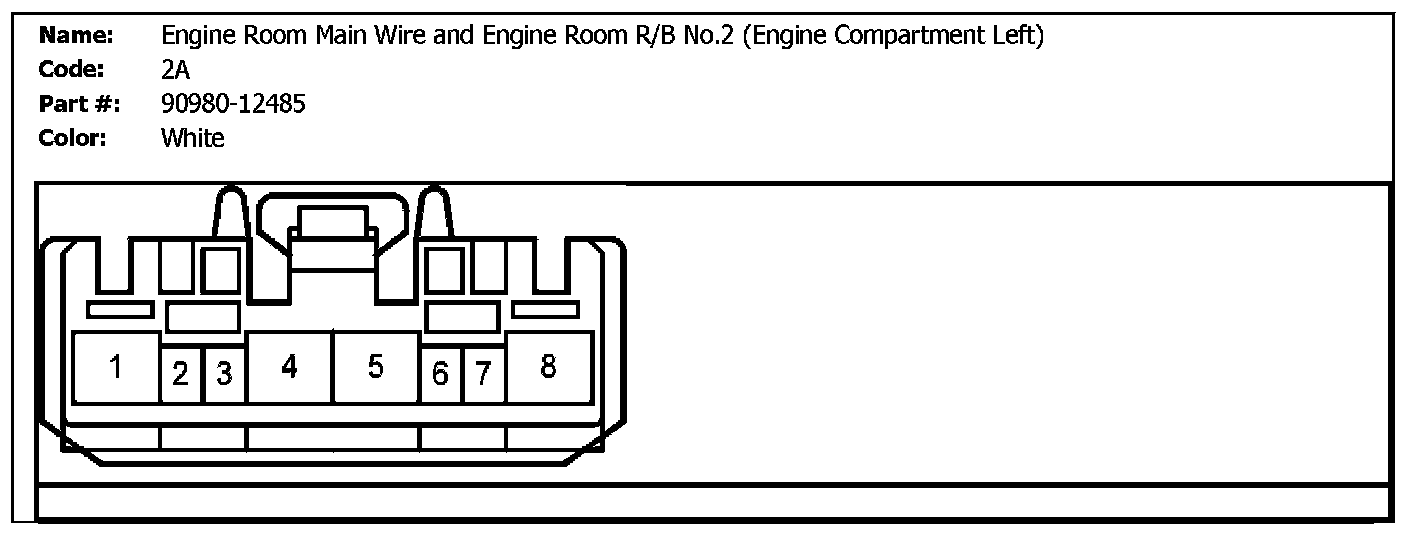

2A (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

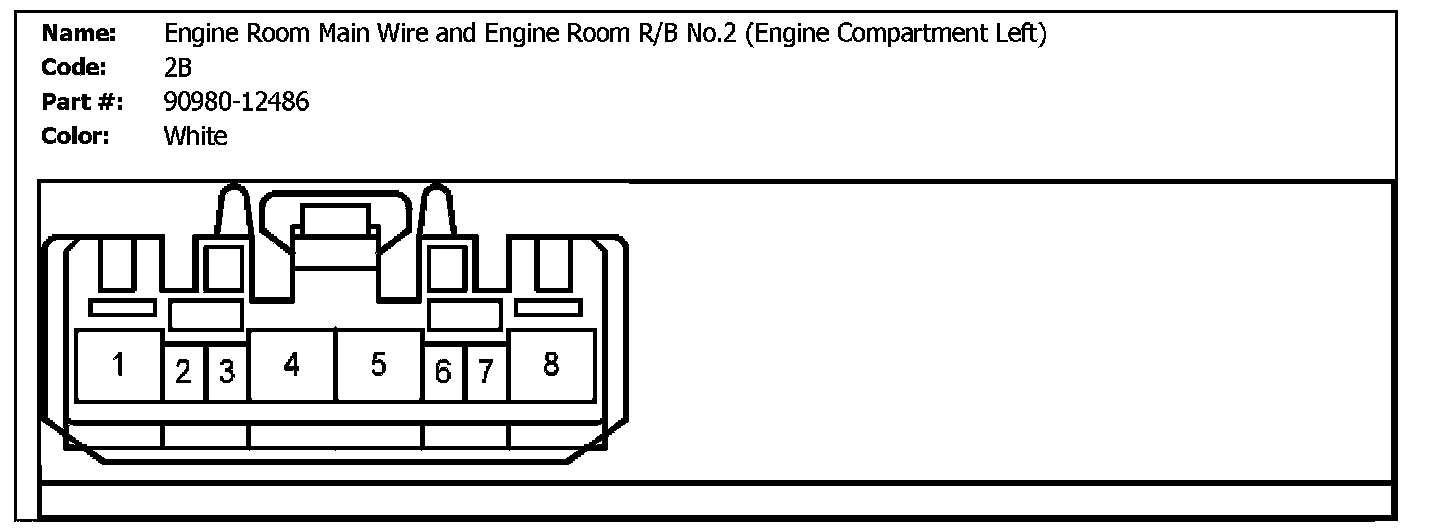

2B (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

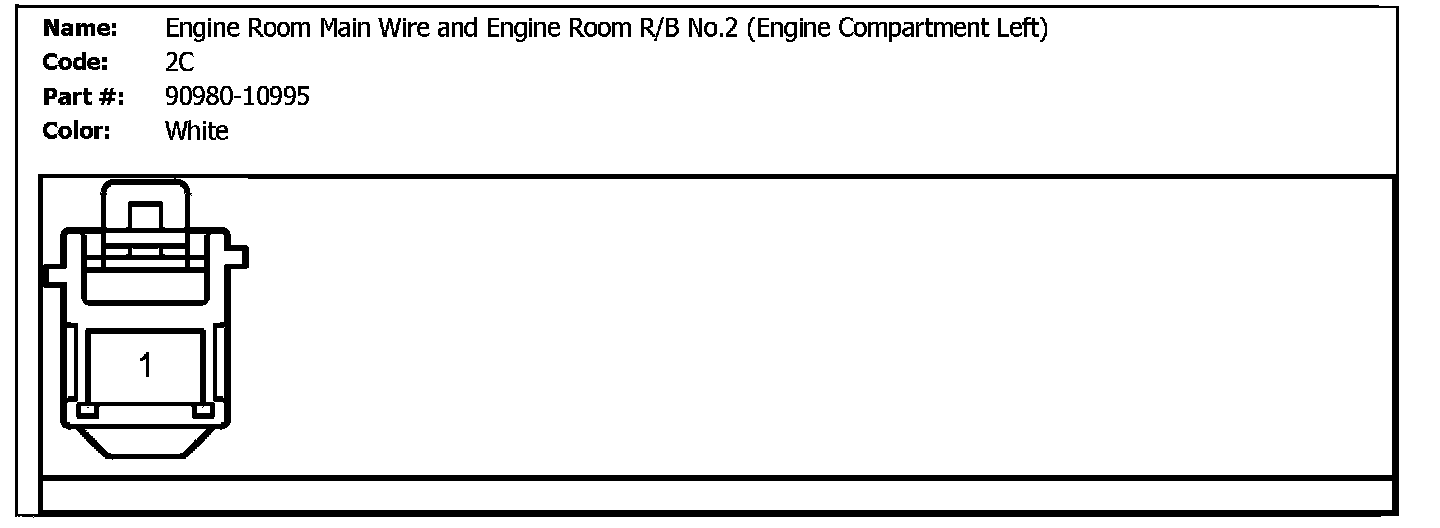

2C (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

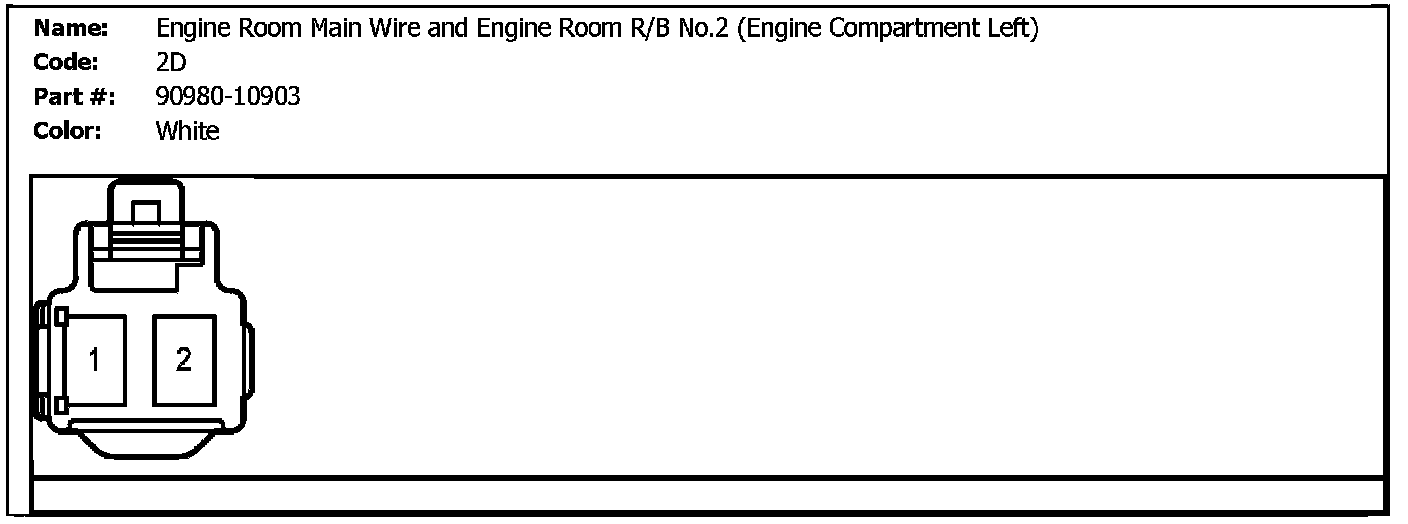

2D (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

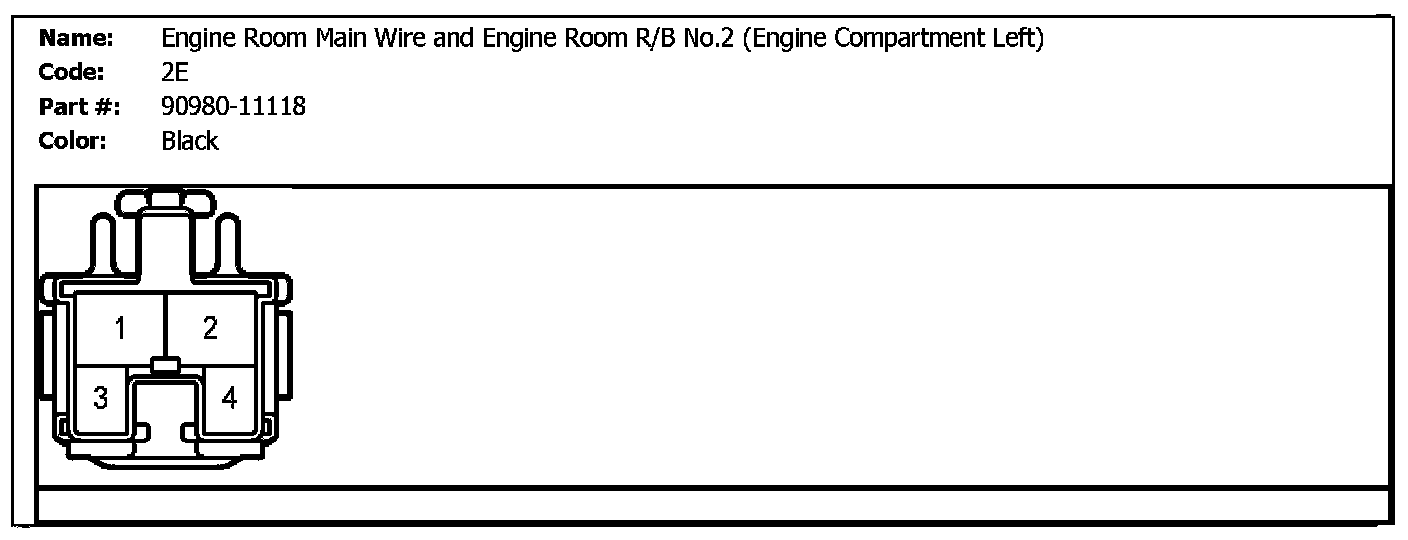

2E (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

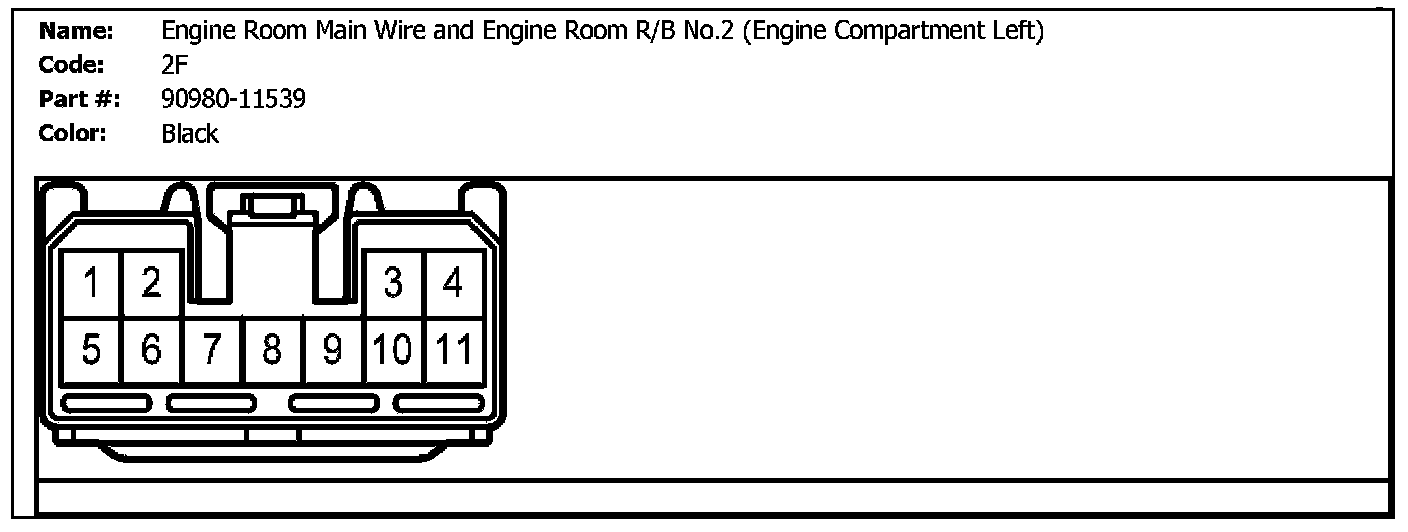

2F (Engine Room Main Wire and Engine Room R/B No.2 (Engine Compartment Left)):

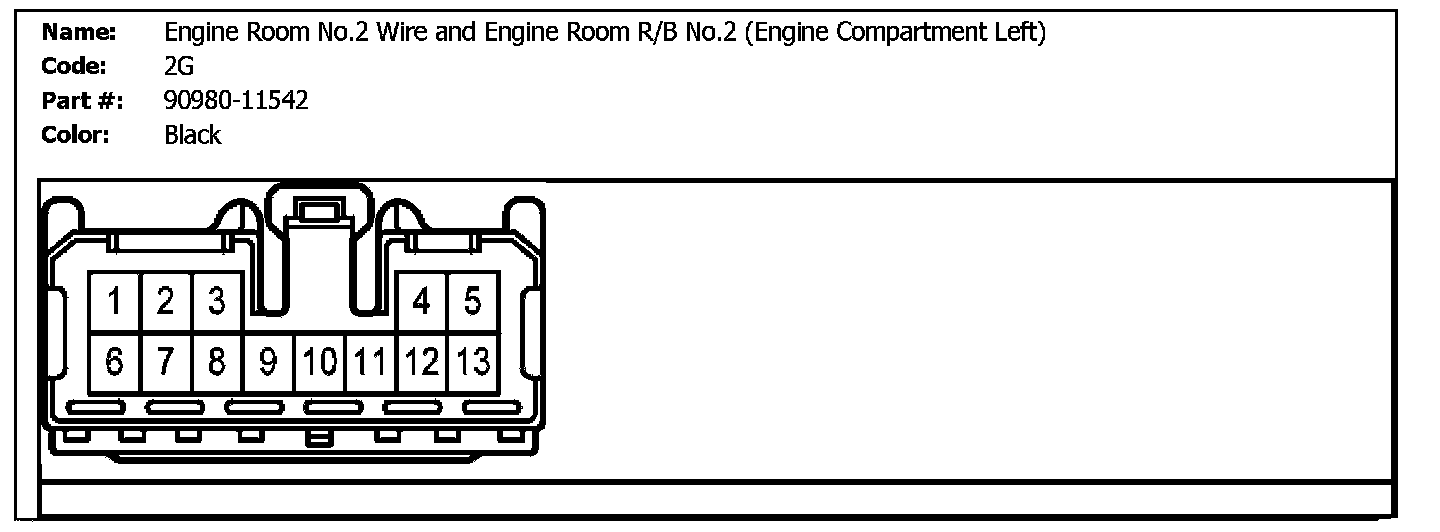

2G (Engine Room No.2 Wire and Engine Room R/B No.2 (Engine Compartment Left)):

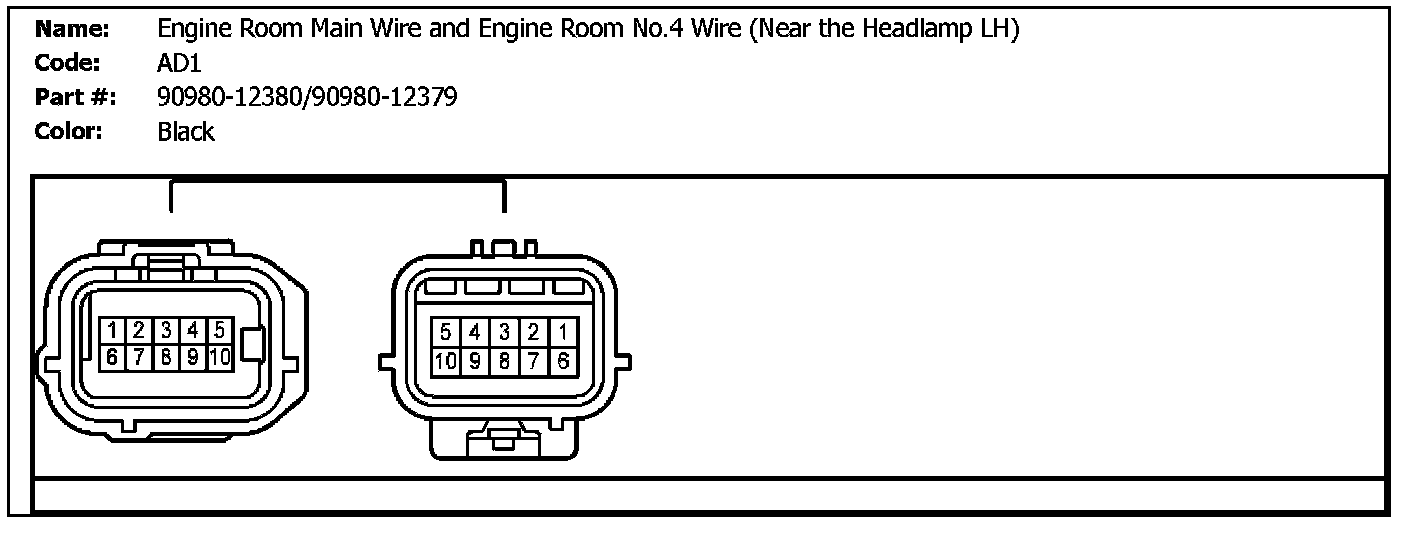

AD1 (Engine Room Main Wire and Engine Room No.4 Wire (Near the Headlamp LH)):

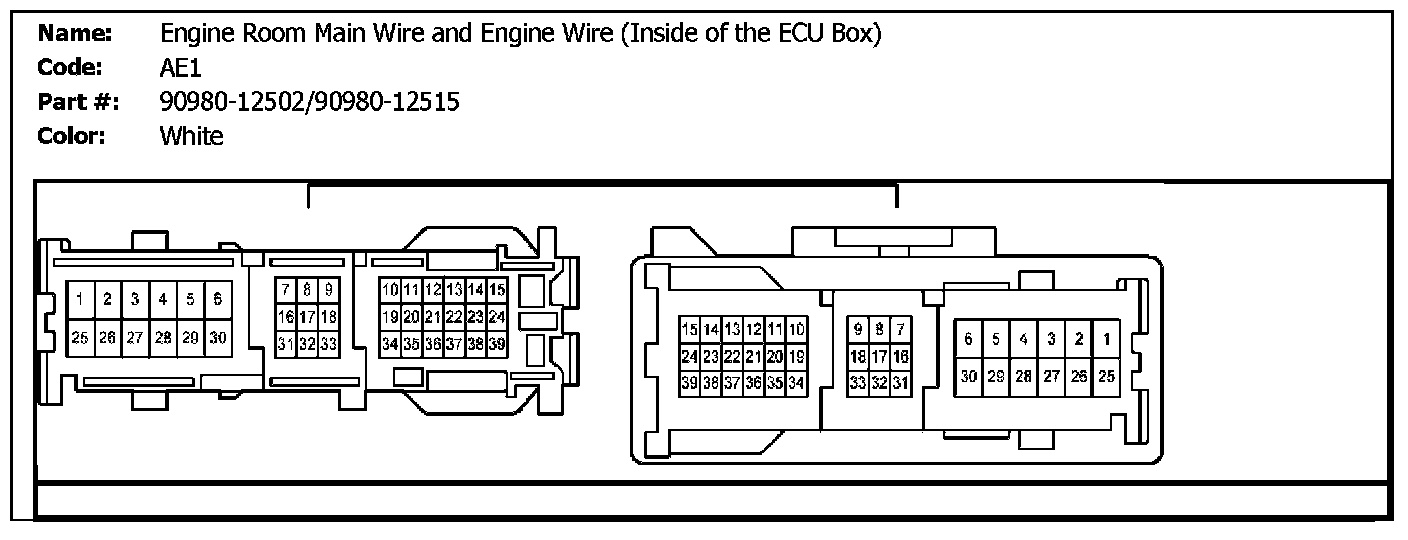

AE1 (Engine Room Main Wire and Engine Wire (Inside Of the ECU Box)):

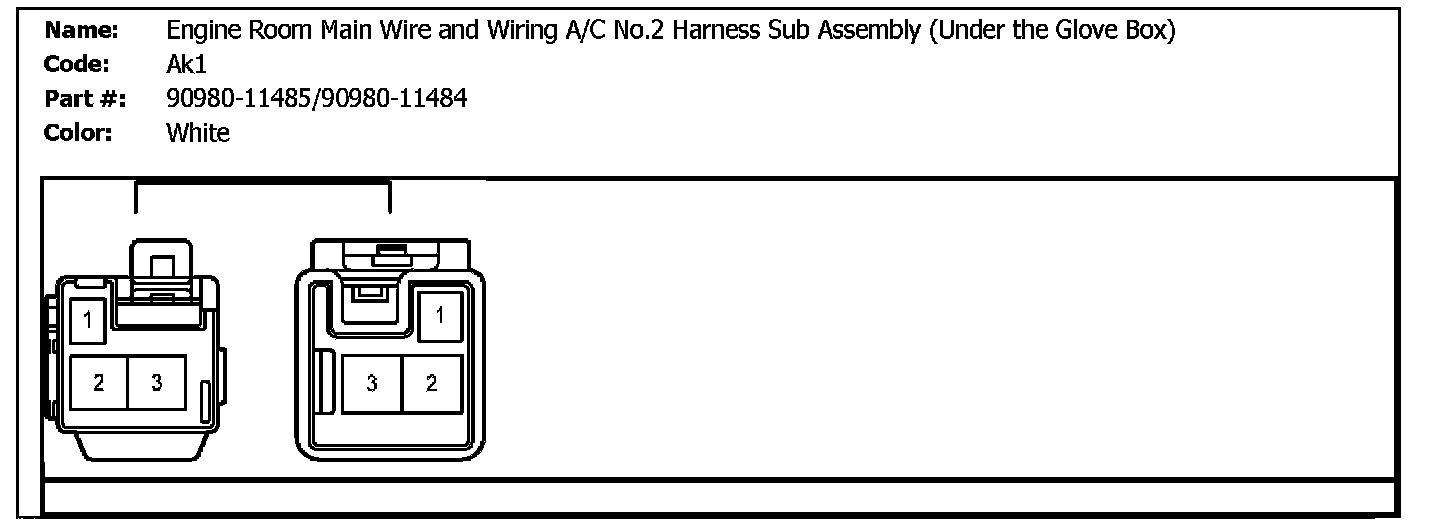

Ak1 (Engine Room Main Wire and Wiring A/C No.2 Harness Sub Assembly (Under the Glove Box)):

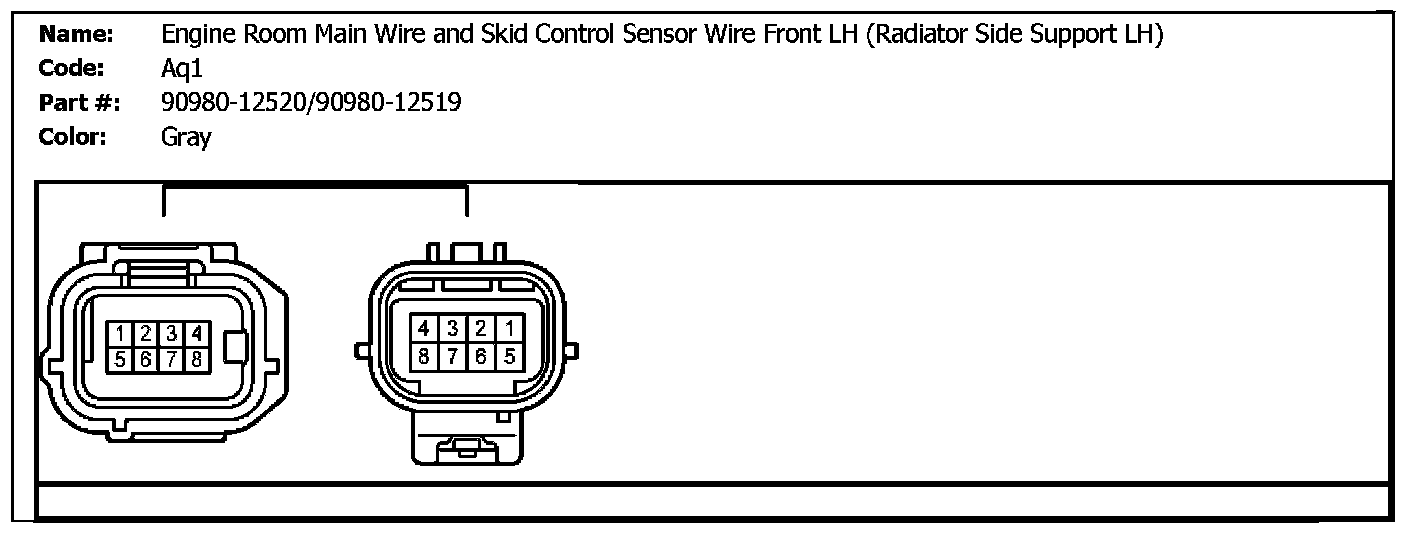

Aq1 (Engine Room Main Wire and Skid Control Sensor Wire Front LH (Radiator Side Support LH)):

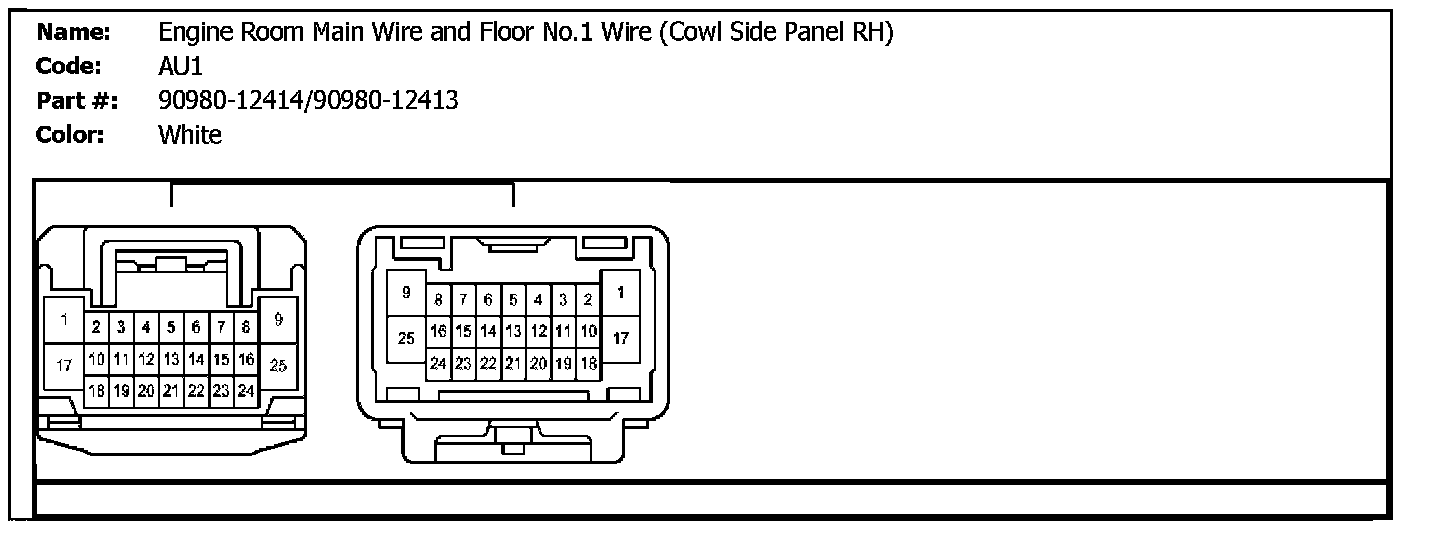

AU1 (Engine Room Main Wire and Floor No.1 Wire (Cowl Side Panel RH)):

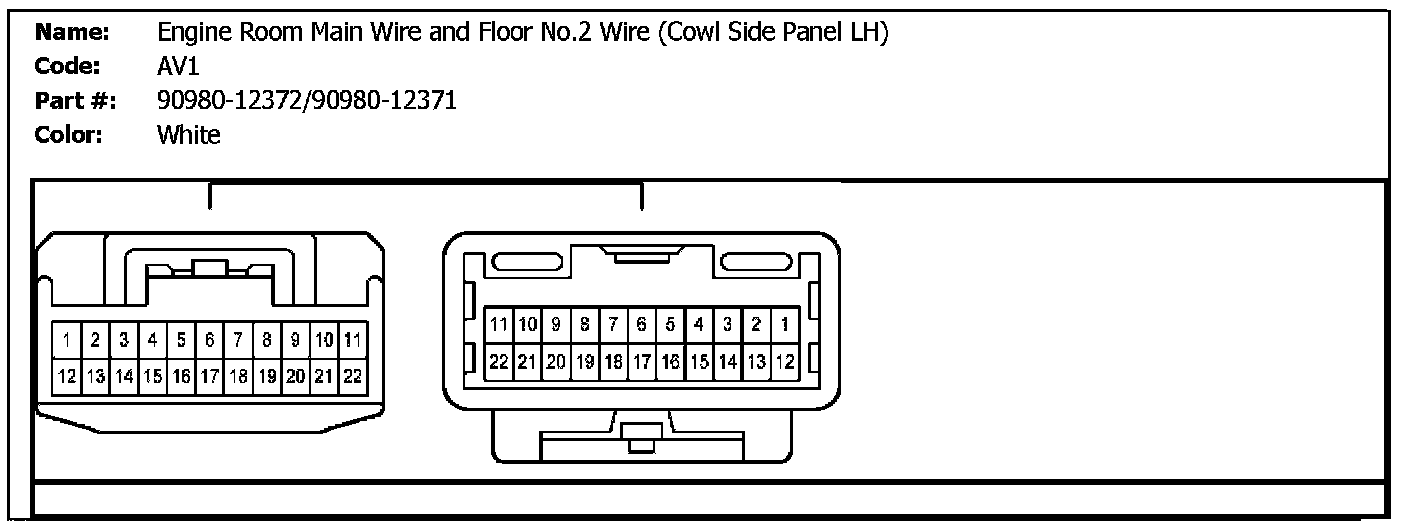

AV1 (Engine Room Main Wire and Floor No.2 Wire (Cowl Side Panel LH)):

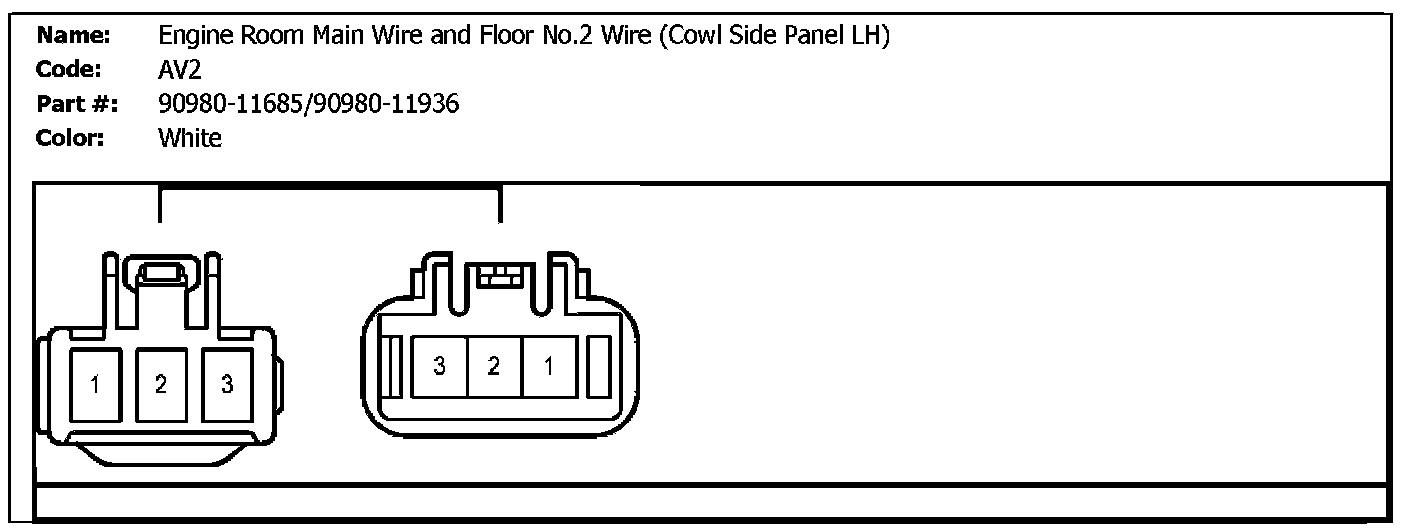

AV2 (Engine Room Main Wire and Floor No.2 Wire (Cowl Side Panel LH)):

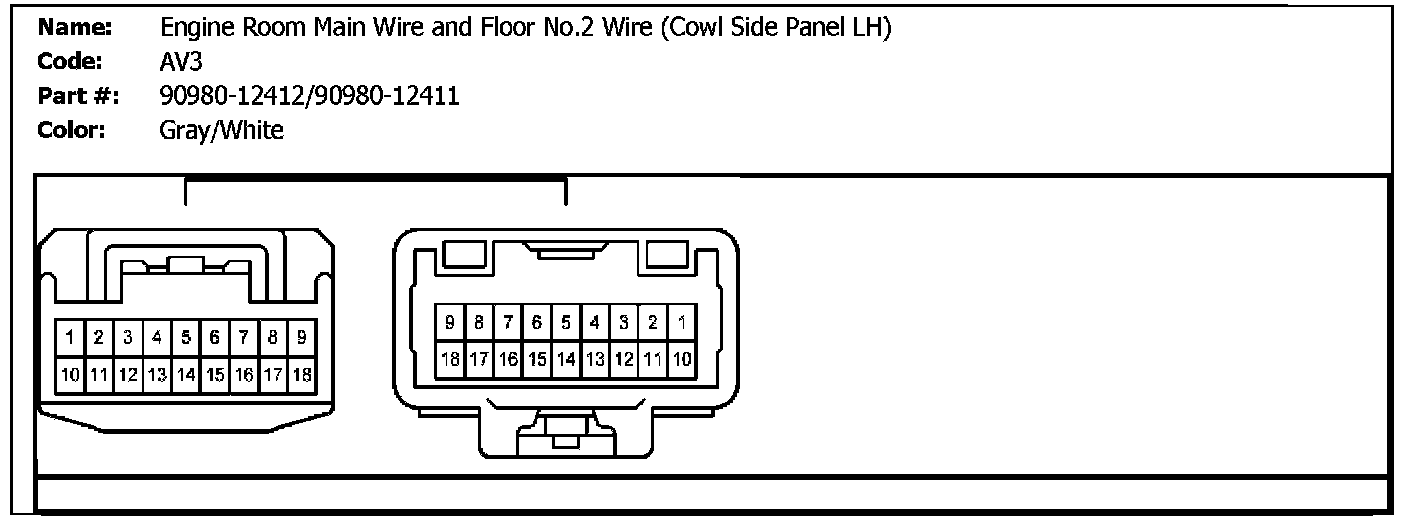

AV3 (Engine Room Main Wire and Floor No.2 Wire (Cowl Side Panel LH)):

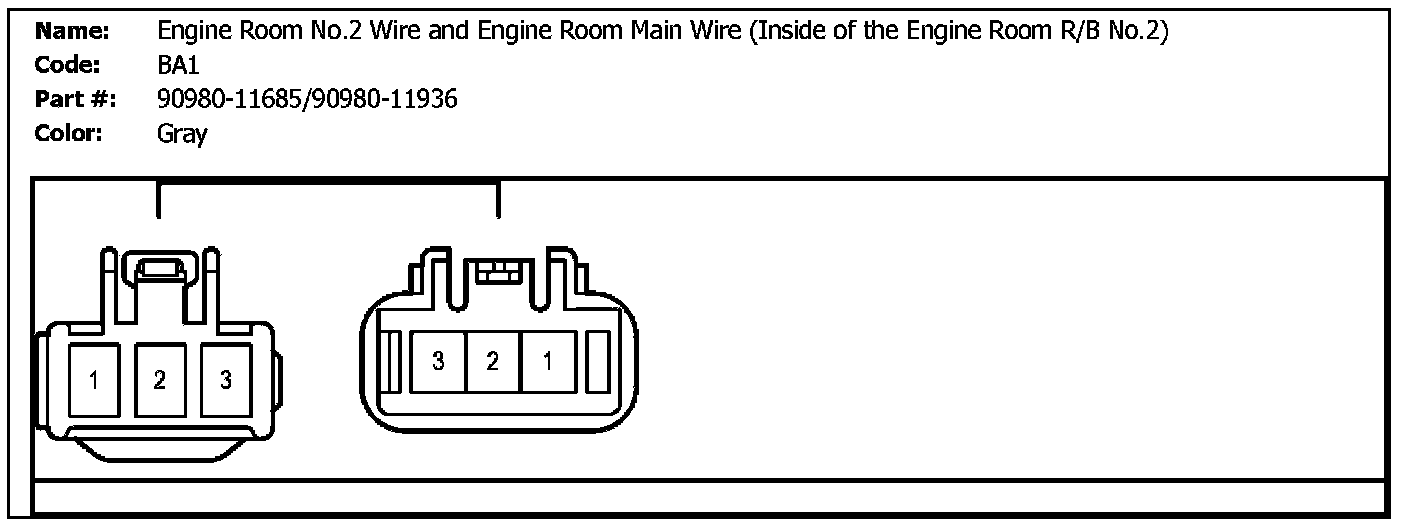

BA1 (Engine Room No.2 Wire and Engine Room Main Wire (Inside Of the Engine Room R/B No.2)):

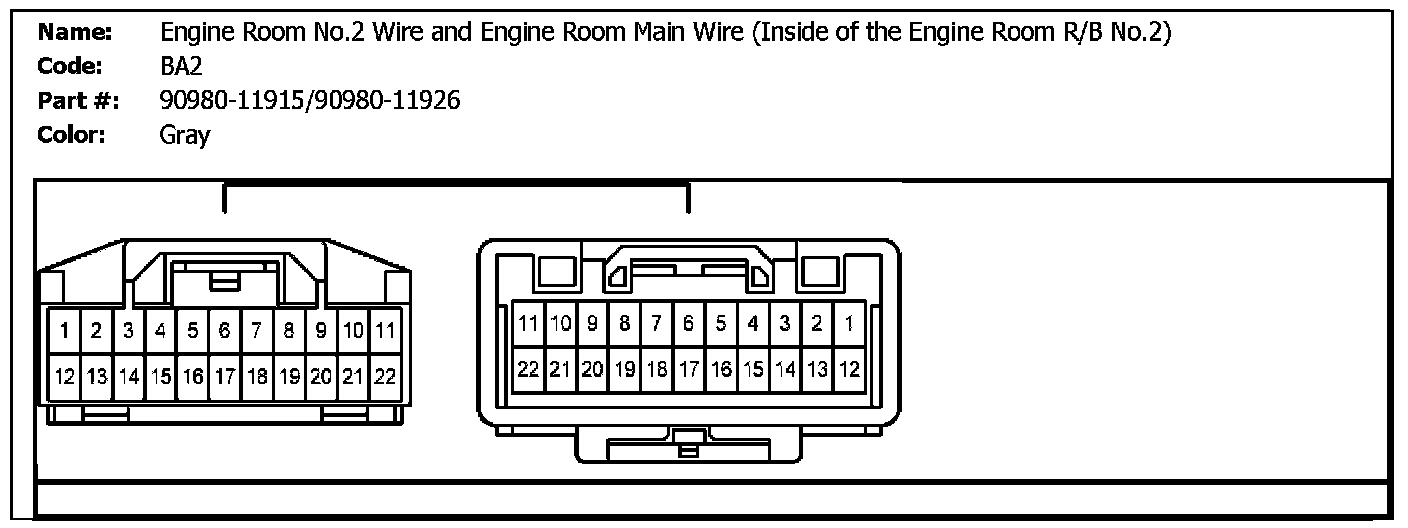

BA2 (Engine Room No.2 Wire and Engine Room Main Wire (Inside Of the Engine Room R/B No.2)):

BA3 (Engine Room No.2 Wire and Engine Room Main Wire (Inside Of the Engine Room R/B No.2)):

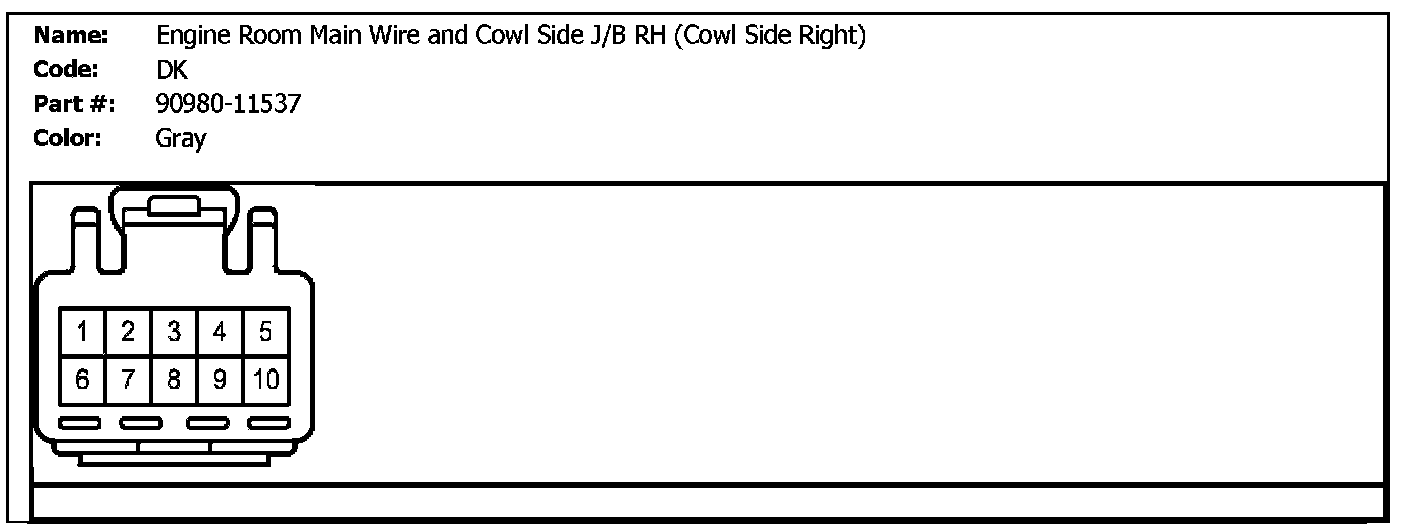

DK (Engine Room Main Wire and Cowl Side J/B RH (Cowl Side Right)):

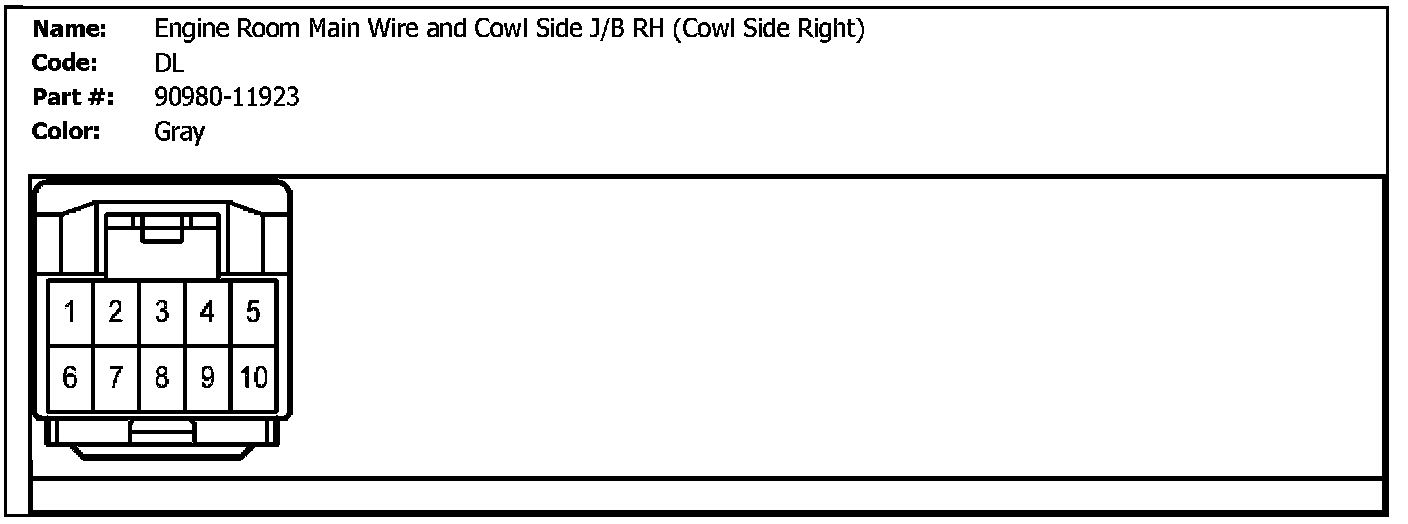

DL (Engine Room Main Wire and Cowl Side J/B RH (Cowl Side Right)):

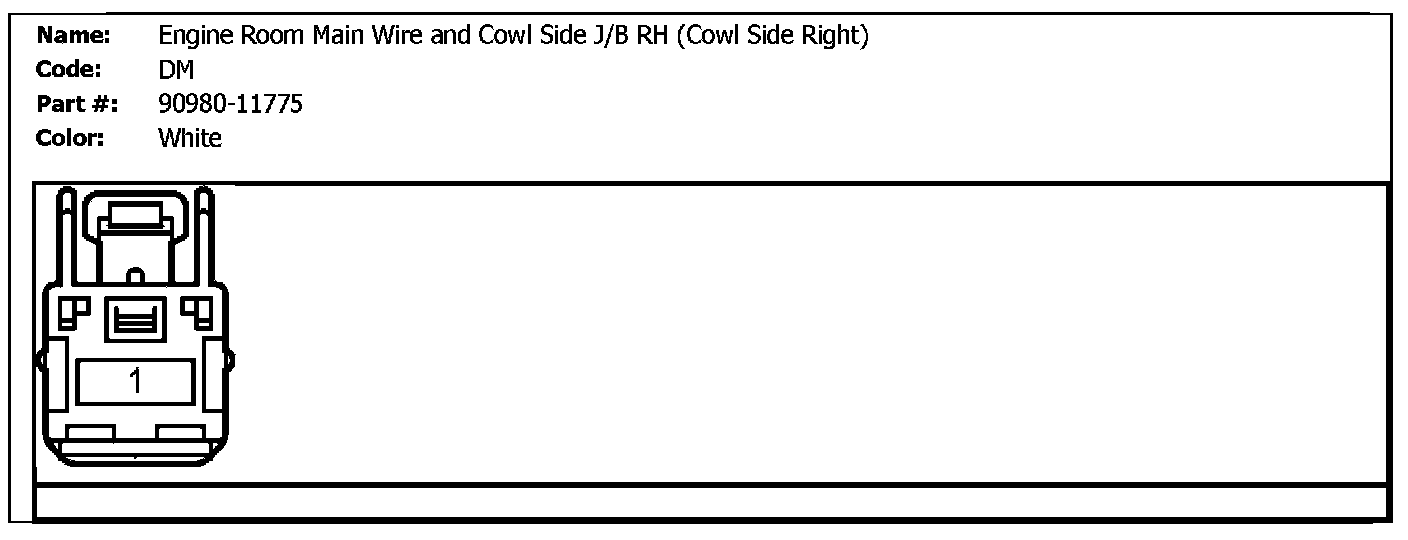

DM (Engine Room Main Wire and Cowl Side J/B RH (Cowl Side Right)):

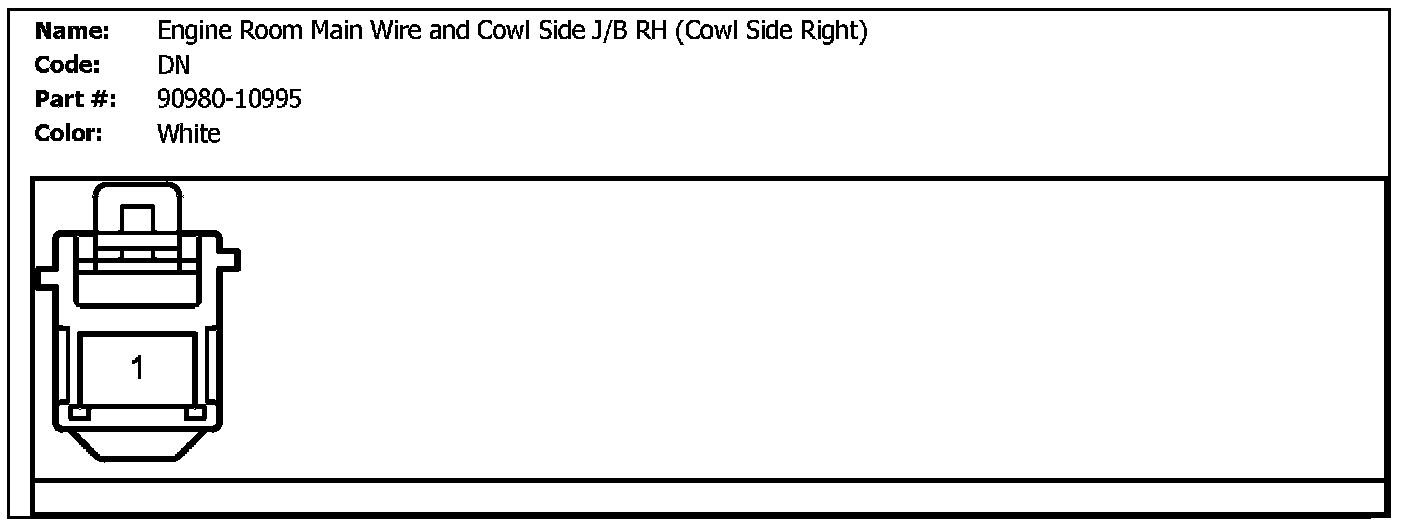

DN (Engine Room Main Wire and Cowl Side J/B RH (Cowl Side Right)):

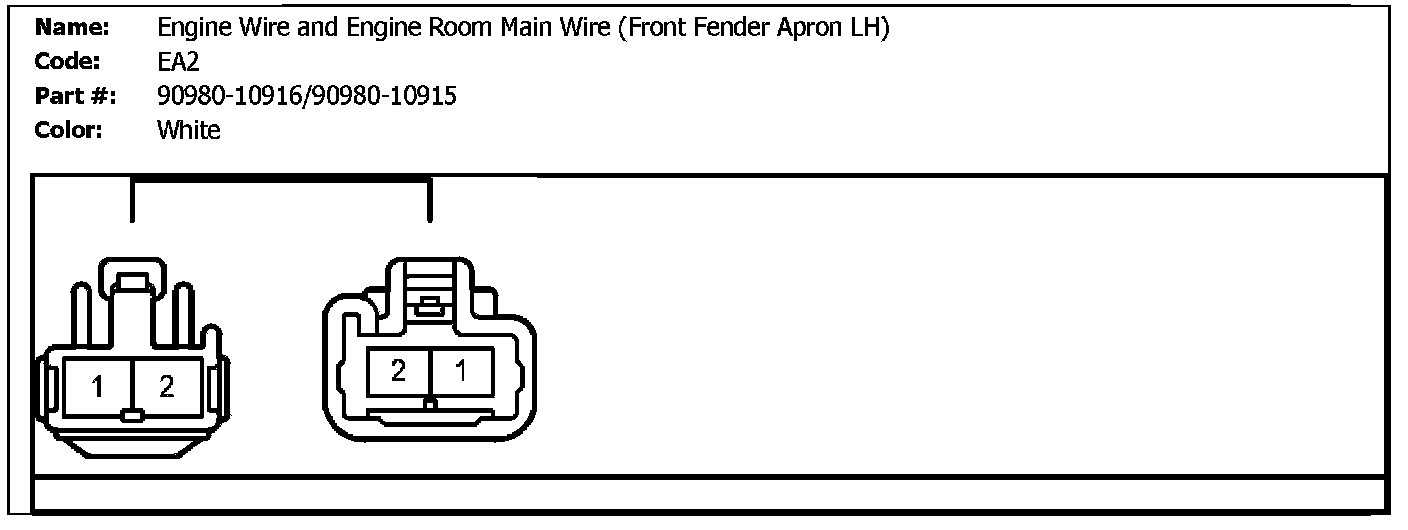

EA2 (Engine Wire and Engine Room Main Wire (Front Fender Apron LH)):

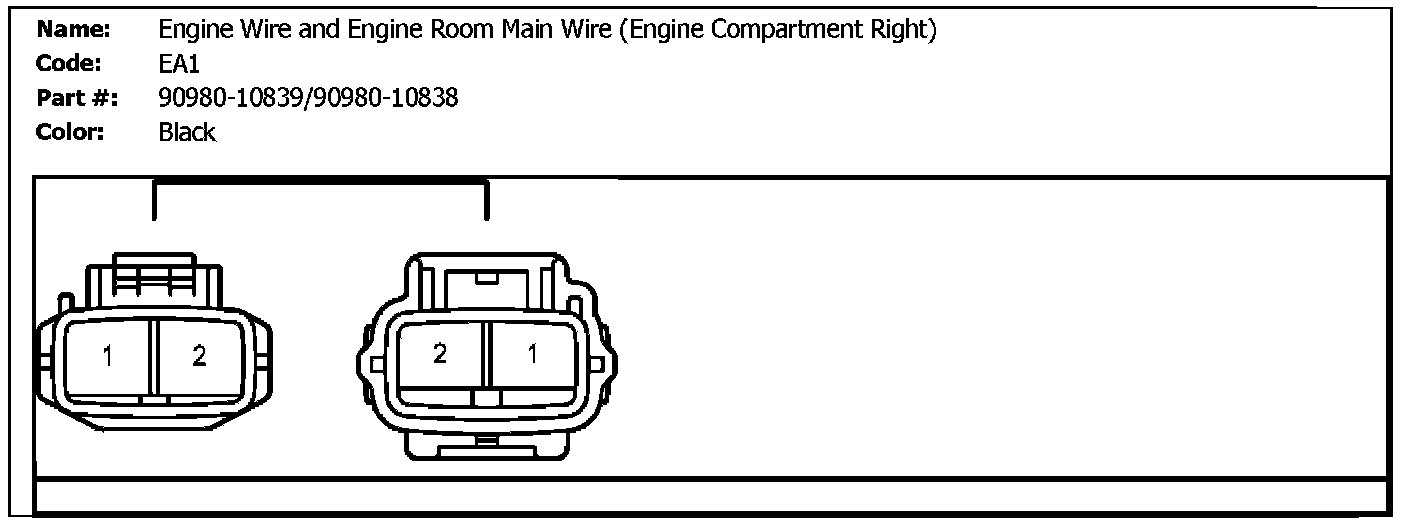

EA1 (Engine Wire and Engine Room Main Wire (Engine Compartment Right)):

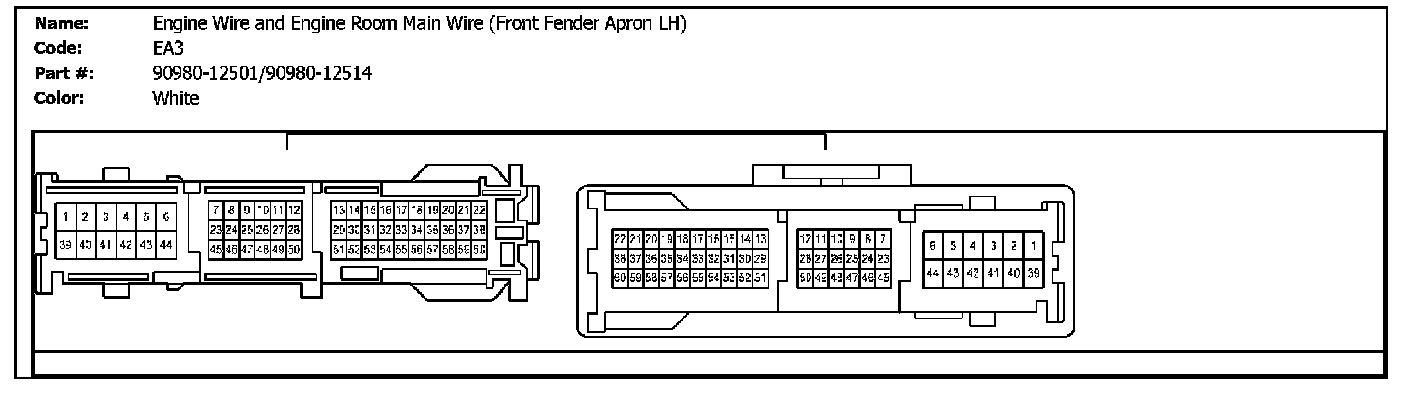

EA3 (Engine Wire and Engine Room Main Wire (Front Fender Apron LH)):

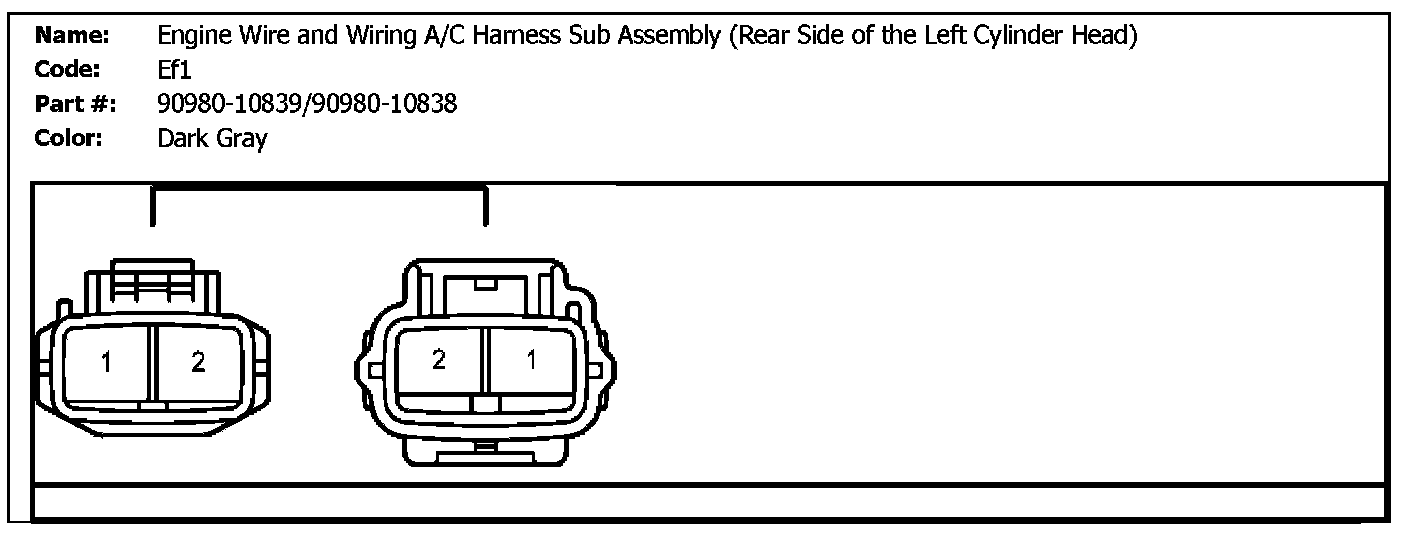

Ef1 (Engone Wire and Wiring A/C Harness Sub Assembly (Rear Side Of the Left Cylinder Head)):

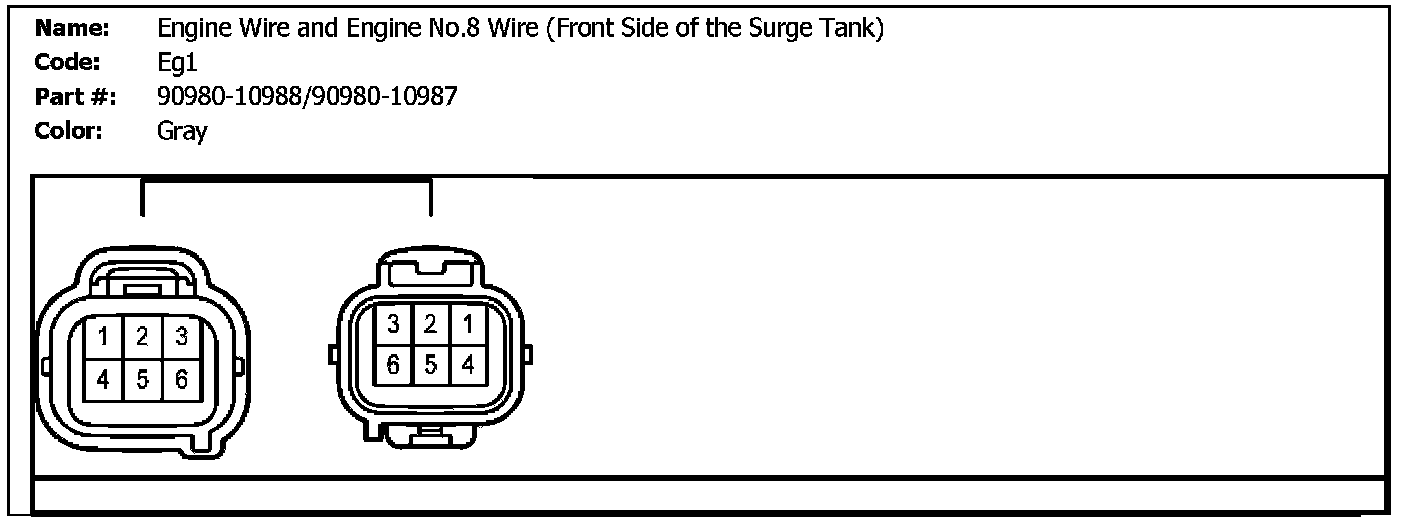

Eg1 (Engine Wire and Engine No.8 Wire (Front Side Of the Surge Tank)):

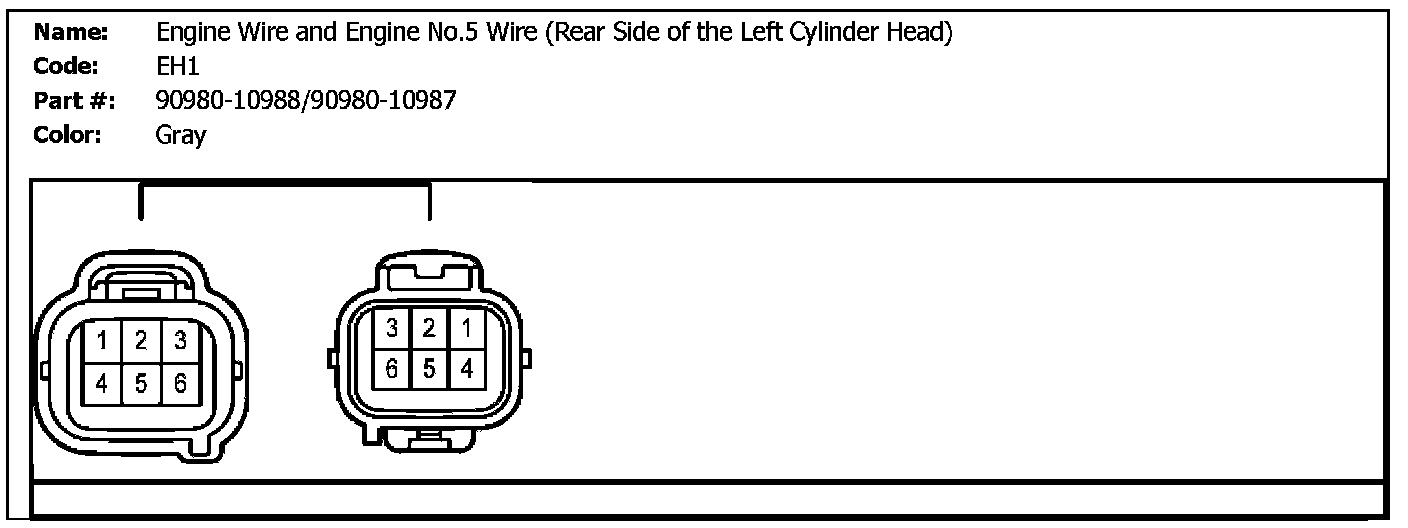

EH1 (Engine Wire and Engine No.5 Wire (Rear Side Of the Left Cylinder Head)):

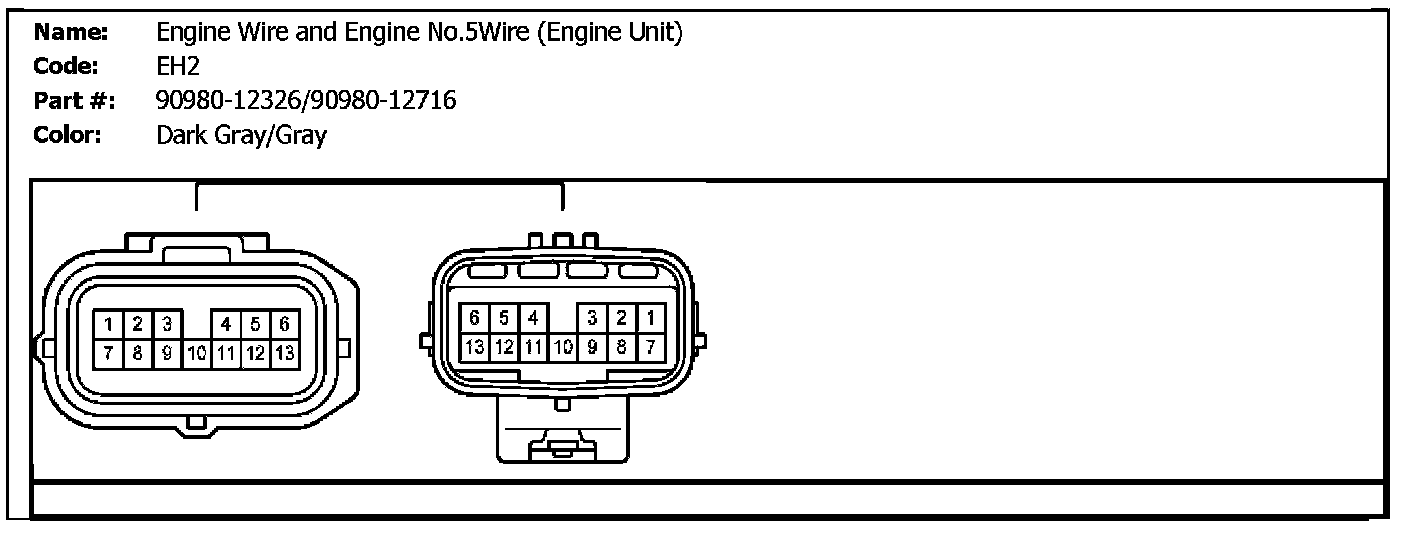

EH2 (Engine Wire and Engine No.5 Wire (Engine Unit)):

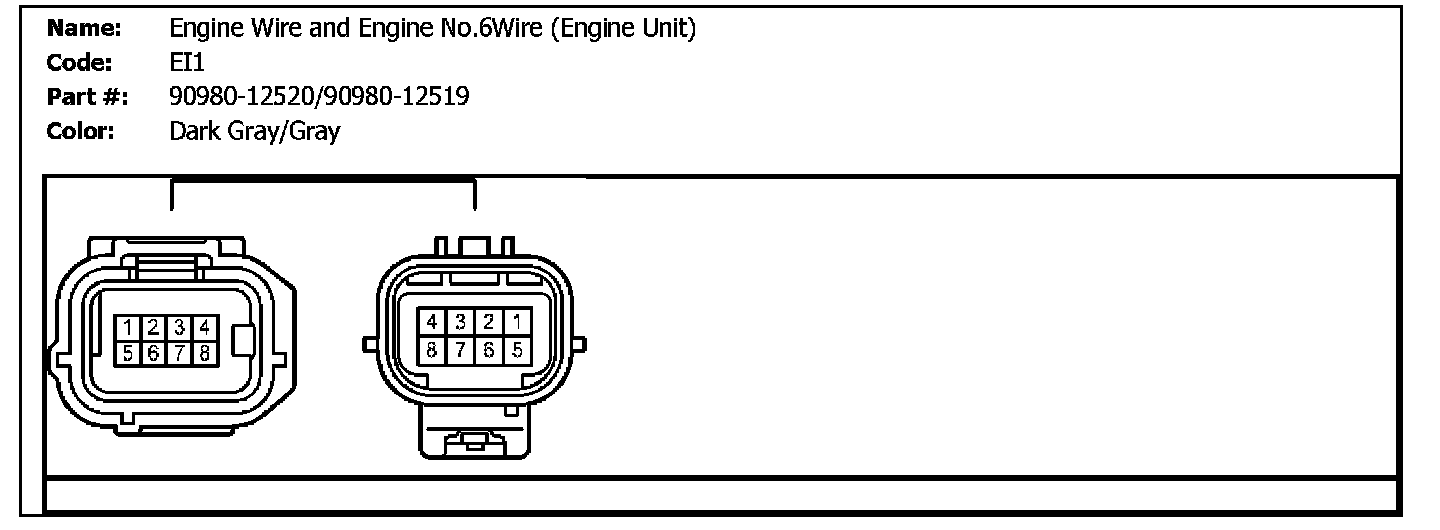

EI1 (Engine Wire and Engine No.6 Wire (Engine Unit)):

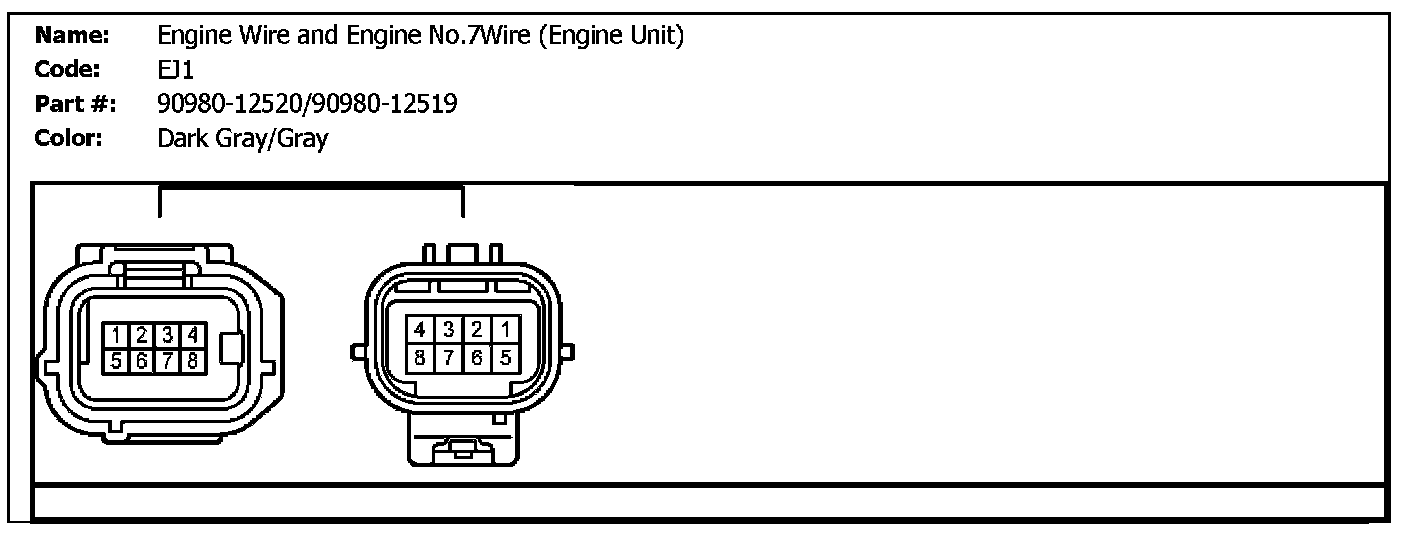

EJ1 (Engine Wire and Engine No.7 Wire (Engine Unit)):

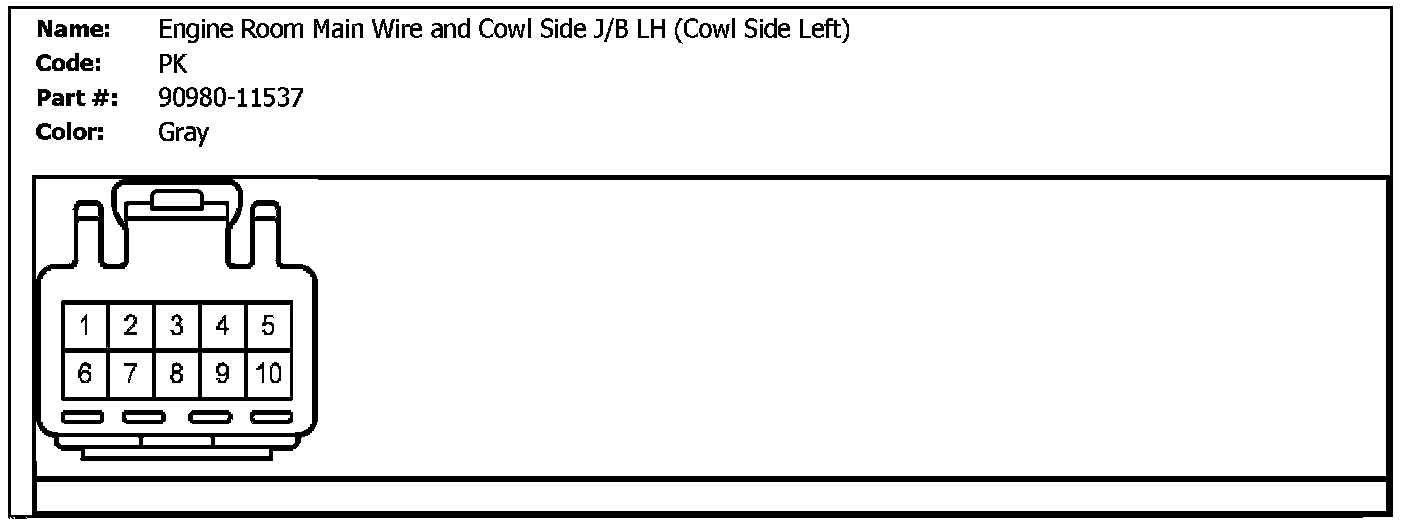

PK (Engine Room Main Wire and Cowl Side J/B LH (Cowl Side Left)):

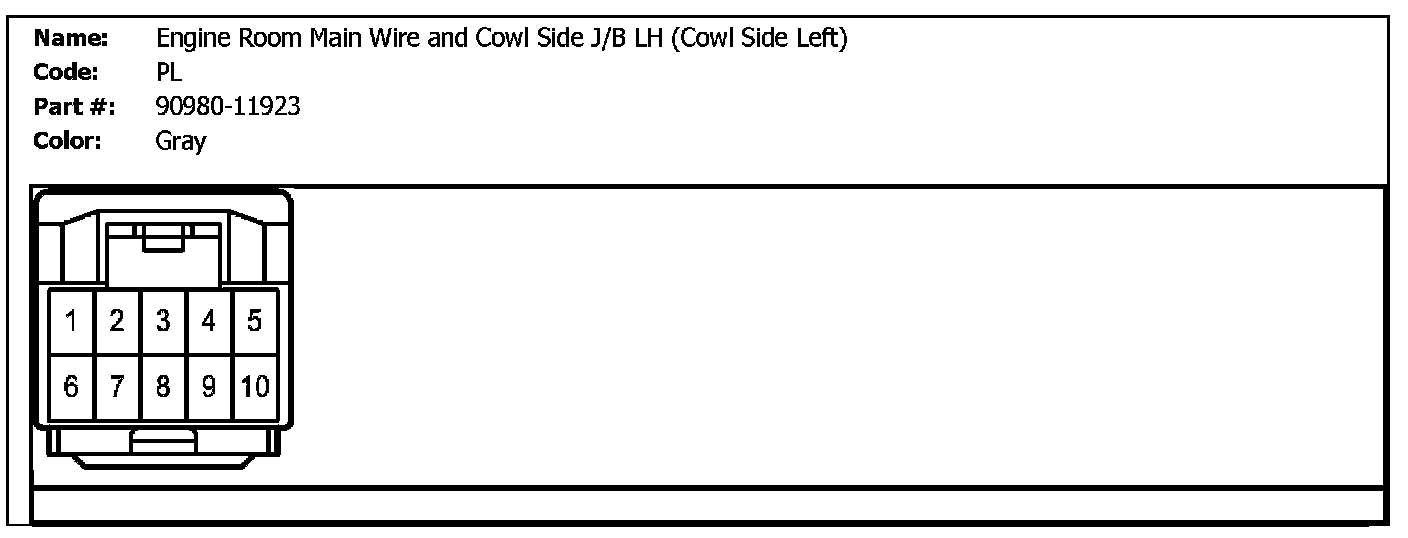

PL (Engine Room Main Wire and Cowl Side J/B LH (Cowl Side Left)):

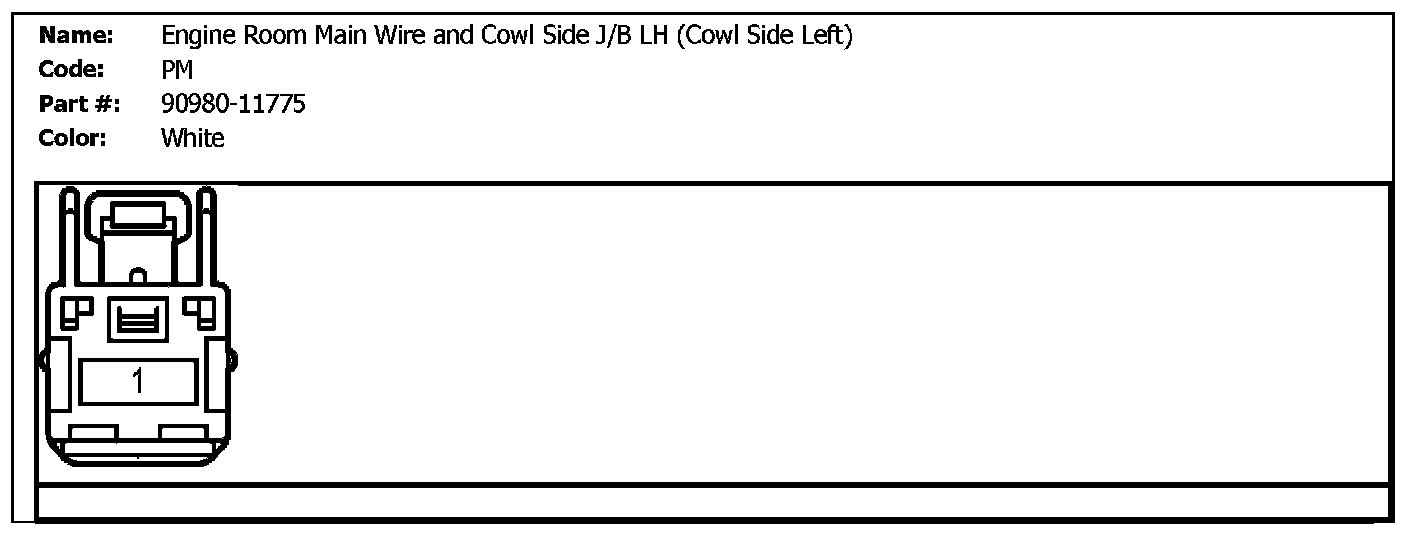

PM (Engine Room Main Wire and Cowl Side J/B LH (Cowl Side Left)):

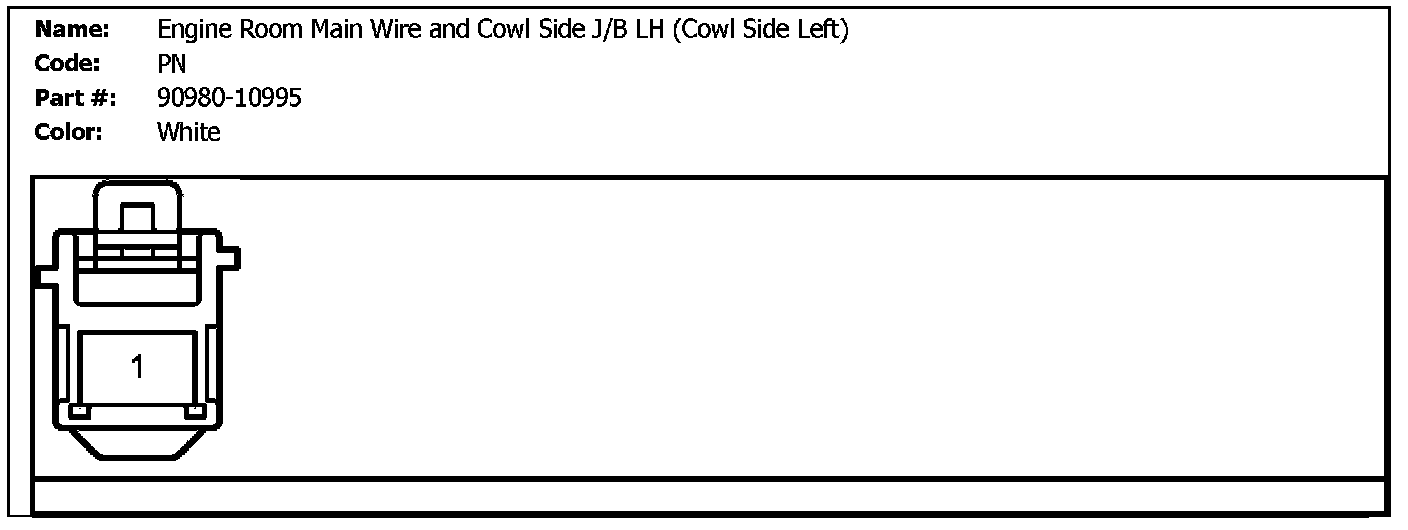

PN (Engine Room Main Wire and Cowl Side J/B LH (Cowl Side Left)):
