Torque Specifications

SERVICE SPECIFICATIONS: 2GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

DRIVE BELT





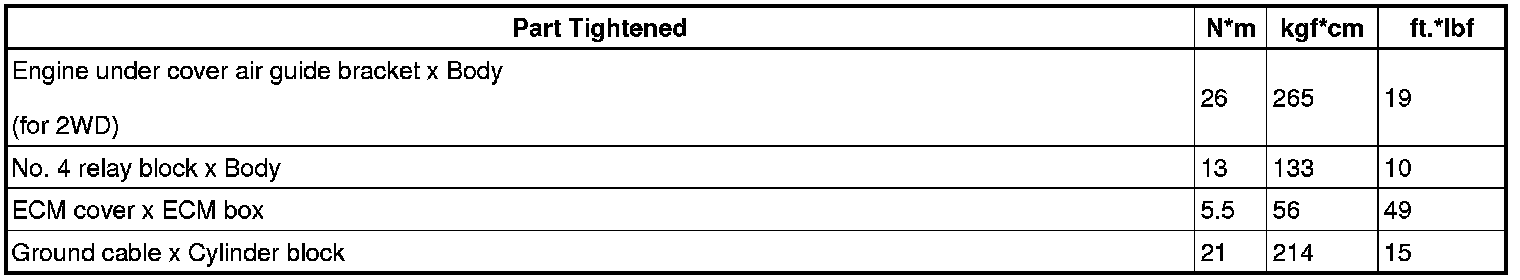

ENGINE ASSEMBLY

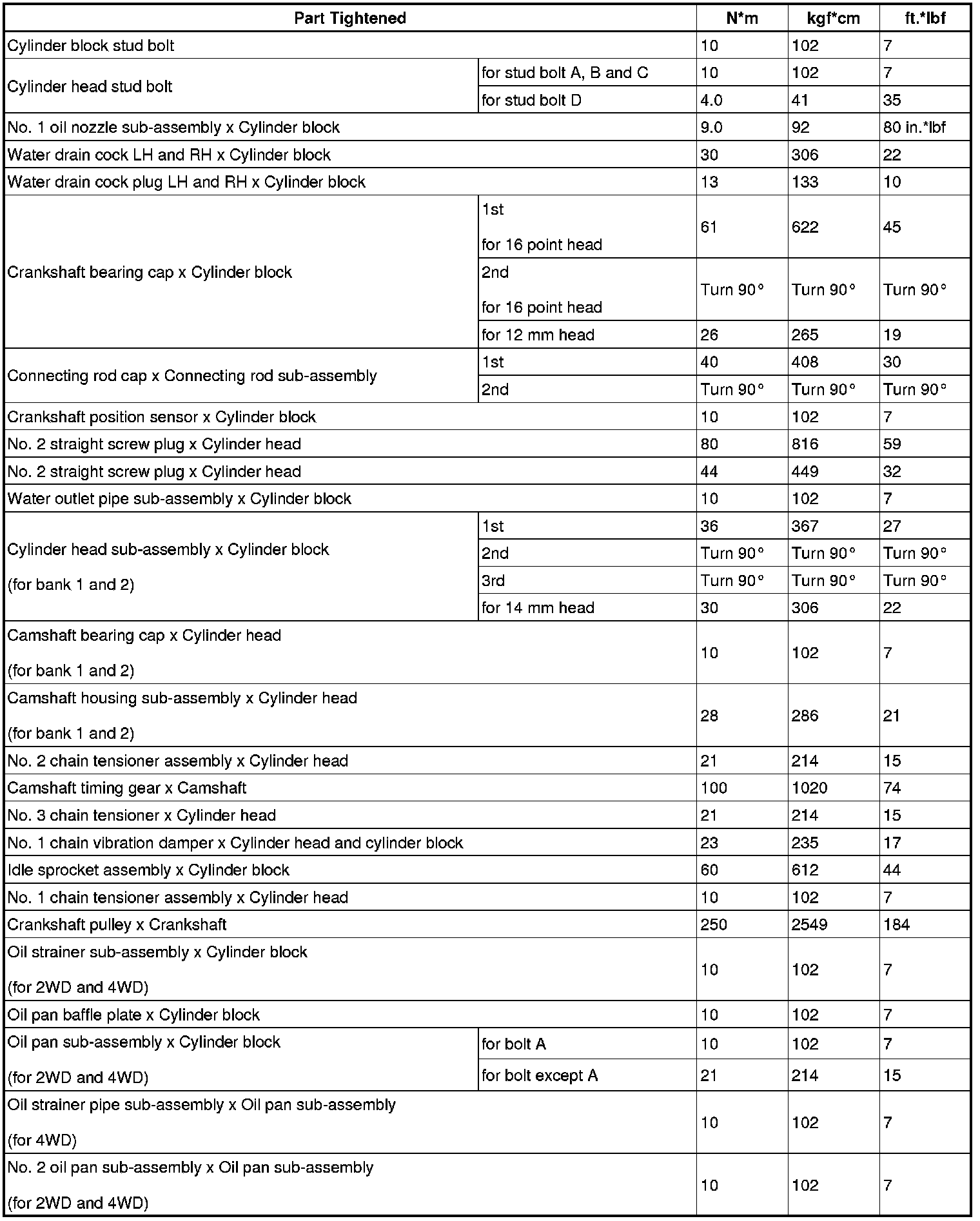

ENGINE UNIT

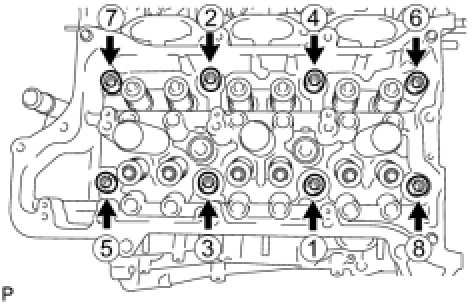

Cylinder head sub-assembly x Cylinder block

(for bank 1 and 2)
1st 36 Nm, 367 Kgf-cm, (27 ft.lbs.)
2nd Turn 90�
3rd Turn 90�
for 14 mm head 30 Nm, 306 Kgf-cm, (22 ft.lbs.)

HEAD BOLT





Standard 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum 10.70 mm (0.421 in.)

Camshaft bearing cap

Refer to article in Service and Repair, Reassembly. Part 2

Crankshaft bearing cap x Cylinder block

1st for 16 point head 61 Nm, 622 Kgf-cm, (45 ft.lb)
2nd for 16 point head Turn 90� Nm, Turn 90� Kgf-cm, (Turn 90� ft.lb)
for 12 mm head 26 Nm, 265 Kgf-cm, (19 ft.lb)

Drive plate and ring gear sub-assembly 83 Nm (850 kgf-cm, 61 ft lb)

INTAKE MANIFOLD Specifications

TIMING CHAIN COVER Specifications

WATER PUMP Specifications
