Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> AA80E Automatic Transmission >> Torque Specifications

Torque Specifications

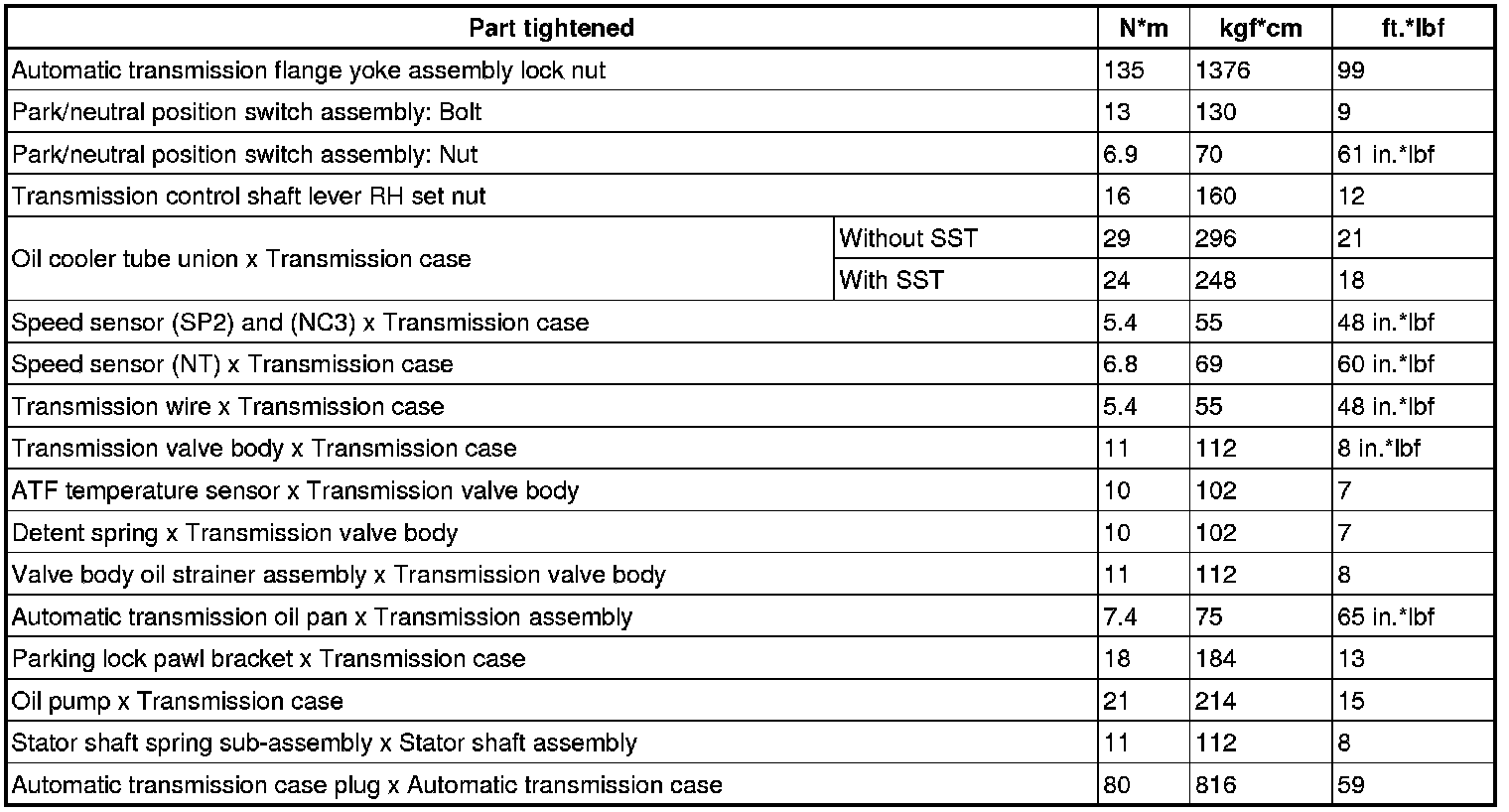

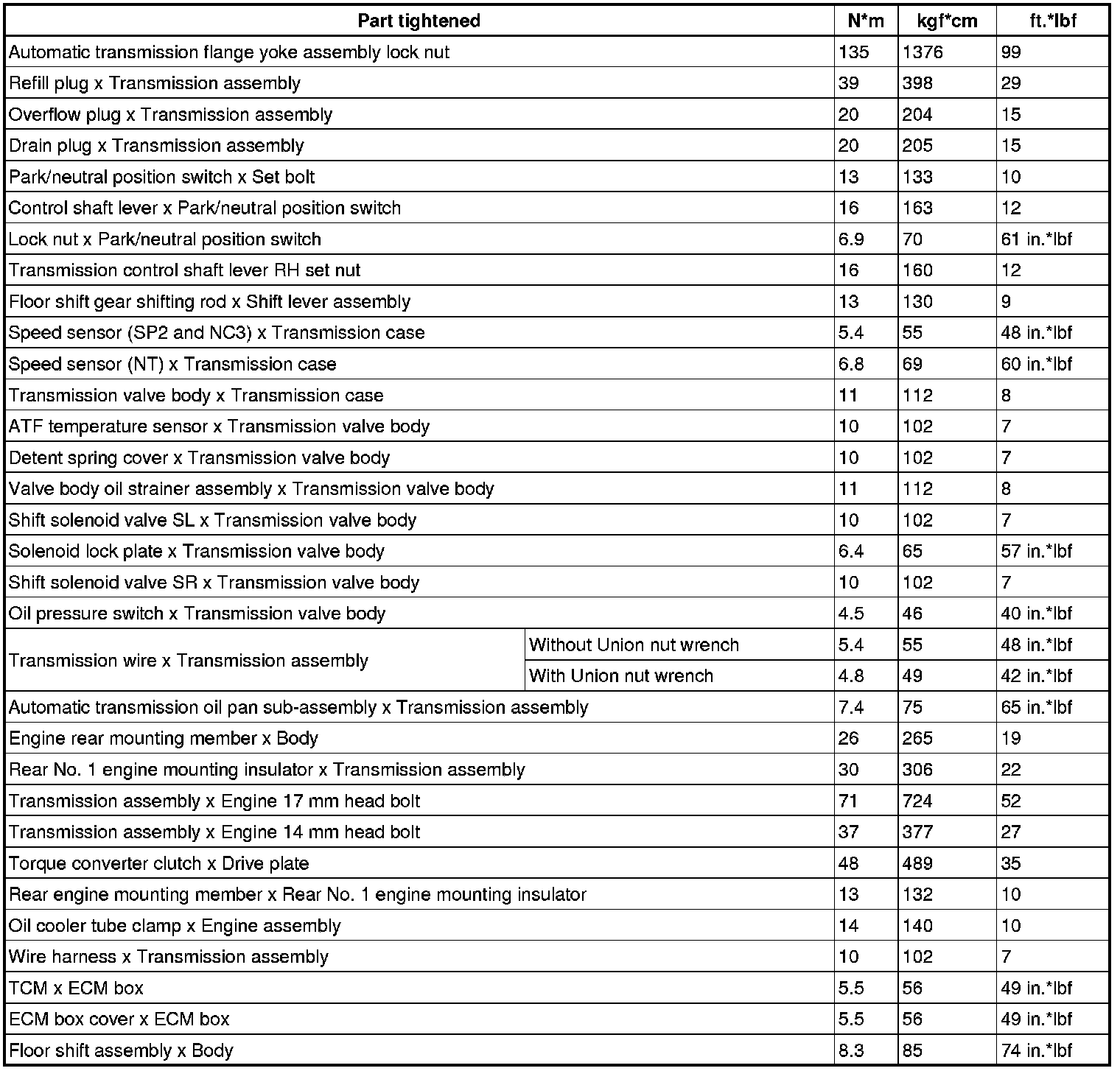

SERVICE SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

AUTOMATIC TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION UNIT
