Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A760H Automatic Transmission >> Torque Specifications

Torque Specifications

SERVICE SPECIFICATIONS: A760H AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

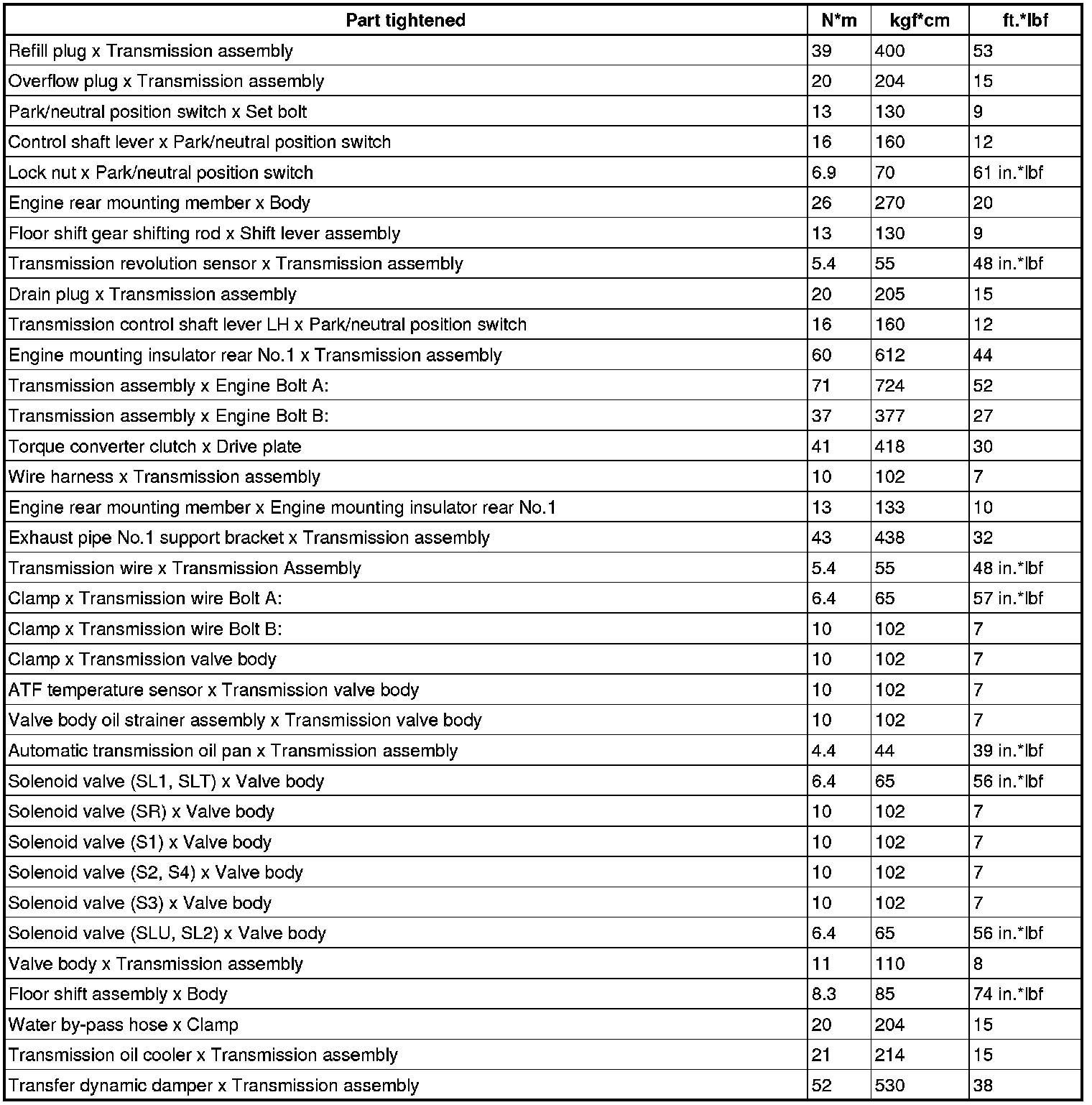

Automatic Transmission Assembly

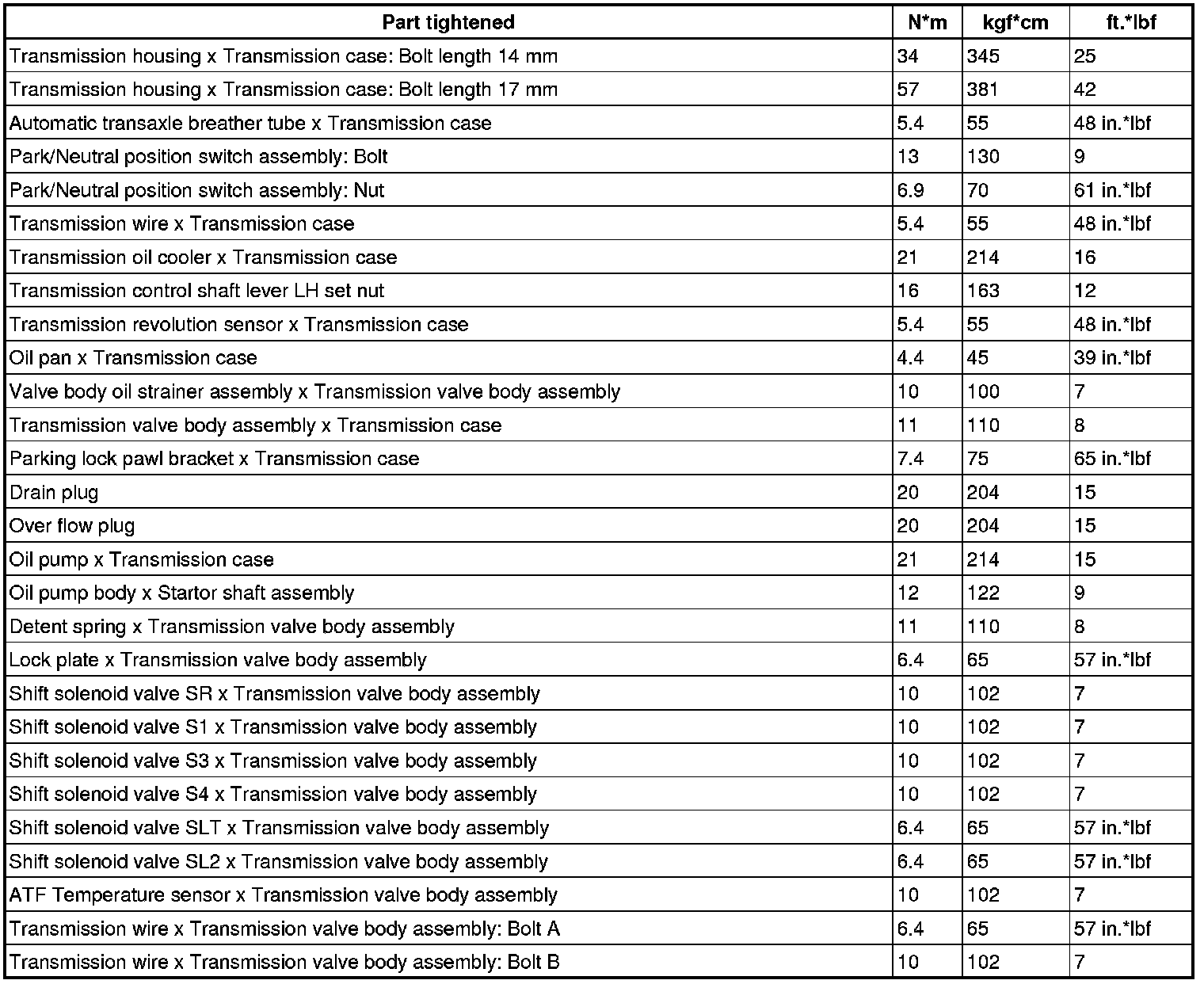

Automatic Transmission Unit
