Rear Power Window Switch

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH: ON-VEHICLE INSPECTION

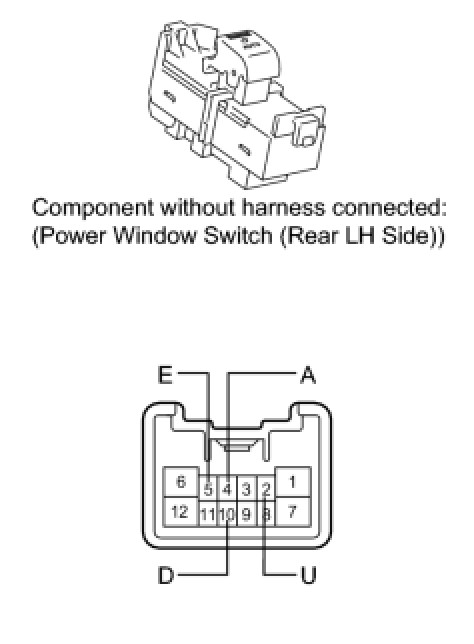

1. INSPECT POWER WINDOW SWITCH (for Rear LH)






(a) Measure the resistance according to the value(s) in the table below.

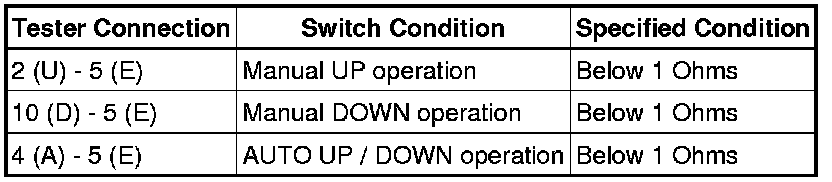

Standard resistance:





If the result is not as specified, replace the power window switch.

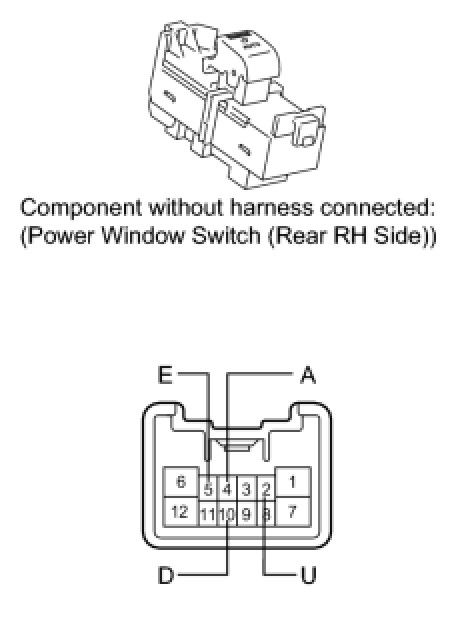

2. INSPECT POWER WINDOW SWITCH (for Rear RH)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the power window switch.
