Installation
A760E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSTALLATION
1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

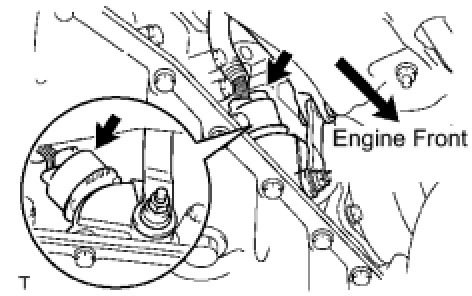

(a) Install the park/neutral position switch to the automatic transmission.
(b) Temporarily install the bolt.
(c) Install a new lock washer and the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
(d) Temporarily install the control shaft lever.
(e) Turn the control shaft lever counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
(f) Remove the transmission control shaft lever.
(g) Align the neutral basic line with the switch groove, and tighten the adjusting bolt.
Torque: 13 Nm (133 kgf-cm, 9 ft-lbf)
(h) Using a screwdriver, bend the tabs of the lock washer.
HINT:
Bend at least 2 of the lock washer tabs.
(i) Install the transmission control shaft lever with the nut.
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)
(j) Connect the park/neutral position switch connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. ADJUST SHIFT LEVER POSITION A760E Automatic Transmission
4. INSPECT SHIFT LEVER POSITION On-Vehicle Inspection
5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY On-Vehicle Inspection
6. INSTALL NO. 2 ENGINE UNDER COVER
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
