Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

1. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY Removal

2. REMOVE FRONT SEAT ASSEMBLY Removal

3. REMOVE SEAT POSITION SENSOR

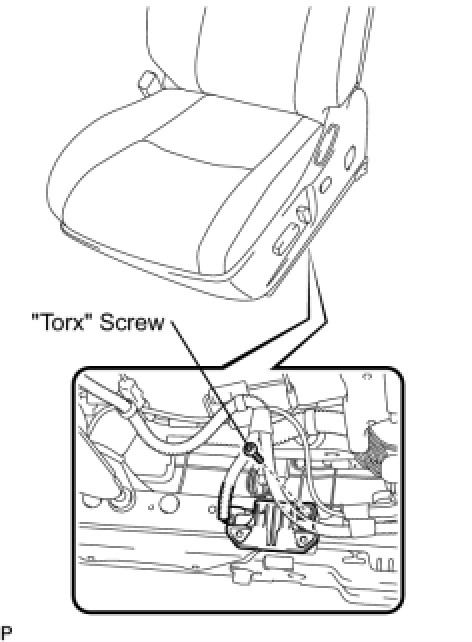

(a) Using a "torx" socket wrench (T30), remove the "torx" screw and seat position sensor with sensor protector.
(b) Disconnect the connector.

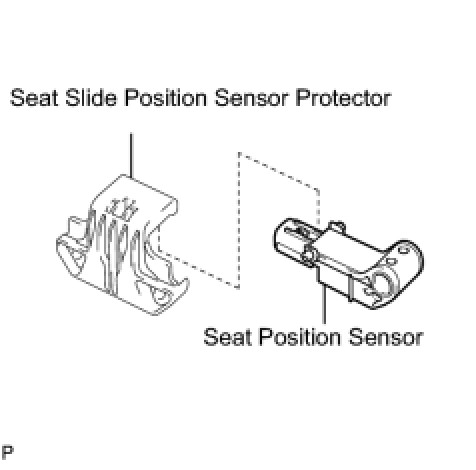

(c) Separate the seat slide position sensor protector from the seat position sensor.
