Impact Sensor: Diagrams

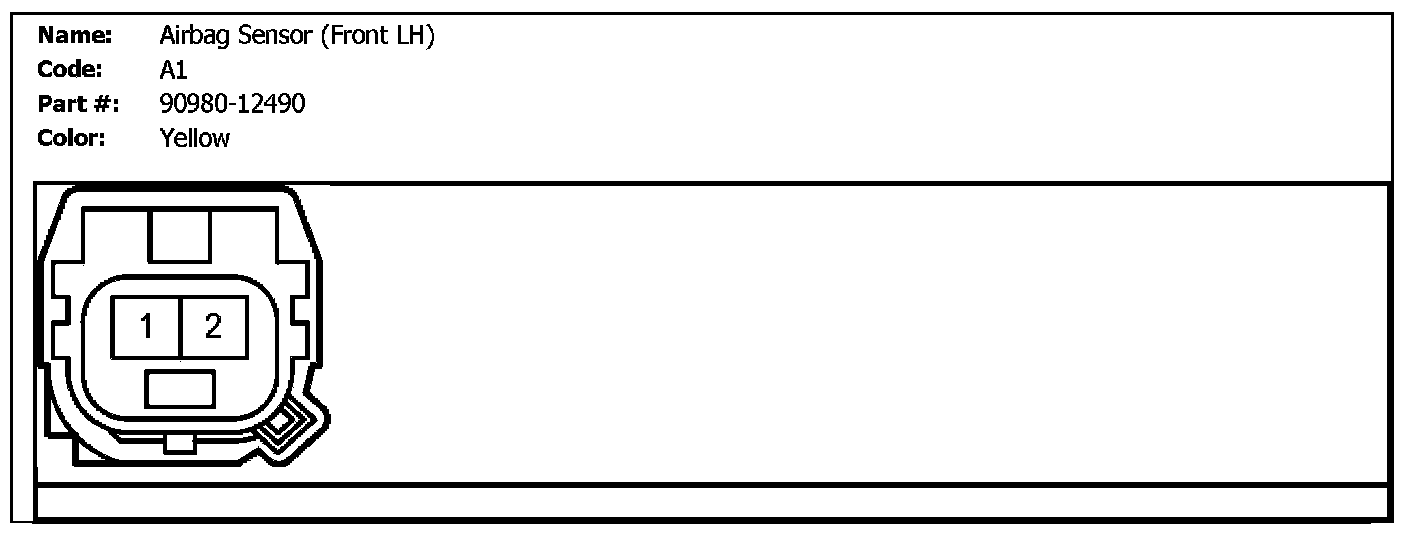

A1 (Airbag Sensor (Front LH)):

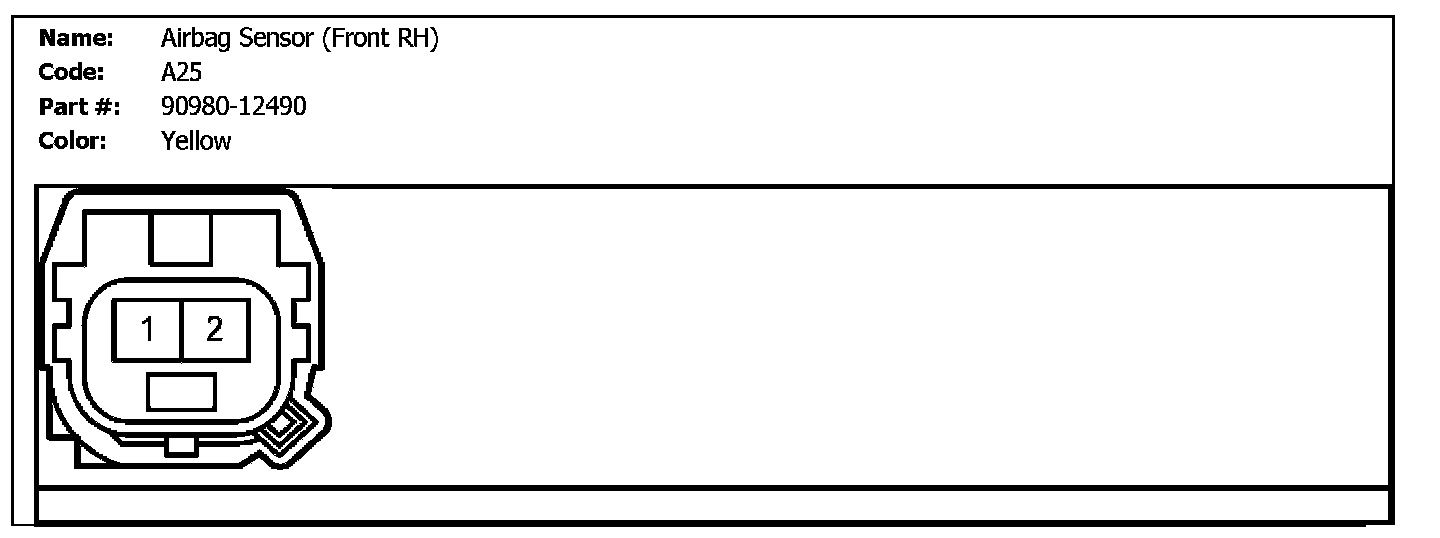

A25 (Airbag Sensor (Front RH)):

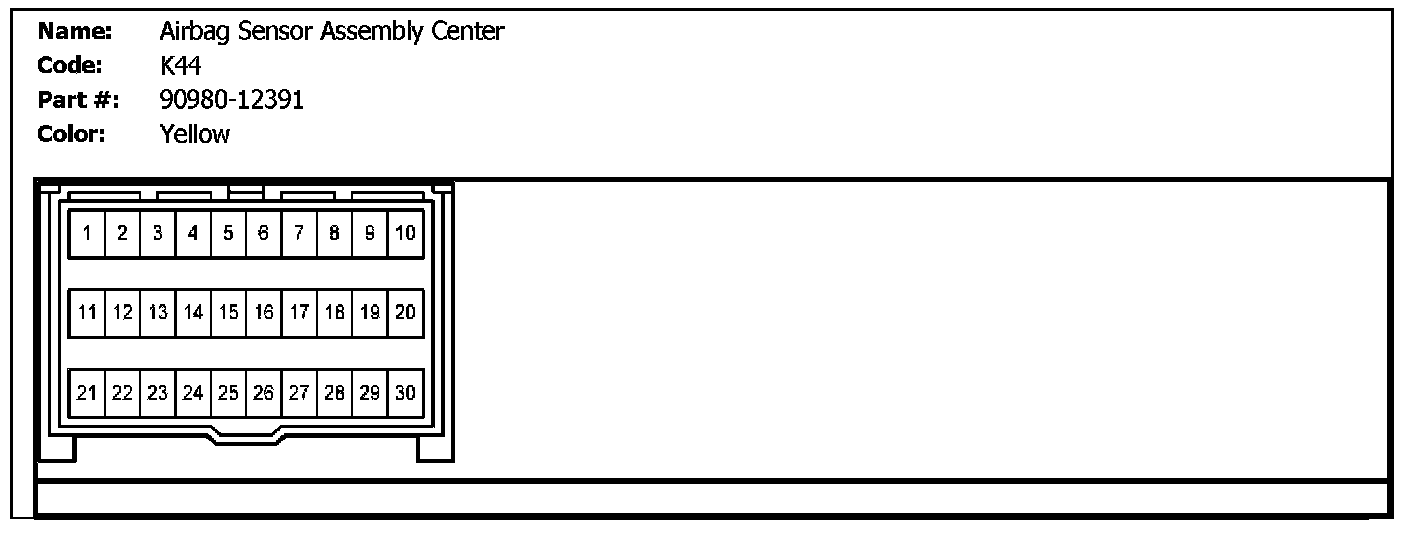

K44 (Airbag Sensor Assembly Center):

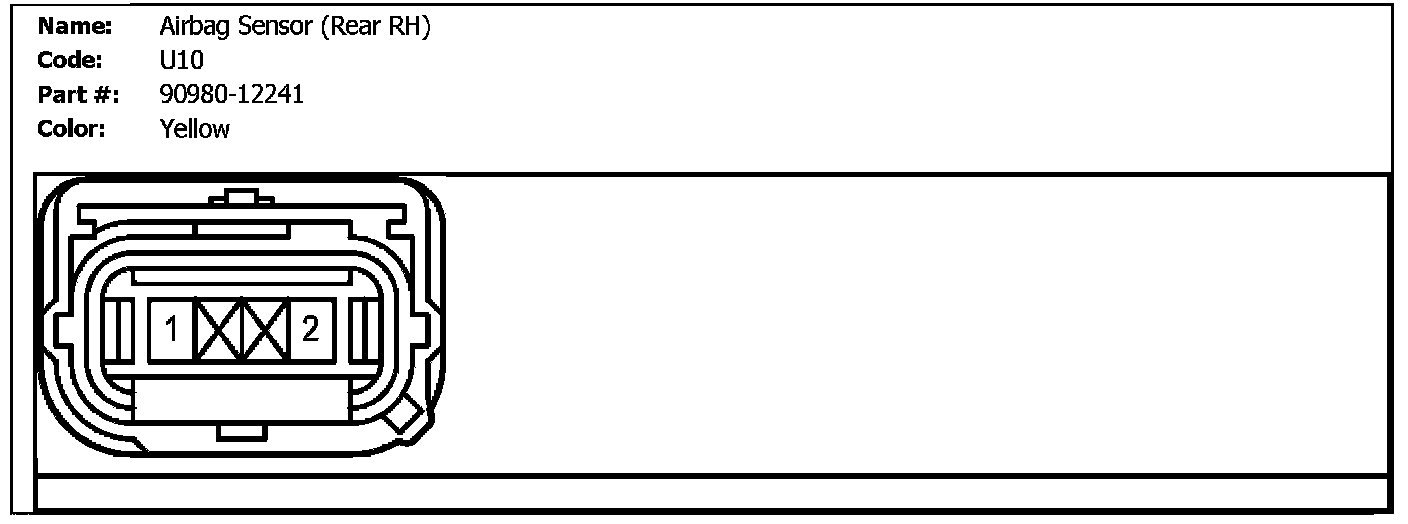

U10 (Airbag Sensor (Rear RH)):

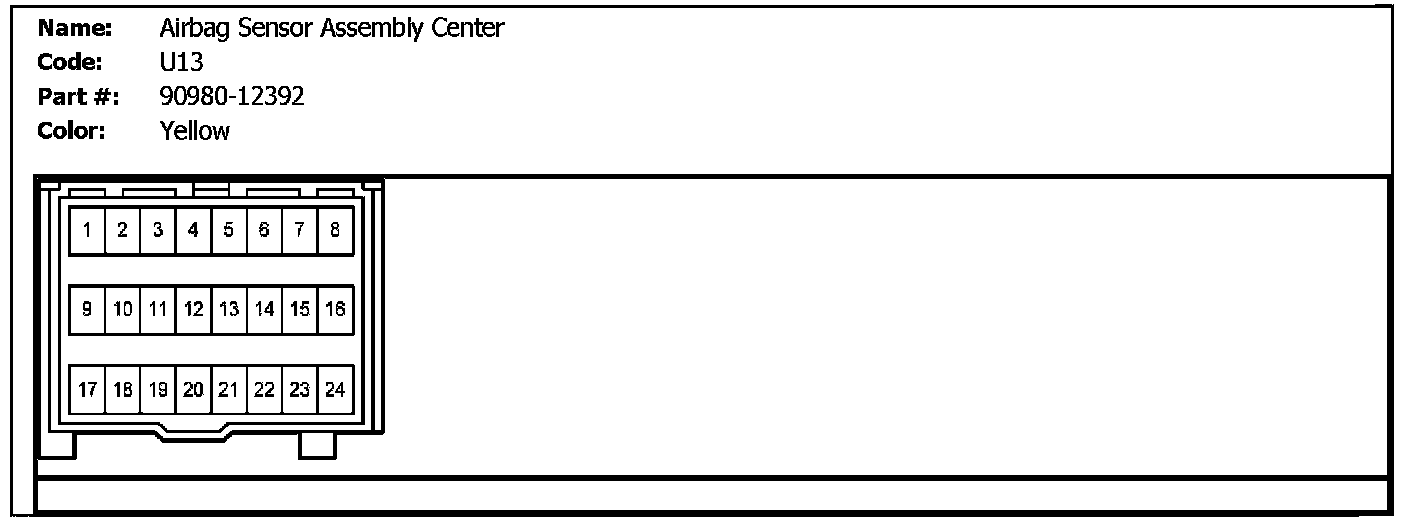

U13 (Airbag Sensor Assembly Center):

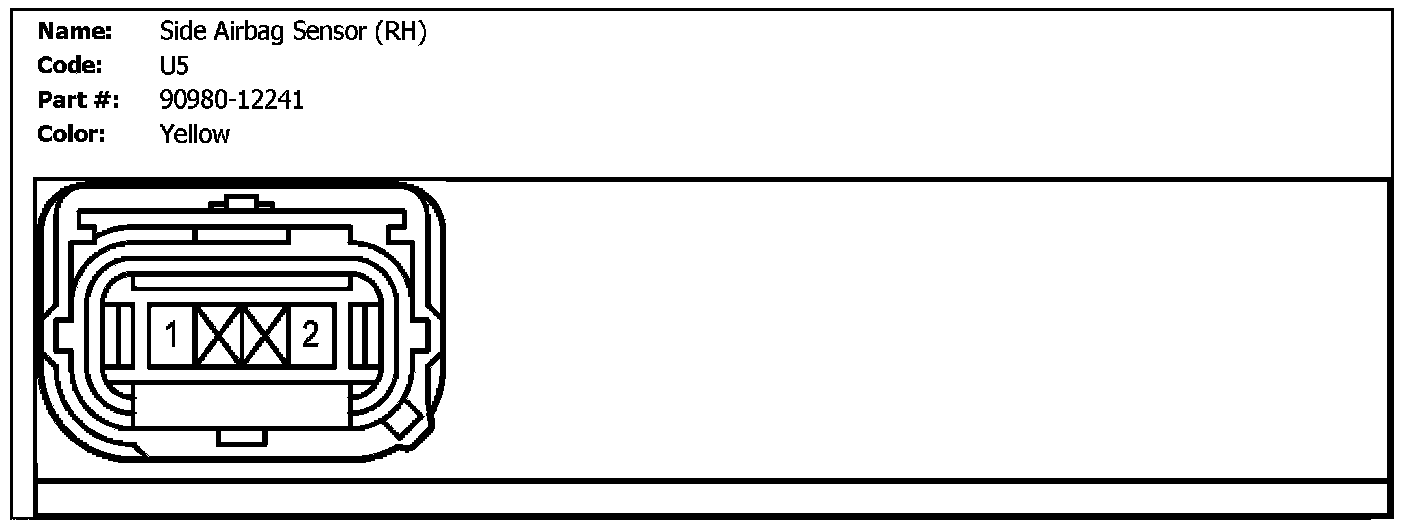

U5 (Side Airbag Sensor (RH)):

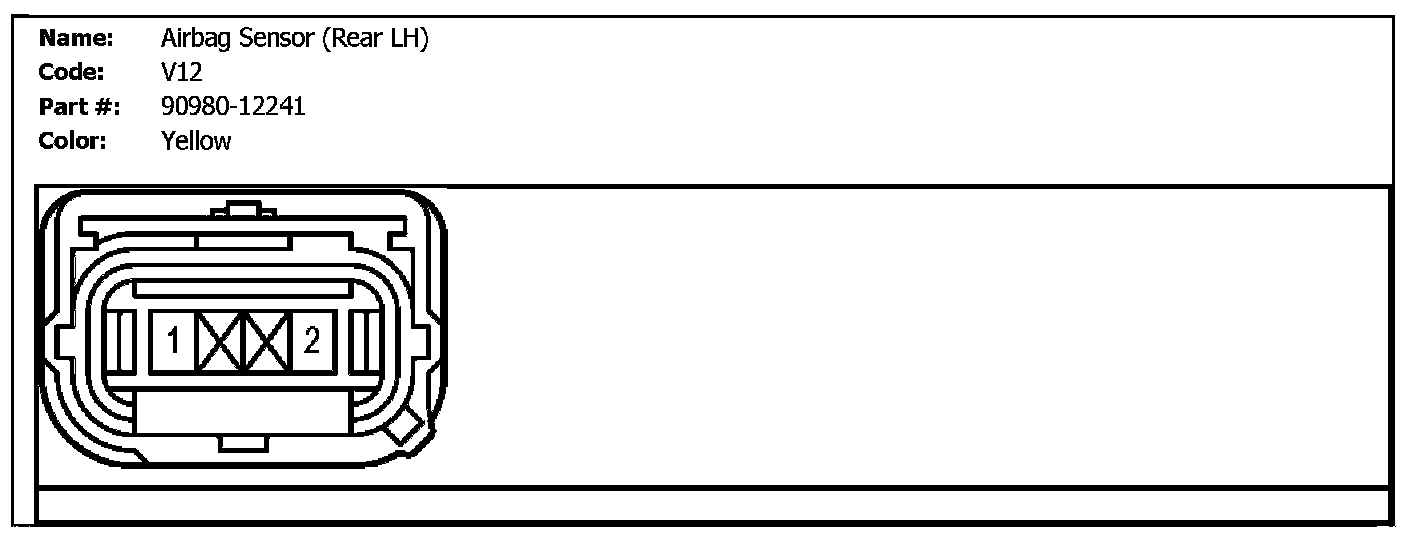

V12 (Airbag Sensor (Rear LH)):

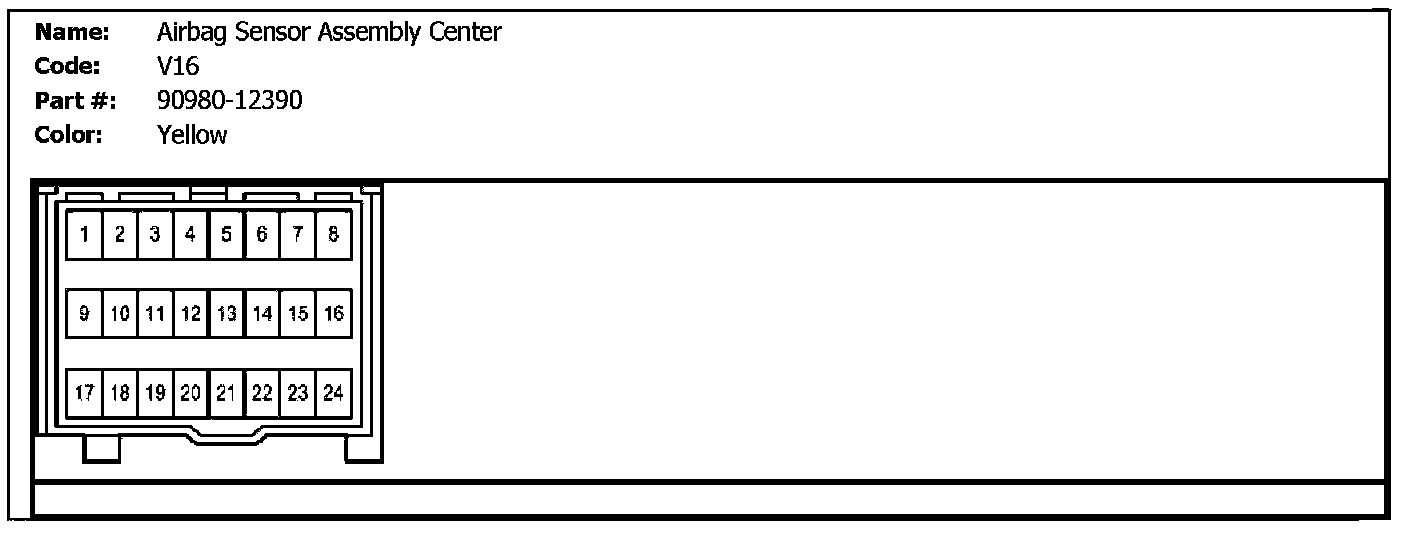

V16 (Airbag Sensor Assembly Center):

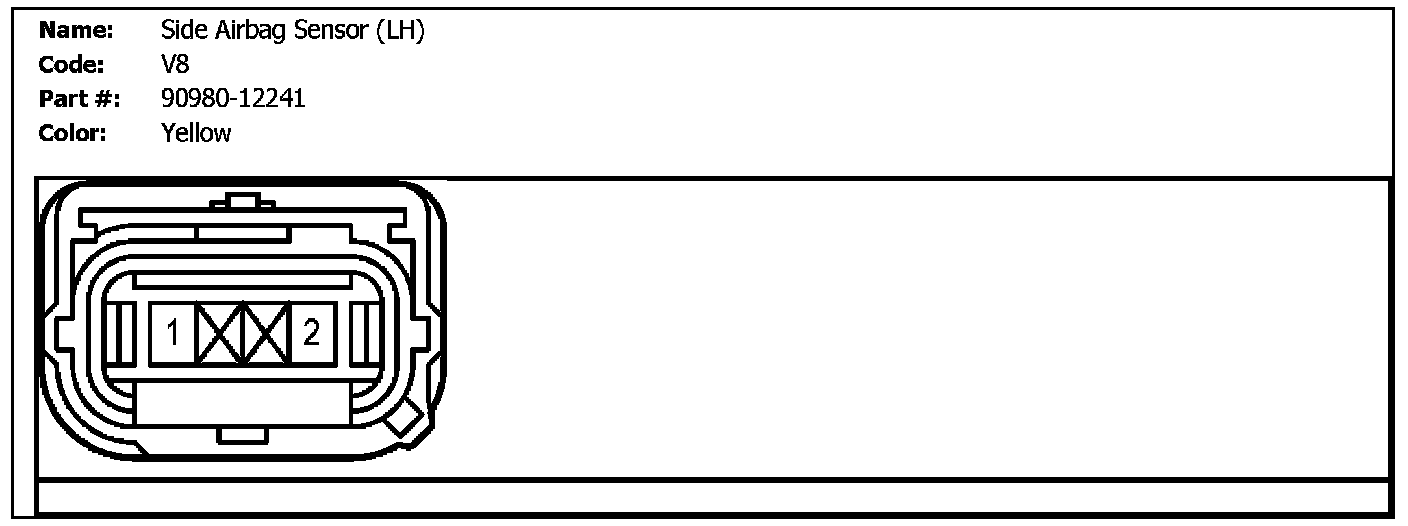

V8 (Side Airbag Sensor (LH)):
