Removal

2GR-FSE STARTING: ENGINE SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal

3. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

5. REMOVE FRONT DOOR SCUFF PLATE LH Removal

6. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

7. REMOVE INSTRUMENT SIDE PANEL LH Removal

8. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

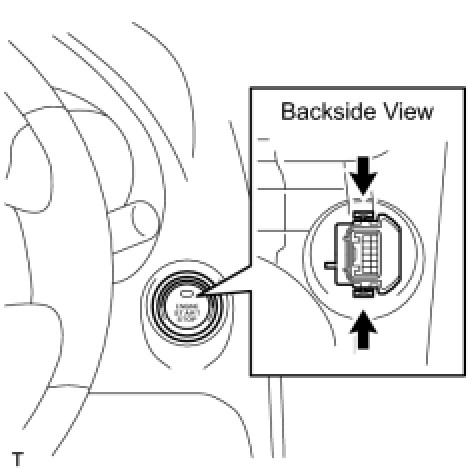

11. REMOVE ENGINE SWITCH
(a) Disconnect the switch connector.
(b) Detach the 2 claws and remove the switch.
