AIR CONDITIONING: EVAPORATOR TEMPERATURE SENSOR: ON-VEHICLE INSPECTION

1. INSPECT EVAPORATOR TEMPERATURE SENSOR






(a) Disconnect the evaporator temperature sensor connector.
(b) Measure the resistance according to the value(s) in the table below.

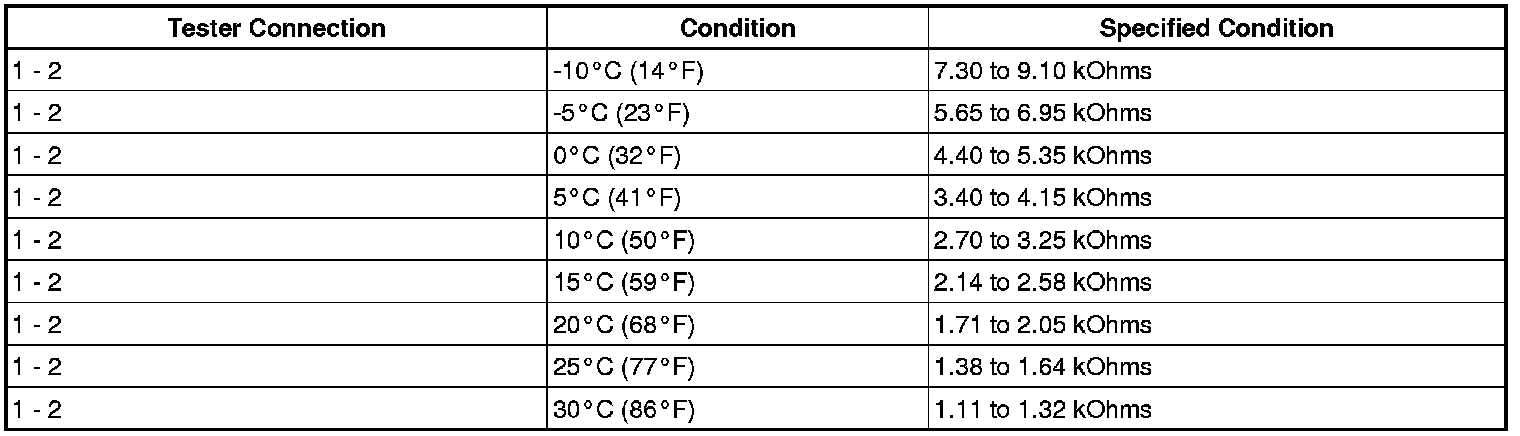

Standard resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be the same as the ambient temperature.
HINT:

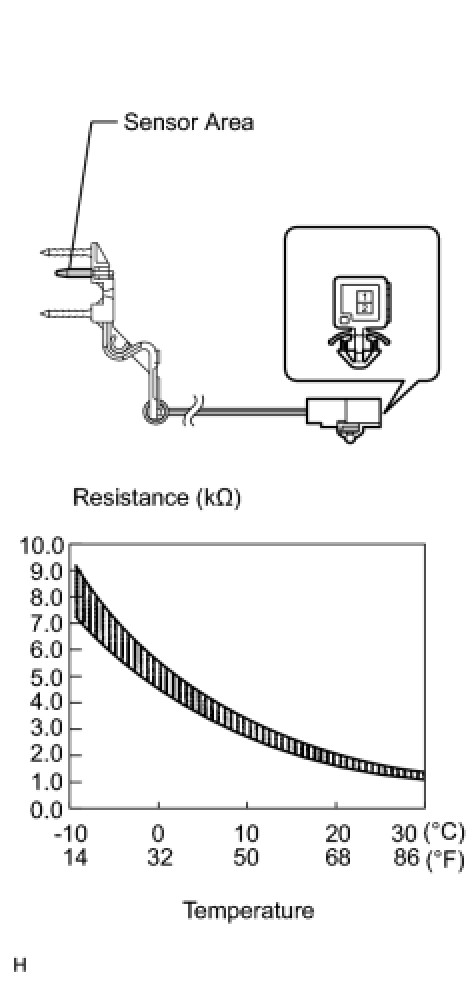

As the temperature increases, the resistance decreases (see the graph).
