Removal

BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE SPEED SENSOR REAR LH

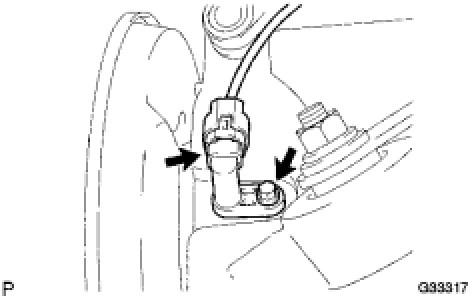

(a) Disconnect the speed sensor rear LH connector.
(b) Remove the bolt and speed sensor rear LH.
NOTICE:
Prevent foreign matter from attaching to the sensor tip.
