Removal

BRAKE CONTROL: FRONT SPEED SENSOR (for 2WD): REMOVAL

BRAKE CONTROL: FRONT SPEED SENSOR
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are the LH side.

1. REMOVE FRONT WHEEL
2. DISCONNECT SPEED SENSOR FRONT LH

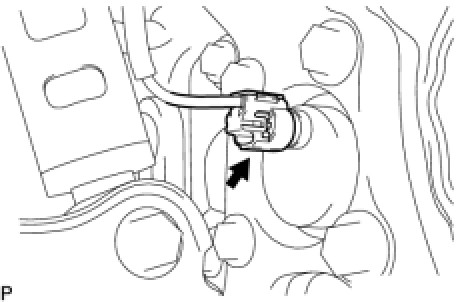

(a) Disconnect the speed sensor connector from the speed sensor front LH.
NOTICE:

- Be careful not to damage the speed sensor.
- Prevent foreign matter from adhering to the speed sensor.


3. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY LH Removal

4. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH Removal

5. REMOVE SPEED SENSOR FRONT LH
(a) Install the 3 hub bolts. Placing an aluminum plate below the hub and bearing assembly, hold them in a vise.
NOTICE:
Replace the hub and bearing assembly if it is dropped or receives a strong shock.

(b) Remove the 2 pins from the SST (09520-00031) and separate the attachment (09521-00010) using a pin punch (3 mm) or hammer.
SST: 09520-00031

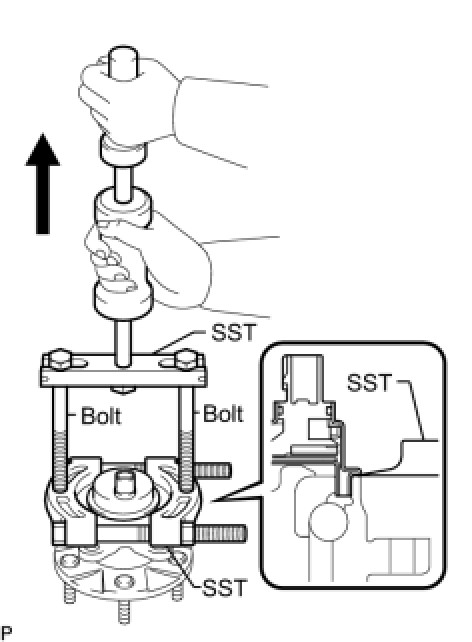

(c) Remove the skid control sensor from the hub and bearing assembly using the SST and 2 bolts (90101-12007).
SST: 09520-00031
09520-00040
SST: 09521-00020
SST: 09950-00020
NOTICE:

- Keep the sensor away from magnets.
- Pull the skid control sensor off straight, taking care not to make contact with the skid control sensor rotor.
- If the speed sensor rotor is damaged or deformed, replace the hub and bearing assembly.
- Do not scratch the area where the skid control sensor contacts the hub and bearing assembly.
- Do not attach foreign matter to the speed sensor rotor.
