Wheel Speed Sensor: Diagrams

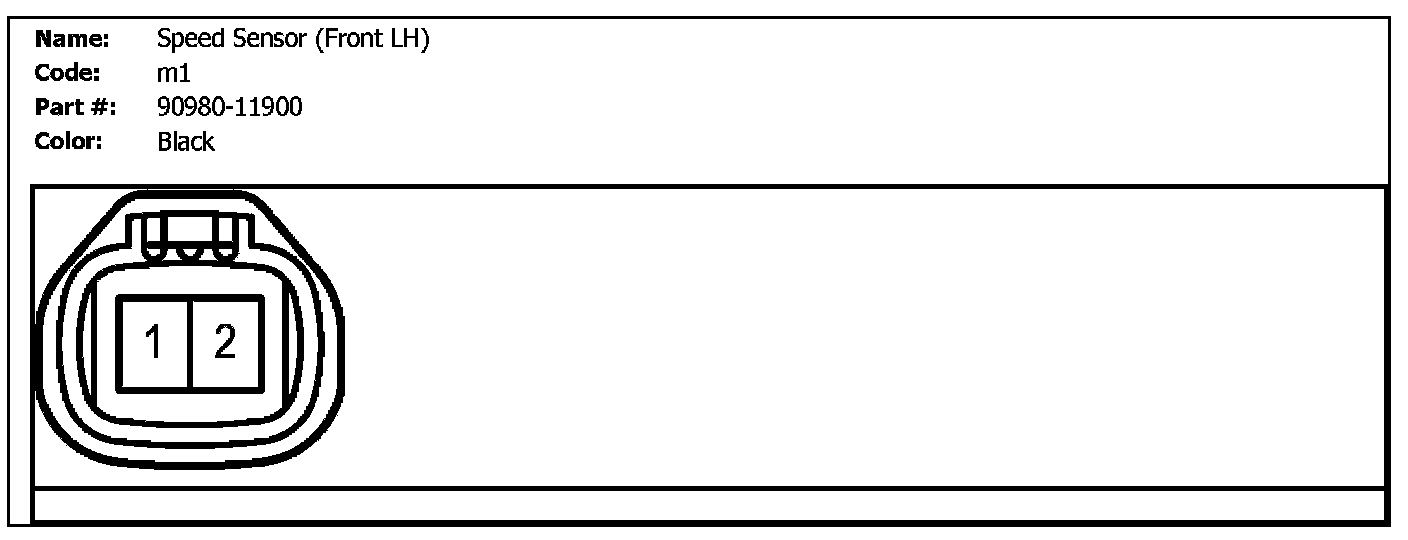

m1 (Speed Sensor (Front LH)):

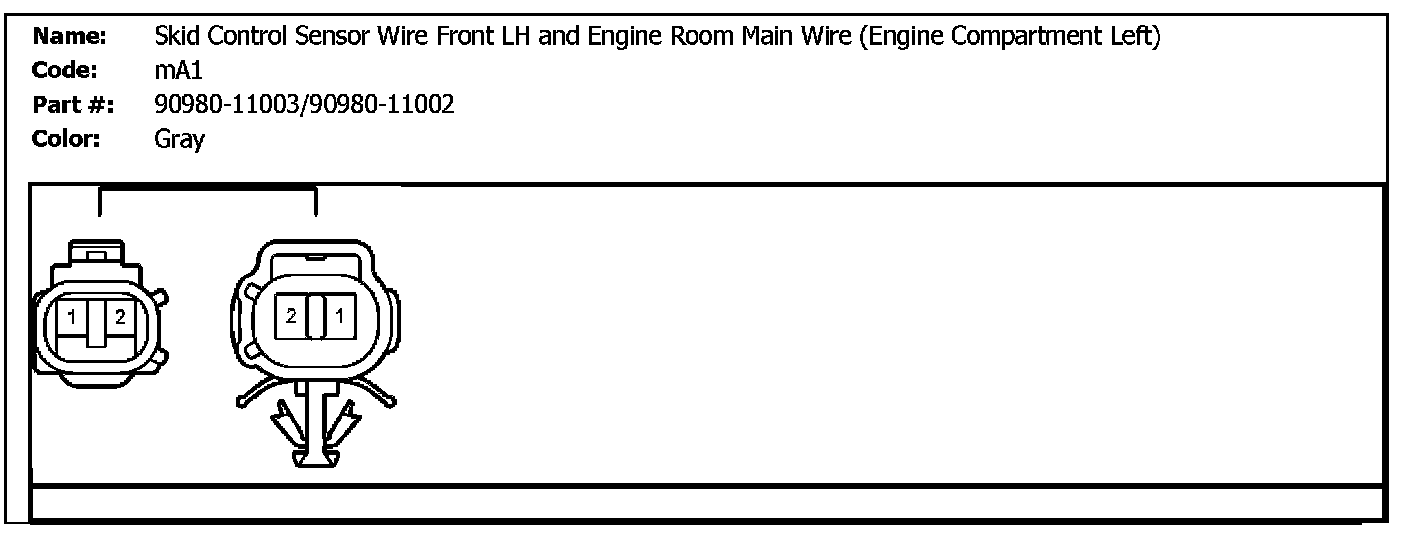

mA1 (Skid Control Sensor Wire Front LH and Engine Room Main Wire (Engine Compartment Left)):

n1 (Speed Sensor (Rear RH)):

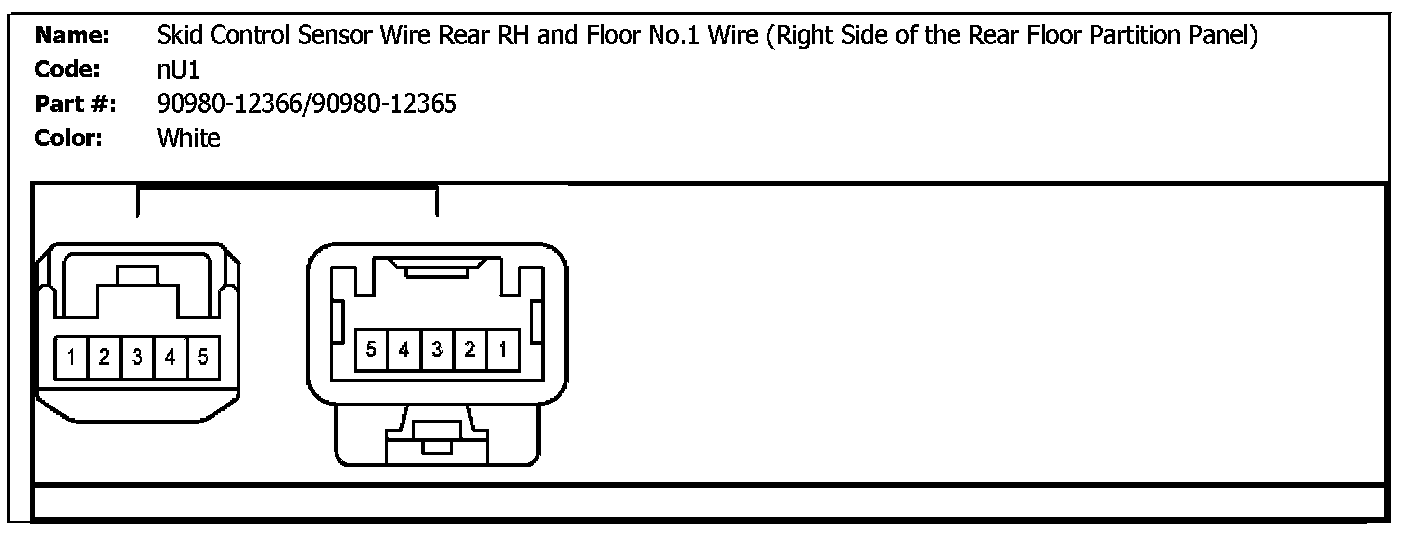

nU1 (Skid Control Sensor Wire Rear RH and Floor No.1 Wire (Right Side Of The Rear Floor Partition Panel)):

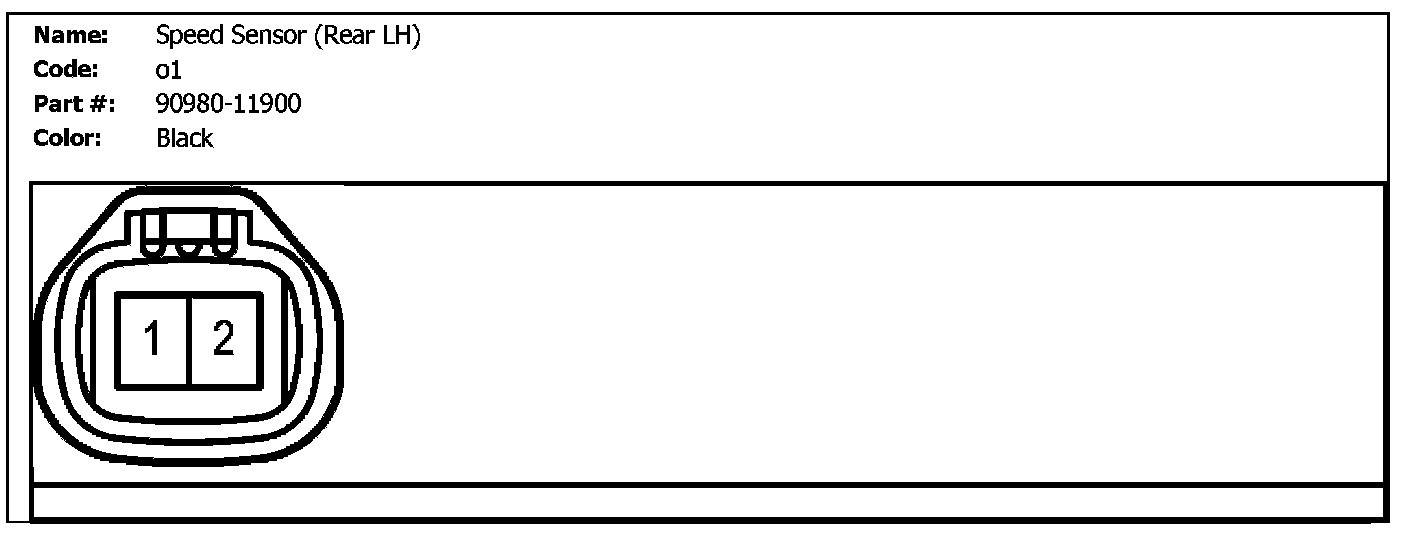

o1 (Speed Sensor (Rear LH)):

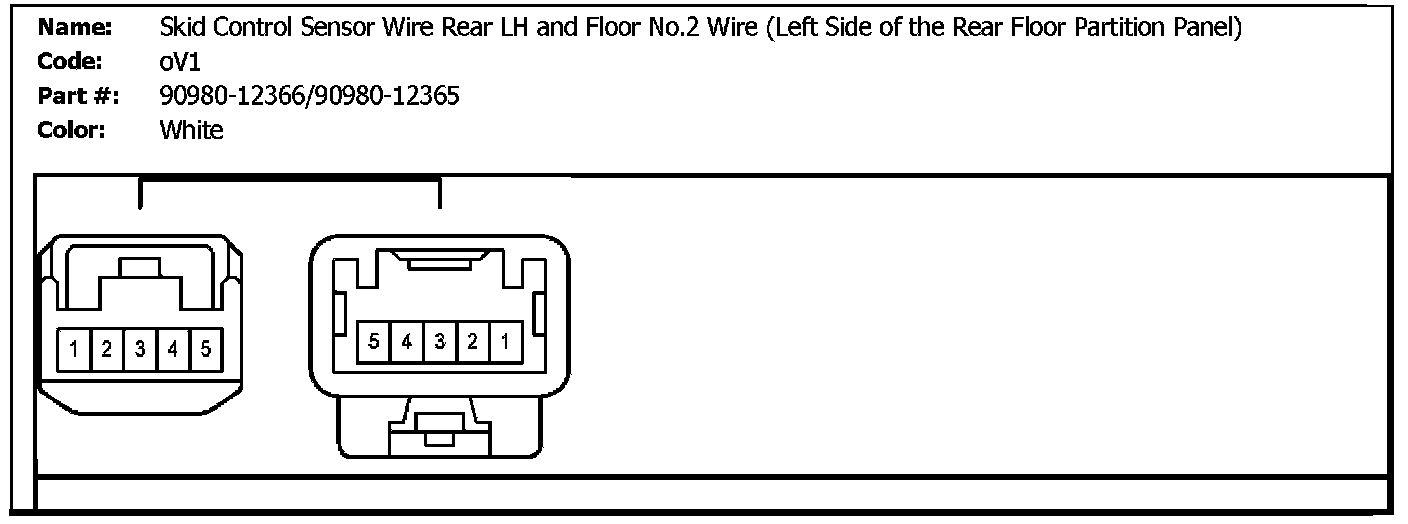

oV1 (Skid Control Sensor Wire Rear LH and Floor No.2 Wire (Left Side Of the Rear Floor Partition Panel)):

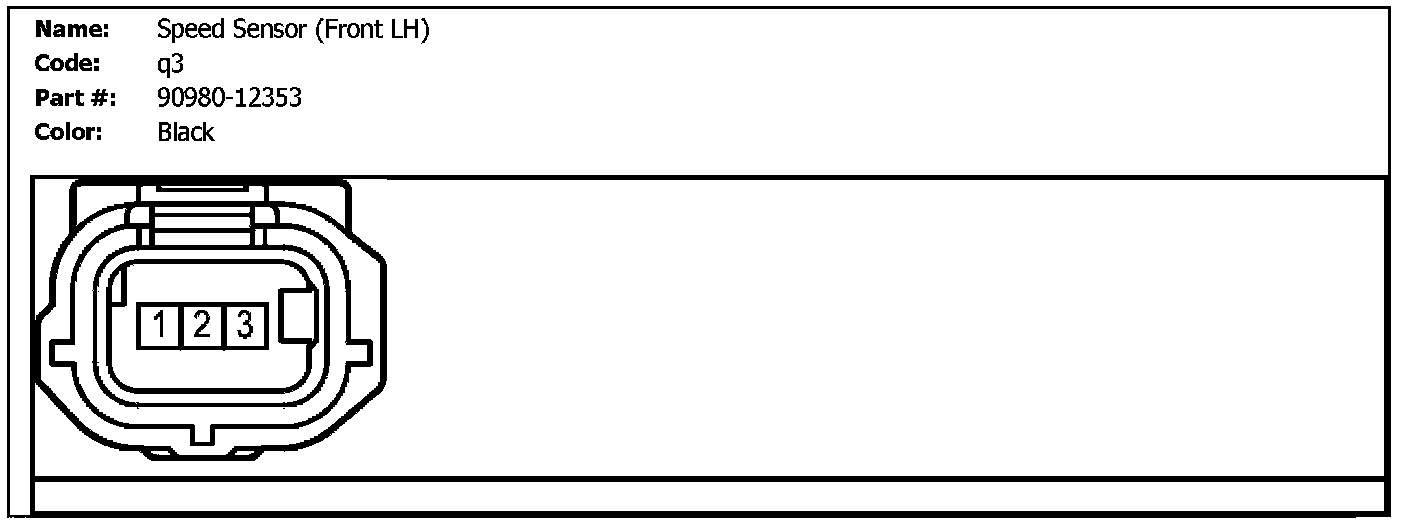

q3 (Speed Sensor (Front LH)):

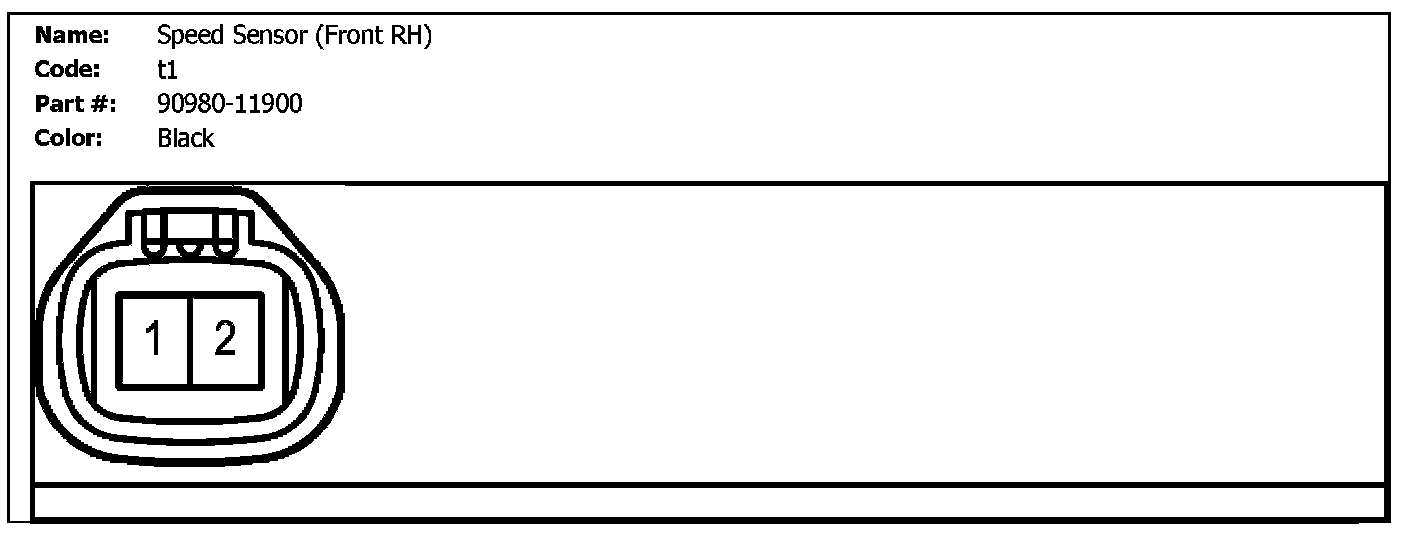

t1 (Speed Sensor (Front RH)):

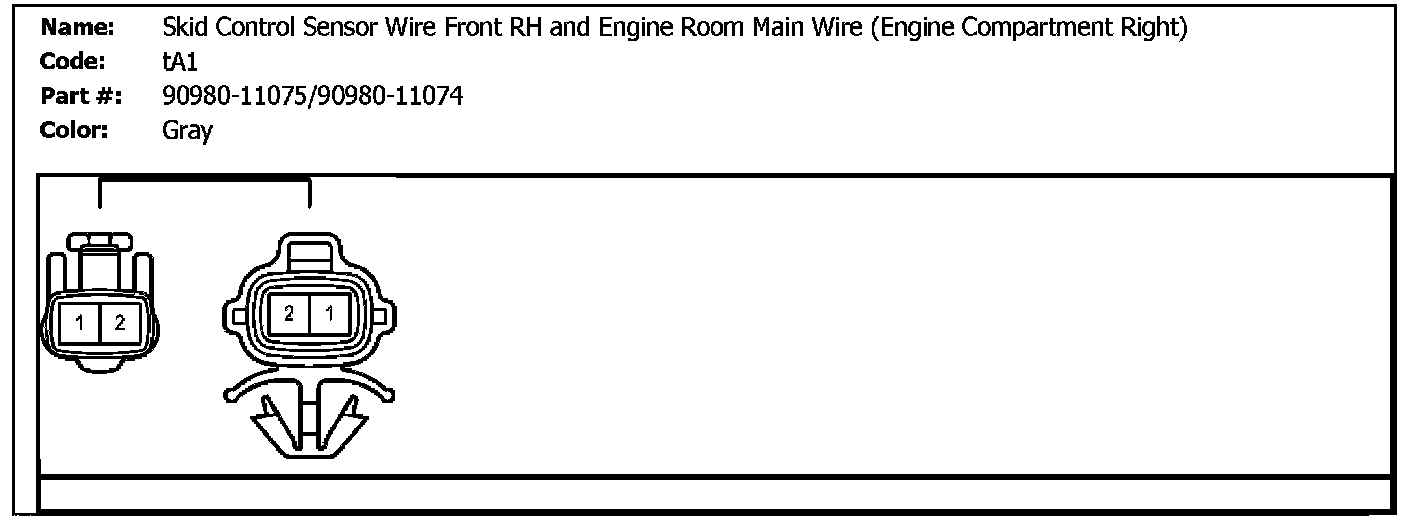

tA1 (Skid Control Sensor Wire Front RH And Engine Room Main Wire (Engine Compartment Right)):
