BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

1. INSTALL STEERING SENSOR

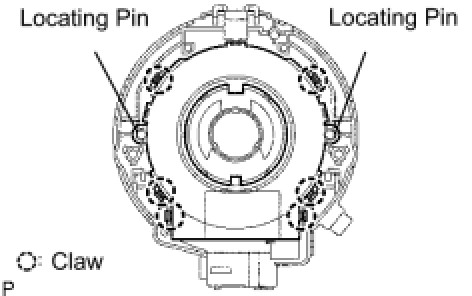

(a) Align the locating pins, engage the claws and install the steering sensor to the spiral cable sub-assembly
2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR Installation

3. INSTALL STEERING COLUMN COVER
for 2GR-FSE Installation
for 1UR-FSE Installation
4. CENTER SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY
for 2GR-FSE Installation
for 1UR-FSE Installation
6. INSTALL HORN BUTTON ASSEMBLY Installation

7. INSPECT STEERING WHEEL CENTER POINT
8. CONNECT BATTERY NEGATIVE TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSPECT HORN BUTTON ASSEMBLY Installation

10. INSPECT SRS WARNING LIGHT
Diagnosis System
