Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION





1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

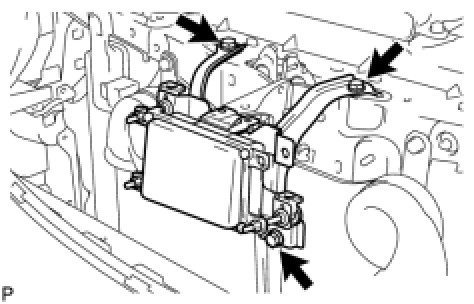

(a) Install the sensor with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the sensor connector.
2. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments

3. INSTALL FRONT BUMPER ASSEMBLY Installation

4. INSTALL COOL AIR INTAKE DUCT SEAL Installation

5. PUT VEHICLE IN THESE CONDITION Adjustments

6. ADJUST FOG LIGHT AIM Installation
