Removal

BRAKE CONTROL: YAW RATE AND ACCELERATION SENSOR: REMOVAL

1. REMOVE CONSOLE UPPER PANEL GARNISH FRONT Removal

2. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY Removal

3. REMOVE CONSOLE BOX PLATE Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

6. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

7. REMOVE CONSOLE BOX Removal

8. REMOVE CONSOLE BOX NO.2 DUCT

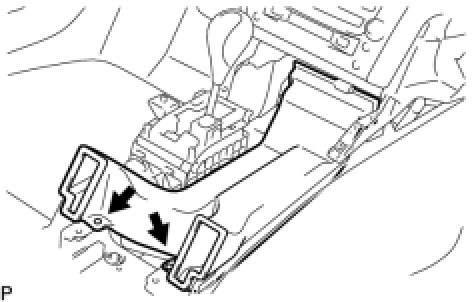

(a) Remove the 2 clips and the console box No.2 duct.

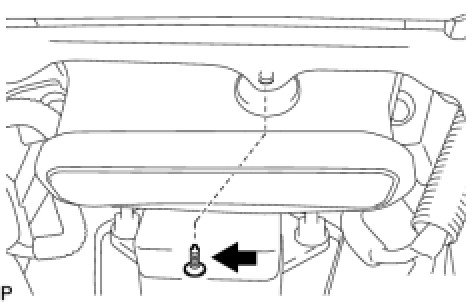

9. REMOVE CONSOLE BOX NO.1 DUCT






(a) Remove the clip and the console box duct No.1.

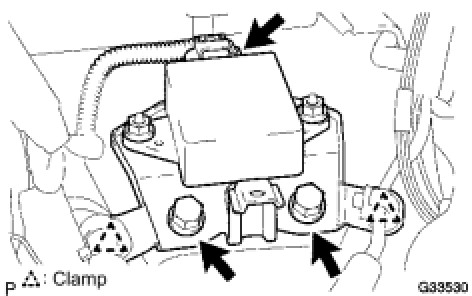

10. REMOVE YAW RATE SENSOR






(a) Disconnect the yaw rate sensor connector.
(b) Separate the 2 wire harness clamps.
(c) Remove the 2 bolts and yaw rate sensor.
NOTICE:
Do not remove the sensor from the bracket.
