Installation

SEAT: FRONT POWER SEAT LUMBAR SWITCH: INSTALLATION

HINT:
- Use the same procedures for the LH and RH side.
- A bolt without a torque specification is shown in the standard bolt chart. Standard Bolt - Specified Torque For Standard Bolts

1. INSTALL FRONT POWER SEAT LUMBAR SWITCH
(a) Install the switch to the front cushion shield with the 2 screws.
2. INSTALL NO. 1 FRONT CUSHION SHIELD WITH CUSHION SHIELD INNER
(a) Connect the connector to the lumbar front power seat switch.

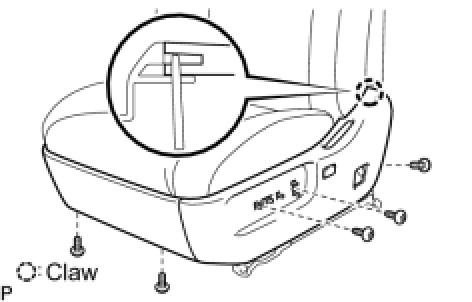

(b) Attach the claw and install the cushion shield with cushion shield inner.
(c) Install the 5 screws.
(d) Connect the 2 rubber bands of the front seatback board to the seat frame.
3. INSTALL RECLINING POWER SEAT SWITCH KNOB
4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB






5. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
(a) Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(b) Install the front seat outer belt anchor with the bolt.
(c) Install the seat belt anchor cover cap.
(d) Install the front seat belt hole cover.
