Installation

AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY

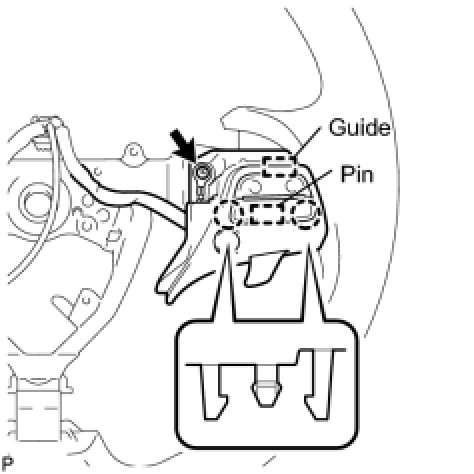

(a) Engage the 2 claws and pin and install the steering pad switch assembly.
(b) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)

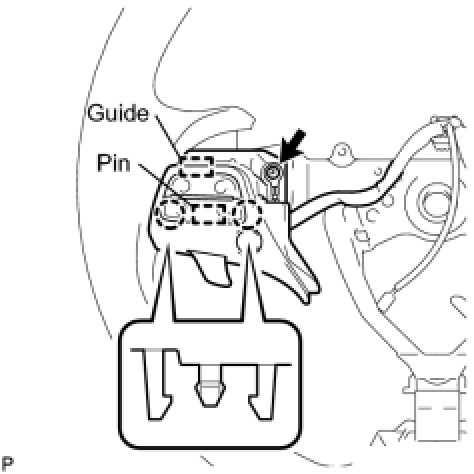

(c) Engage the 2 claws and pin and install the steering pad switch assembly.
(d) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)
2. INSTALL LOWER STEERING WHEEL BOSS COVER

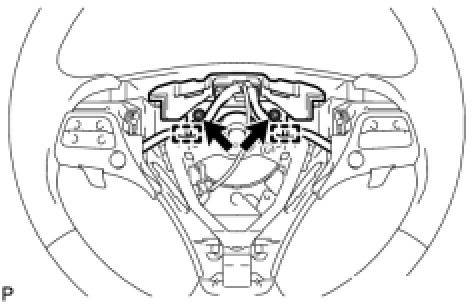

(a) Engage the 2 claws.
(b) Install the lower steering wheel boss cover with the 2 screws.
3. INSTALL STEERING SHAKE DAMPER

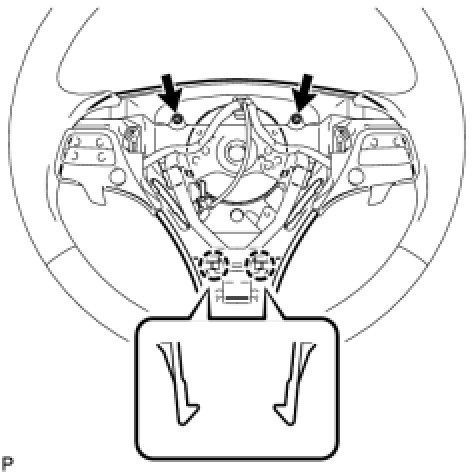

(a) Install the steering shake damper with the 2 screws.
(b) Engage the 2 harness clamps.
4. INSTALL CRUISE CONTROL MAIN SWITCH Installation

5. ADJUST SPIRAL CABLE with STEERING SENSOR Installation

6. INSTALL STEERING WHEEL ASSEMBLY (for 2GR-FSE) Installation

7. INSTALL STEERING WHEEL ASSEMBLY (for 1UR-FSE) Installation

8. INSTALL STEERING PAD Installation

9. INSTALL LOWER NO. 3 STEERING WHEEL COVER
10. INSTALL LOWER NO. 2 STEERING WHEEL COVER
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSPECT STEERING PAD Installation

13. INSPECT SRS WARNING LIGHT
Diagnosis System
