Collision Avoidance Sensor: Testing and Inspection

PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSPECTION





1. INSPECT NO. 1 ULTRASONIC SENSOR

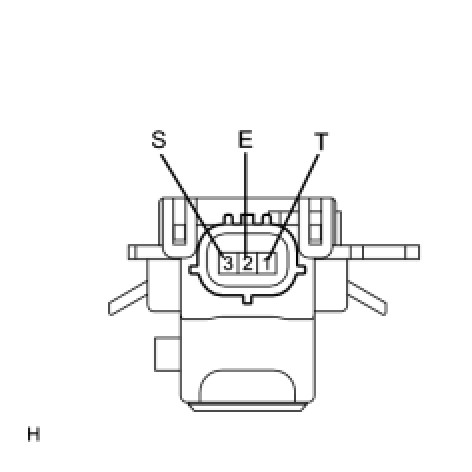

(a) Measure the resistance of the sensor.
Standard resistance:





NOTICE:
Set the tester to the 100 kOhms range before performing the measurement.





2. INSPECT NO. 2 ULTRASONIC SENSOR

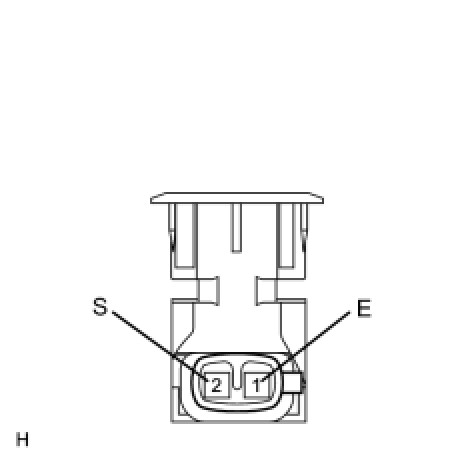

(a) Measure the resistance of the sensor.
Standard resistance:





NOTICE:
Set the tester to the 100 kOhms range before performing the measurement.





3. INSPECT NO. 3 ULTRASONIC SENSOR
(a) Measure the resistance of the sensor.

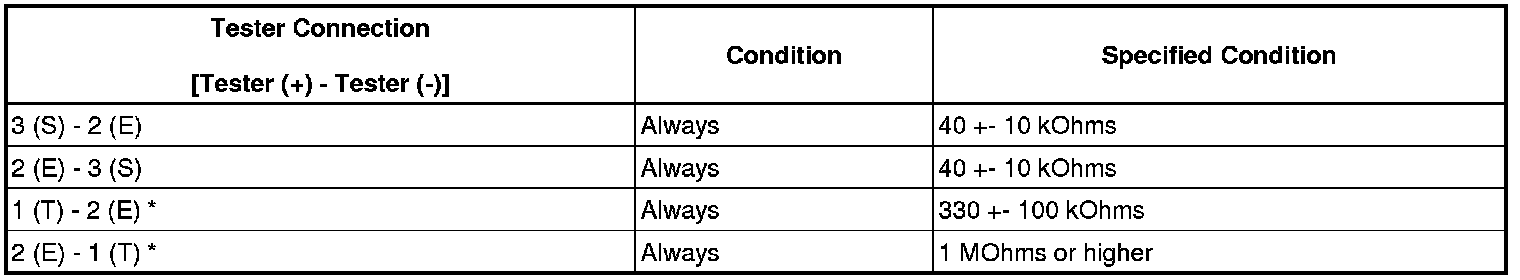

Standard resistance::





NOTICE:
- Set the tester to the 100 kOhms range before performing the measurement.
- *: Measurement values may vary depending on the tester used. If results seem inaccurate, reverse the polarity (+-) and measure again.
