Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT AIRBAG SENSOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE FRONT BUMPER COVER Removal

4. REMOVE HEADLIGHT ASSEMBLY Removal

5. REMOVE FRONT AIRBAG SENSOR

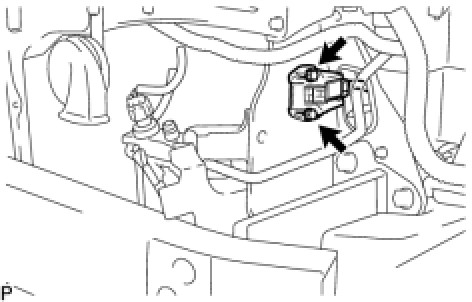

(a) Remove the 2 bolts and front airbag sensor from the body.
(b) Disconnect the connector.
