Problem Symptoms Table

SEAT BELT: SEAT BELT WARNING SYSTEM: PROBLEM SYMPTOMS TABLE

HINT:

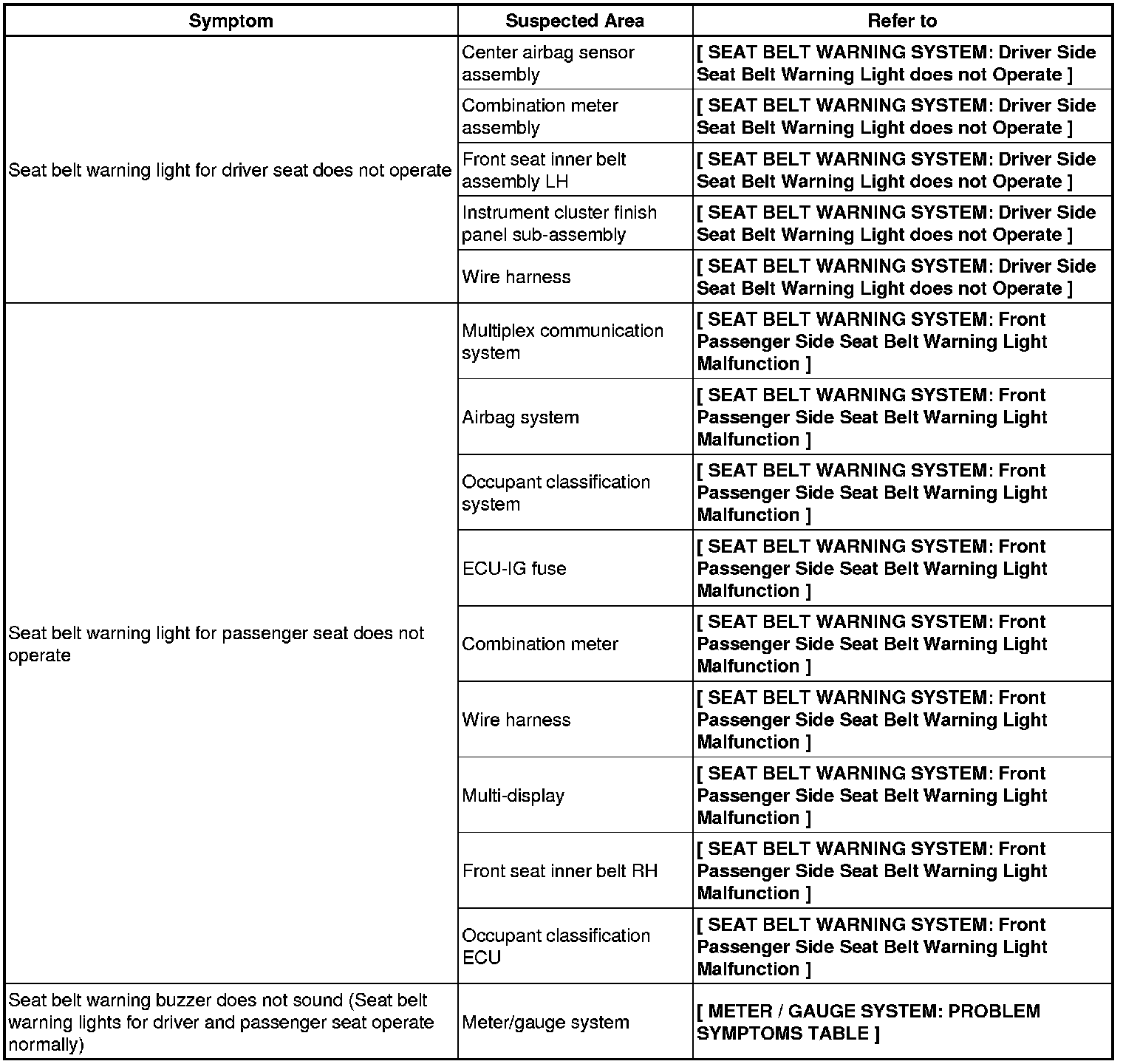

- Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- The combination meter is based on the premise that the supplemental restraint system (SRS) is operating normally. Check the SRS first before troubleshooting the seat belt warning system.

Seat belt warning system
