Installation

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: INSTALLATION

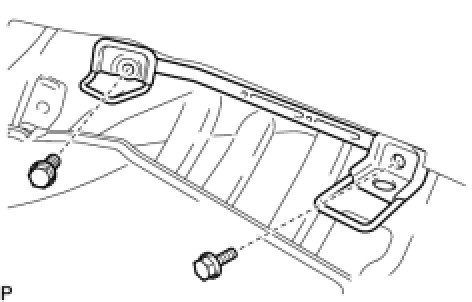

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
(a) Instal the anchor bracket.
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)
2. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
