Seat Occupant Classification Module - Air Bag: Locations

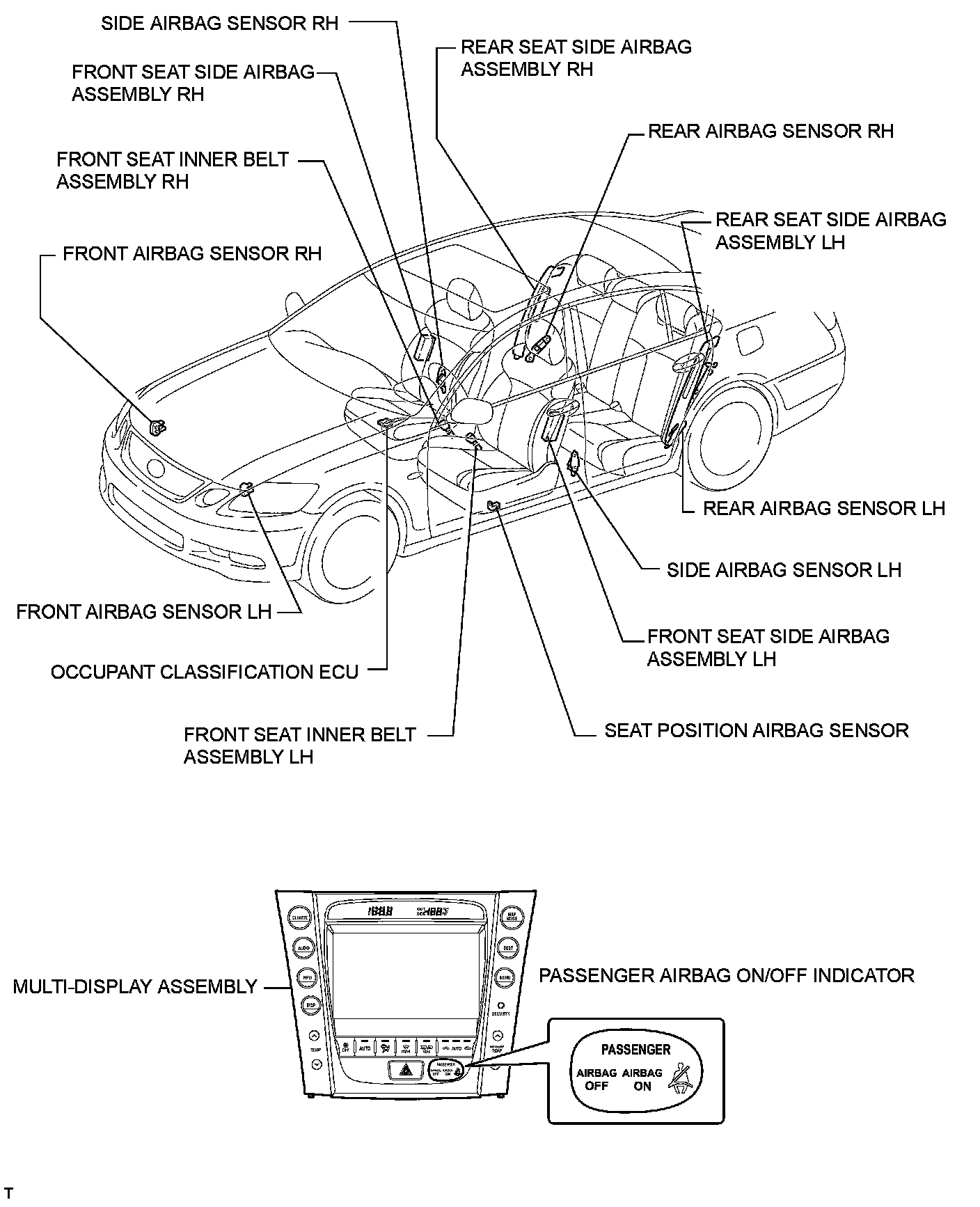

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PARTS LOCATION

ILLUSTRATION
